Bucket Cylinder Hydraulic Hoses and Oil Lines - Extendable Dipperstick

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT325090	1	Oil Line	Rod End Bucket
2	AT325092	1	Oil Line	Head End Bucket
3	AT434306	1	Oil Line	Rod End Extension Cylinder, SUB FOR AT325091
4	AT434308	1	Oil Line	Head End Extension Cylinder, SUB FOR AT325093
5	AT188560	1	Hydraulic Hose	Fabricate
6	AT188560	1	Hydraulic Hose	Fabricate
7	AT188547	1	Hydraulic Hose	Fabricate
8	38H1014	1	Elbow Fitting	-
9	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
10	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
11	AT188558	1	Hydraulic Hose	Rod End Fabricate
12	AT188559	1	Hydraulic Hose	Head End Fabricate
13	T102005	1	Guide	-
14	TY22493	1	Hose Clamp	-
15	AT188563	1	Hydraulic Hose	Head End
16	AT188563	1	Hydraulic Hose	Rod End
17	T188183	2	Angle	-
18	T159848	3	Clamp	-
19	19M7550	10	Cap Screw	M10 X 35
20	14M7274	4	Nut	M10
21	38H1163	1	Adapter Fitting	-
22	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
23	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
24	38H1175	2	Adapter Fitting	-
25	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
26	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
27	24M7239	6	Washer	10.700 X 21 X 2.500 mm
28	AT190712	1	Hydraulic Hose	Fabricate
29	38H1329	1	Adapter Fitting	-
30	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
31	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
32	T202721	1	Bracket	-
33	T159956	2	Clamp	-
34	T160551	1	Clamp	-
35	AT197223	1	Hydraulic Hose	Rod End Extension Cylinder
36	AT197223	2	Hydraulic Hose	Head End Extension Cylinder
37	38H1431	1	Elbow Fitting	-
38	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
39	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
40	T206860	1	Bracket	-
41	T201889	2	Plate	-
42	T200232	4	Hose Clamp	-
43	T200237	4	Plate	-
44	T200233	4	Hose Clamp	-
45	19M8183	8	Cap Screw	M10 X 90
46	14M7167	12	Lock Nut	M10
47	19M7872	4	Cap Screw	M12 X 25

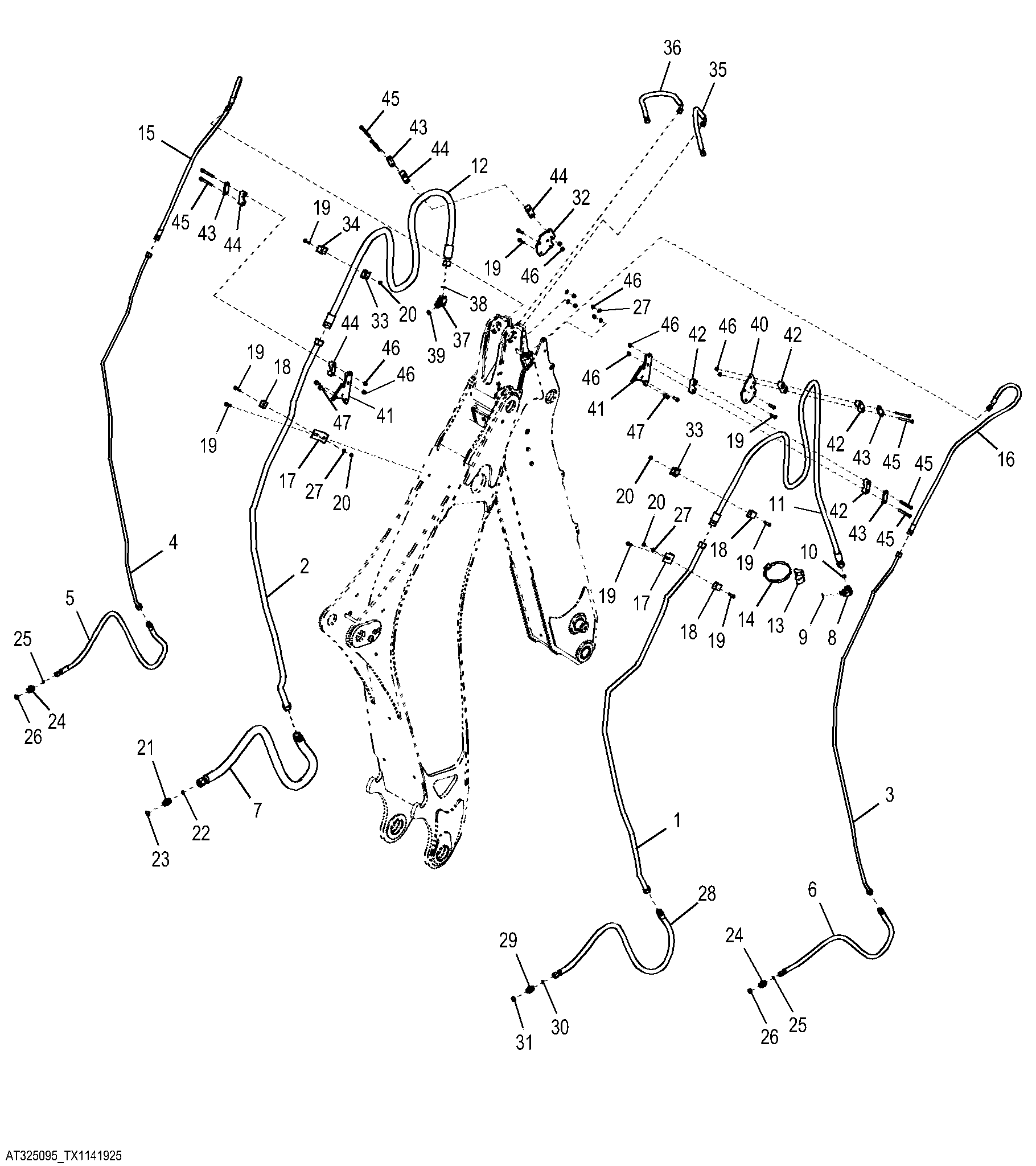

Bucket Cylinder Hydraulic Hoses and Oil Lines - Extendable Dipperstick
