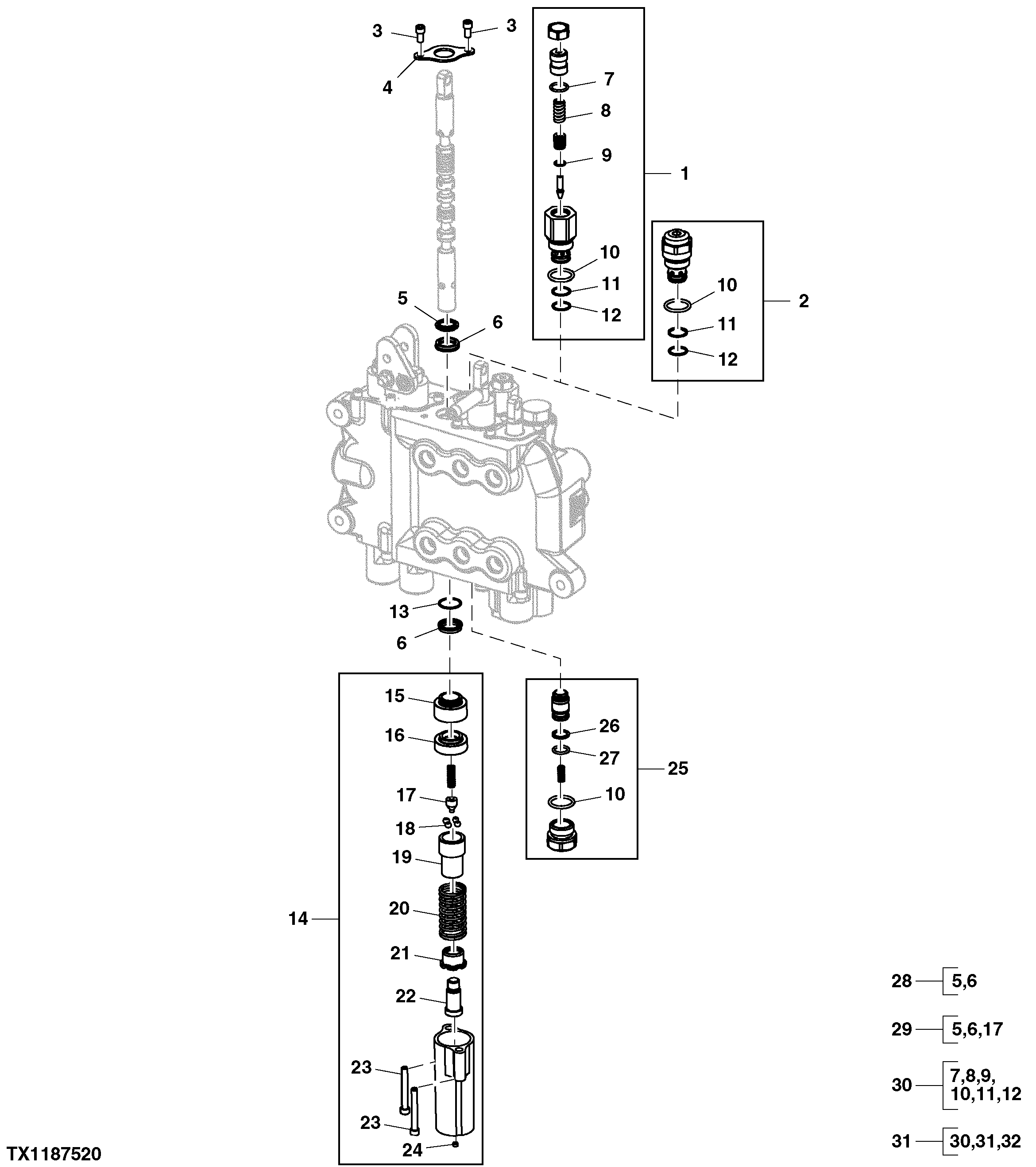

Boom Section, Loader and Stabilizer Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT300803	1	Pressure Relief Valve	344.74 bar (5000 psi), Not Anticavitation
2	AT301128	1	Pressure Relief Valve	344.74 bar (5000 psi), Anti-Cavitation
3	T104773	2	Cap Screw	6.350 X 12.700 mm (1/4" X 1/2")
4	T81524	1	Plate	-
5	-	1	Part 5	ORDER AT280406 OR AT444015
6	-	2	Part 6	ORDER AT280406 OR AT444015
7	-	1	Part 7	ORDER AT300801
8	-	1	Part 8	ORDER AT300801
9	R63548	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	T118681	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
10	T118681	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
11	-	2	Part 12	ORDER AT300801
12	T107887	2	O-Ring	17.170 X 1.778 mm (0.676" X 0.070")
13	-	1	Part 14	ORDER AT280406
14	AT192372	1	Detent	-
15	T152404	1	Sleeve	-
16	T152401	1	Sleeve	-
17	T118715	1	Cam	-
18	T81535	4	Ball	-
19	T118708	1	Valve Seat Insert	-
20	T118884	1	Spring	-
21	T118709	1	Valve Seat Insert	-
22	T118711	1	End	-
23	T118712	2	Screw	-
24	T118799	1	Filter	-
25	AT169373	1	Check Valve	-
26	-	1	Part 27	ORDER AT314538 OR AT314539
27	-	1	Part 28	ORDER AT314538 OR AT314539
28	AT444015	1	Seal Kit	Spool
29	AT280406	1	Seal Kit	Spool
30	AT300801	1	Seal Kit	Relief Valve
31	AT314538	1	Seal Kit	22.23 mm (0.875 in), Relief Valve Seal Kit
31	AT314539	1	Seal Kit	26.99 mm (1.0625 in), Relief Valve Seal Kit

Boom Section, Loader and Stabilizer Valve

Нет текстового описания
