Auxiliary Equipment Hydraulic Hoses and Oil Lines (Standard Dipperstick)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT325096	1	Oil Line	-
2	AT325097	1	Oil Line	-
3	T190703	6	Half Clamp	-
4	AT195978	1	Hydraulic Hose	Fabricate
5	AT195979	1	Hydraulic Hose	Fabricate
6	38H1163	1	Adapter Fitting	-
7	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
8	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
9	38H1194	1	Adapter Fitting	-
10	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
11	R29936	1	O-Ring	-
12	AT188570	1	Hydraulic Hose	-
13	AT188570	1	Hydraulic Hose	-
14	03M7193	4	Bolt	M10 X 35
15	14M7274	4	Nut	M10
16	19M8499	1	Cap Screw	M10 X 60
17	19M7875	1	Cap Screw	M10 X 70
18	24M7239	6	Washer	10.700 X 21 X 2.500 mm
19	28H3389	1	Spacer	0.423" X 0.675" X 1"
20	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
21	T205636	1	Bracket	-
22	T205637	1	Bracket	-
23	T163702	2	Reducer	-
24	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
25	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
26	R27175	2	Drain Plug	INCLUDES U12547
27	T78707	2	Nut	-
28	T200233	4	Hose Clamp	-
29	T200237	2	Plate	-
30	19M8990	2	Cap Screw	M10 X 150
31	19M8183	2	Cap Screw	M10 X 90
32	14M7167	2	Lock Nut	M10

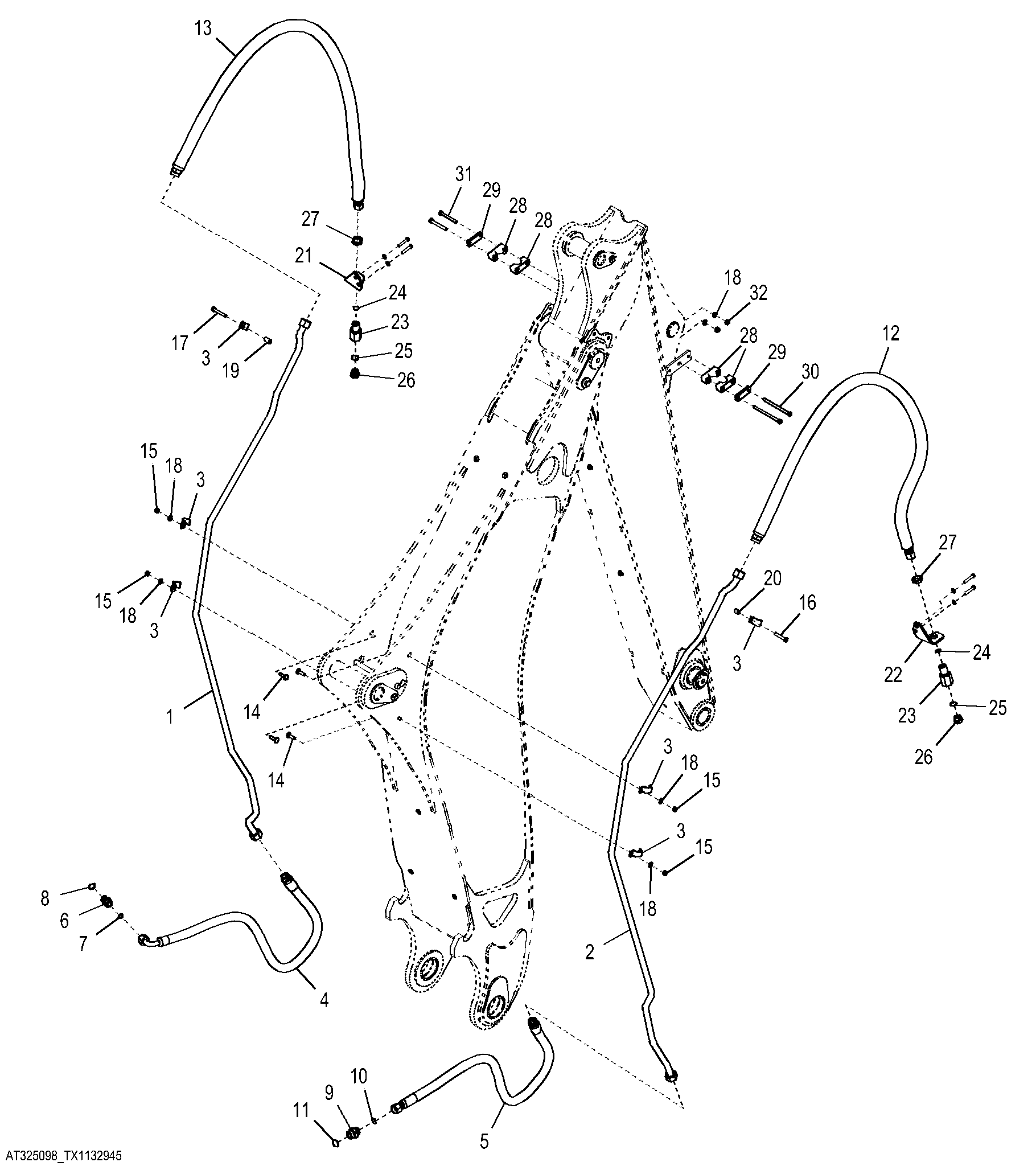

Auxiliary Equipment Hydraulic Hoses and Oil Lines (Standard Dipperstick)
