Auxiliary Equipment Hydraulic Hoses and Oil Lines (Extendable Dipperstick)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT325096	1	Oil Line	-
2	AT325097	1	Oil Line	-
3	T190703	6	Half Clamp	-
4	AT195978	1	Hydraulic Hose	Fabricate
5	AT195979	1	Hydraulic Hose	Fabricate
6	38H1194	1	Adapter Fitting	-
7	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
8	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
9	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
10	28H3389	1	Spacer	0.423" X 0.675" X 1"
11	19M7875	1	Cap Screw	M10 X 70
12	19M8499	1	Cap Screw	M10 X 60
13	03M7193	4	Bolt	M10 X 35
14	24M7239	14	Washer	10.700 X 21 X 2.500 mm
15	14M7274	10	Nut	M10
16	AT188572	1	Hydraulic Hose	-
17	AT188572	1	Hydraulic Hose	-
18	T200233	8	Hose Clamp	-
19	T200237	4	Plate	-
20	19M8183	8	Cap Screw	M10 X 90
21	14M7167	8	Lock Nut	M10
22	T35829	2	Clamp	-
23	19M7662	2	Cap Screw	M10 X 30
24	T200631	1	Hose Guard	-
24	H77698	2	Tie Band	-
25	H77698	2	Tie Band	-
25	T200631	1	Hose Guard	-
26	T205636	1	Bracket	-
27	T205637	1	Bracket	-
28	19M7550	4	Cap Screw	M10 X 35
29	T163702	2	Reducer	-
30	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
31	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
32	R27175	2	Drain Plug	INCLUDES U12547
33	T78707	2	Nut	-

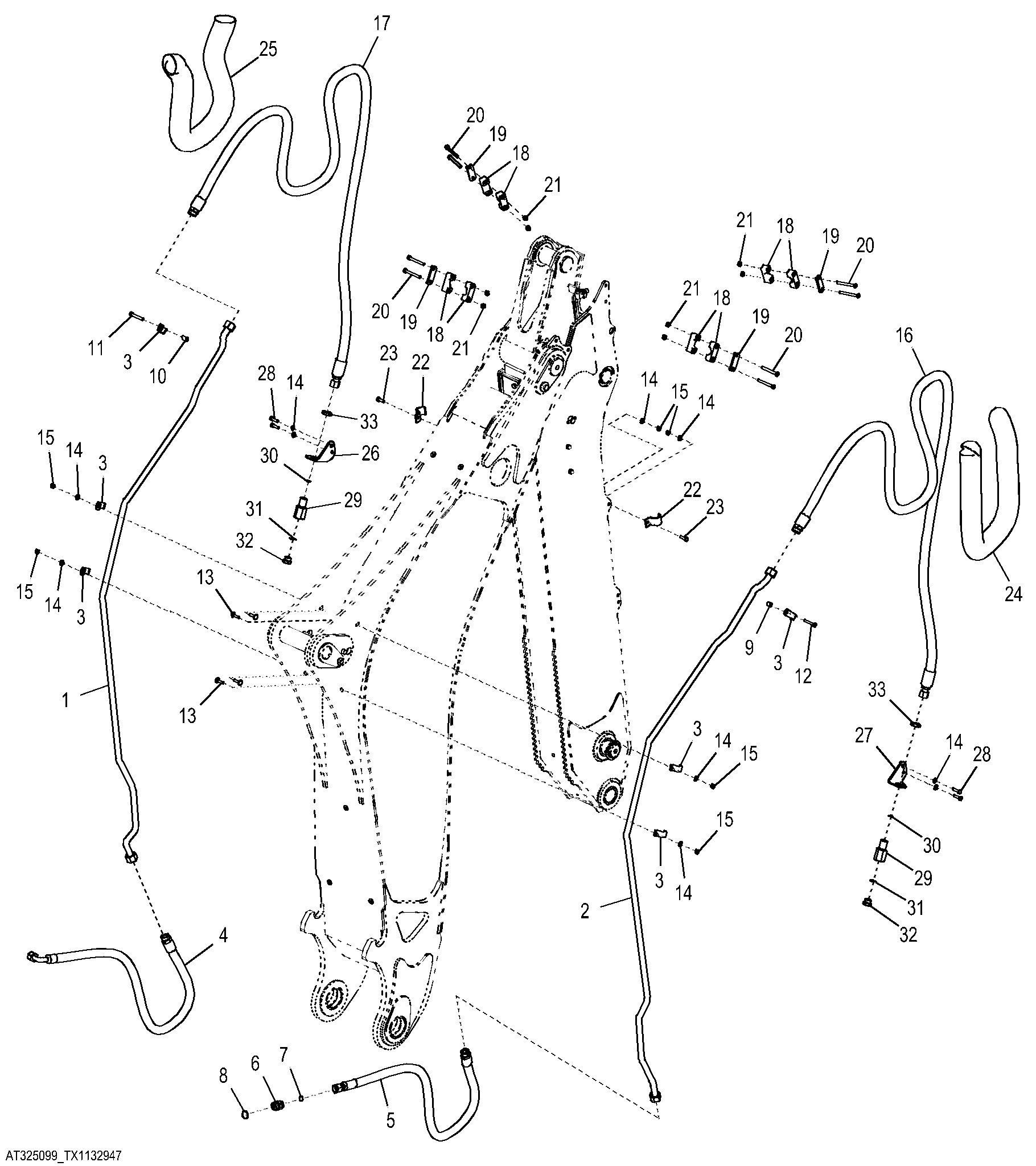

Auxiliary Equipment Hydraulic Hoses and Oil Lines (Extendable Dipperstick)
