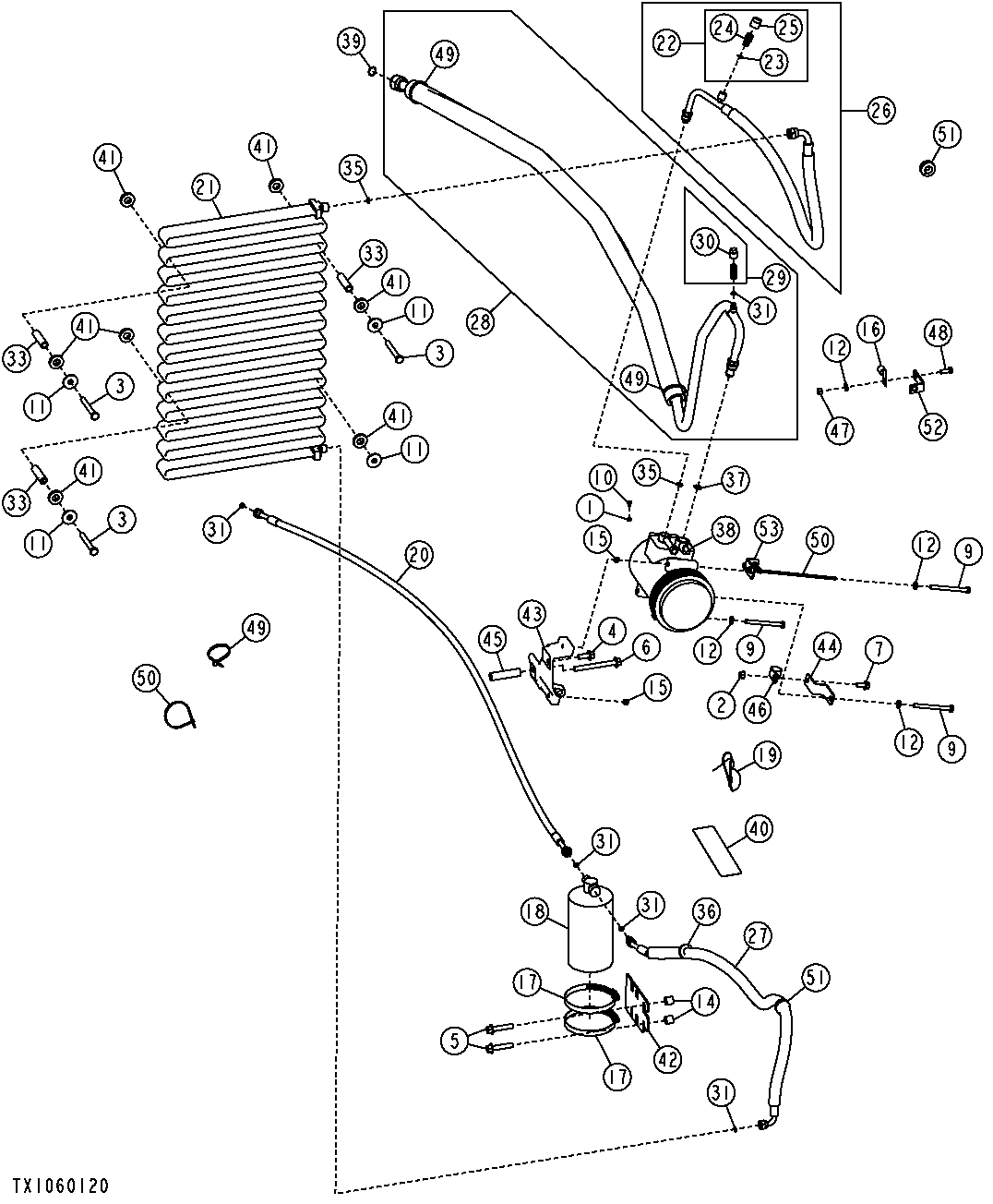

Air Conditioning System (Engine 6068HT067)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H316	1	Lock Washer	0.216"
2	14M7298	2	Flange Nut	M8
3	19M8081	3	Cap Screw	M10 X 80, SUB FOR 19M7328
4	19M7785	1	Screw	M10 X 25
5	19M7806	2	Screw	M10 X 50
6	R136508	1	Screw	M10 X 95, SUB FOR 19M7812
7	19M7866	1	Screw	M8 X 20
9	19M8539	3	Cap Screw	M8 X 90
10	21M7283	1	Screw	M5 X 8
11	24M7101	4	Washer	11 X 34 X 3 mm
12	24M7238	4	Washer	8.700 X 17 X 2 mm
14	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
15	34M7189	2	Spring Pin	11 X 8 mm
16	AH89557	1	Clip	-
17	AR21842	2	Clamp	-
18	AT162848	1	Receiver-Dryer	-
19	AT190658	1	AC Compressor WRG Harness	-
20	AT195409	1	Refrigerant Hose	-
21	AT346660	1	Vapor Condenser	-
22	AT178930	1	Hydraulic Cylinder Port	High Side
23	A3917R	1	O-Ring	-
24	AT178931	1	Hydraulic Cylinder Port	-
25	T160938	1	Cap	-
26	AT348929	1	Refrigerant Hose	-
27	AT348930	1	Refrigerant Hose	-
28	AT353919	1	Refrigerant Hose	-
29	AT181530	1	Flow Control Hyd. Valve	-
30	T162557	1	Cap	-
31	R10093	5	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
33	T238043	3	Bushing	10.335 X 15.875 X 60.800 mm (0.407" X 5/8" X 2.394"), SUB FOR L3483N
35	R113050	2	O-Ring	10.820 X 1.778 mm (0.426" X 0.070")
36	R115350	1	Grommet	-
37	R33259	1	O-Ring	13.995 X 1.778 mm (0.551" X 0.070")
38	TY6764	1	Compressor	SUB FOR RE46609
38	SE501462	1	Compressor Reman	REMAN FOR RE46609 OR TY6764
39	T143169	1	O-Ring	17.170 X 1.778 mm (0.676" X 0.070")
40	T145560	1	Label	-
41	T158424	8	Washer	-
42	T212352	1	Bracket	-
43	T223616	1	Bracket	-
44	T241825	1	Bracket	-
45	T242165	1	Spacer	-
46	T78787	1	Clamp	-
47	14M7273	1	Nut	M8
48	19M7881	1	Screw	M8 X 20
49	R44302	3	Tie Band	-
50	H77698	2	Tie Band	-
51	R36235	2	Grommet	-
52	T151959	1	Angle	-
53	R73975	1	Bracket	-

Air Conditioning System (Engine 6068HT067)
