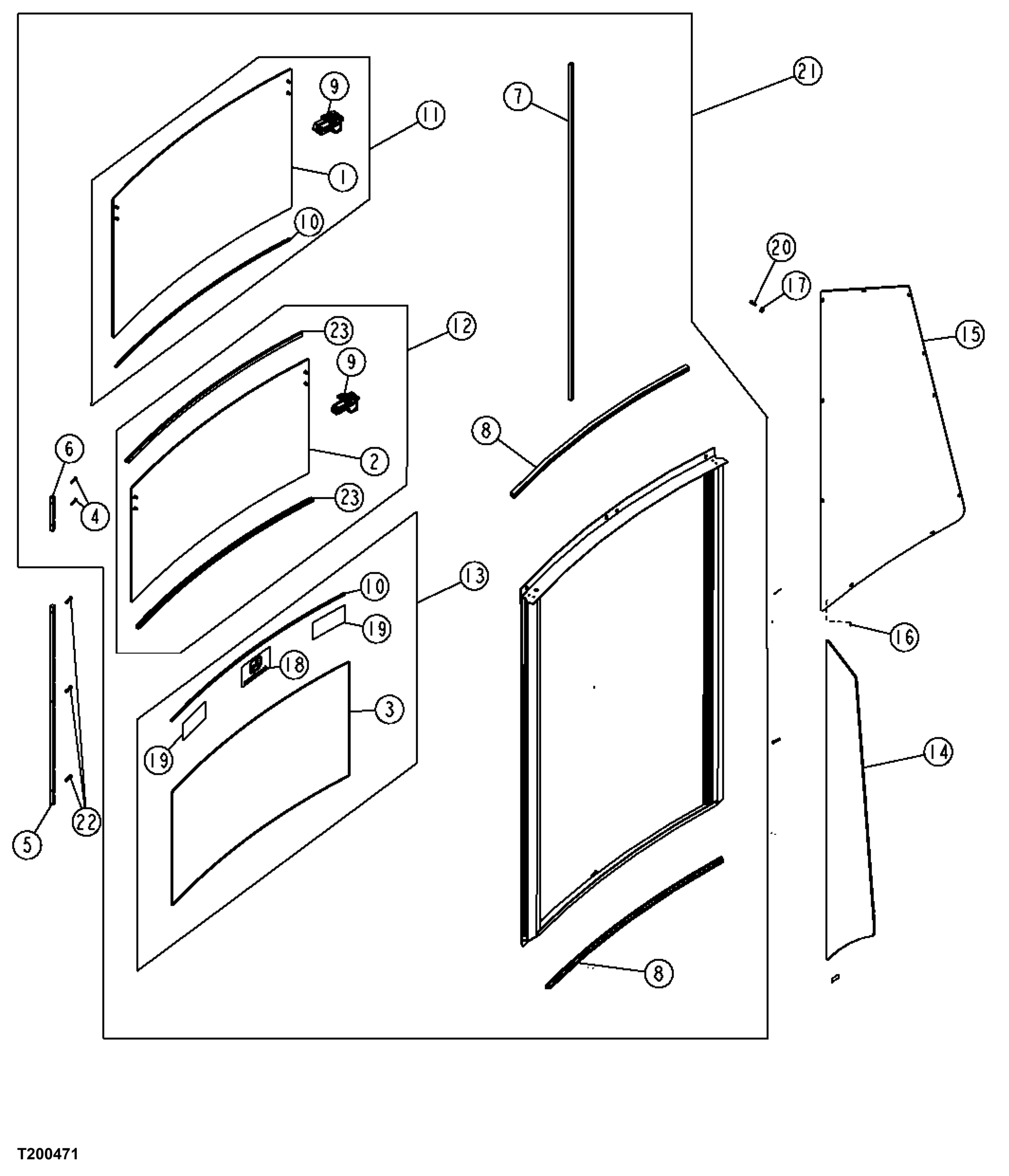

Sliding Rear Windows and Corner Windowpanes (920857 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T242700	1	Windowpane	SUB FOR T201955
2	T242699	1	Windowpane	SUB FOR T201954
3	T201953	1	Windowpane	-
4	T208077	10	Screw	SUB FOR T201954
5	T373563	2	Frame	SUB FOR T308406
6	T201956	2	Frame	-
7	T201958	2	Weatherstrip	-
8	AT356291	2	Seal	SUB FOR T201968
9	AT356880	1	Latch	Includes Hardware And (1) Latch, SUB FOR AT302817
9	21H1395	2	Screw	0.164" X 2", Top Window
9	21H1367	2	Screw	0.164" X 1-3/8", Middle Window
9	T166371	2	Grommet	-
9	T223289	2	Insert	0.164 in.
10	AT505598	2	Seal	SUB FOR AT307770; ALSO ORDER AT505599
11	AT505595	1	Window	Upper, SUB FOR AT354597
12	AT505596	1	Window	Middle, SUB FOR AT354595
13	AT505597	1	Window	Lower, SUB FOR AT302813
14	T164705	1	Windowpane	Right Rear Corner
15	T164708	1	Windowpane	Left Rear Corner
16	T135675	22	Stand-Off	-
17	24M7139	6	Washer	6.400 X 18 X 1.600 mm
18	JD5750	1	Label	-
19	T183768	1	Label	-
20	19M7775	6	Screw	M6 X 16, (SUB FOR 19M7077 AND 19M7862, APPL)
21	AT354596	1	Window	CA, SUB FOR AT302812; ALSO ORDER (2) T201957, (6) T208077
22	T208077	6	Screw	-
23	AT505599	2	Seal	SUB FOR AT307770; ALSO ORDER AT505598

Sliding Rear Windows and Corner Windowpanes (920857 - )

Нет текстового описания
