Sliding Rear Windows and Corner Windowpanes ( - 920856)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT302812	1	Window	(SUB FOR AT184089) (ALSO ORDER (2) T308406 AND (6) T208077) (CA)
2	T164698	8	Screw	-
3	AT190194	1	Guide	Bottom Left Window
4	AT190193	1	Guide	Top Left Window
5	T166368	4	Screw	-
6	AT309347	1	Latch	LH RH Does Not Include Hardware, (SUB FOR AT196391)
7	T165561	2	Spacer	-
8	T166371	8	Grommet	-
9	T187765	8	Insert	-
10	AT190191	1	Guide	Top Right Window
11	-	1	Part 11	(ONE KIT SERVICES MIDDLE WINDOW. TWO KITS SERVICE THREE) (ORDER AT190490)
12	-	1	Part 12	(ONE KIT SERVICES MIDDLE WINDOW. TWO KITS SERVICE THREE) (ORDER AT190490)
13	-	1	Part 13	(ONE KIT SERVICES MIDDLE WINDOW. TWO KITS SERVICE THREE) (ORDER AT190490)
14	AT190490	1	Seal Kit	-
15	AT189176	1	Window	Upper
16	T166369	4	Screw	-
17	AT190192	1	Guide	Bottom Right Window
18	AT189175	1	Window	Middle
19	JD5750	1	Label	Leaping Deere
20	T183768	2	Label	Warning
21	AT187036	1	Window	Lower
22	T166881	1	Weatherstrip	-
23	T187780	1	Isolator	-
24	T185378	2	Nut	-
25	T185377	2	Screw	-
26	T135675	20	Stand-Off	-
27	T164705	1	Windowpane	Right Rear Corner
28	T164708	1	Windowpane	Left Rear Corner
29	19M7775	6	Screw	M6 X 16
30	24M7139	6	Washer	6.400 X 18 X 1.600 mm

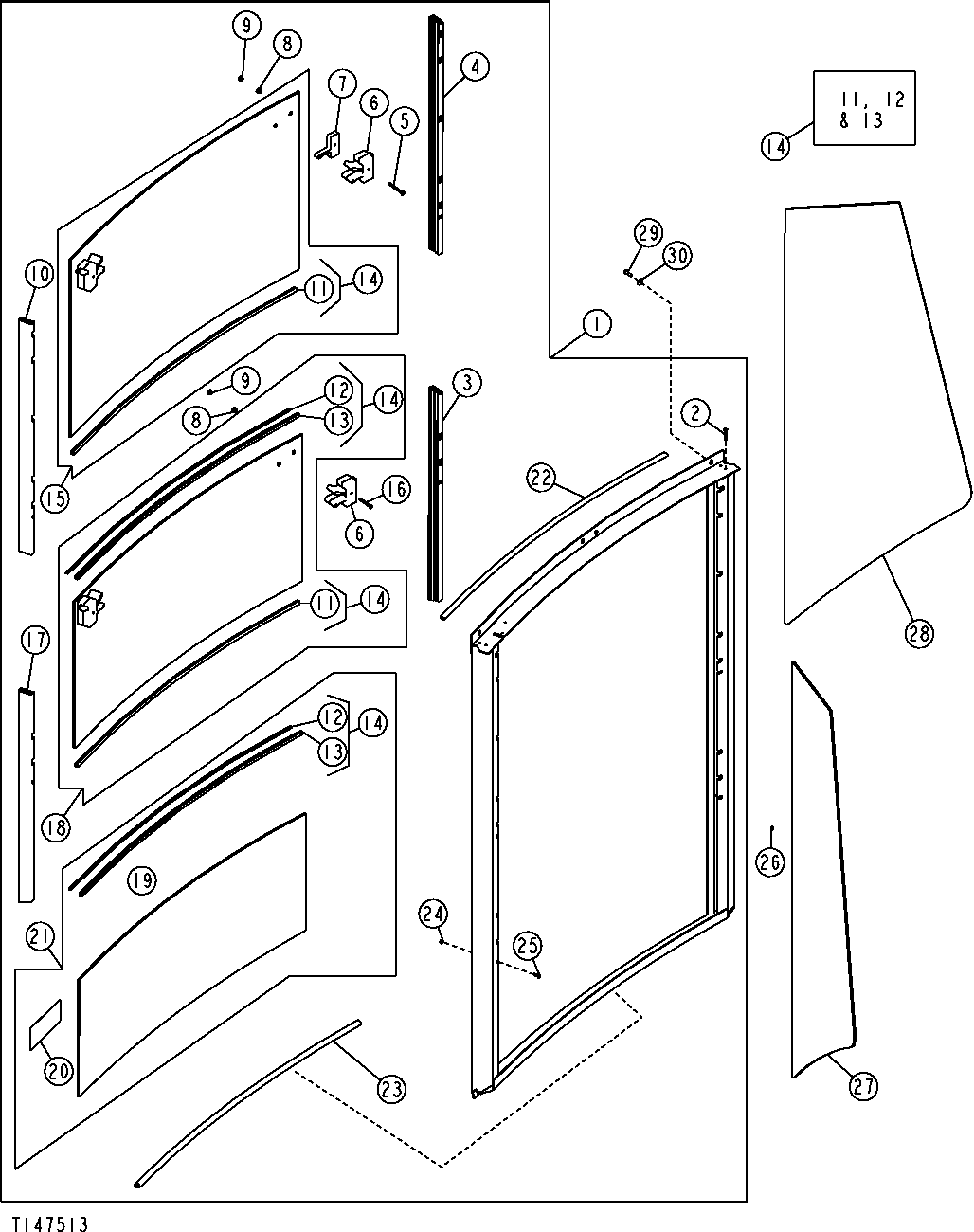

Sliding Rear Windows and Corner Windowpanes ( - 920856)
