Selective Flow Solenoid Control Valve Kit (951375 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	5	Nut	M10
2	19M7742	1	Cap Screw	M10 X 65
3	19M8183	3	Cap Screw	M10 X 90
4	24M7239	9	Washer	10.700 X 21 X 2.500 mm
5	38H1067	1	Adapter Fitting	-
6	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	38H1163	1	Adapter Fitting	-
8	T77858	3	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
9	U12547	3	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
10	38H1194	1	Adapter Fitting	-
11	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
12	38H1309	1	Adapter Fitting	-
13	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
14	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
15	38H1437	1	Tee Fitting	-
16	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
17	AT117631	1	Check Valve	-
18	AT171681	1	Check Valve	Shuttle
19	AT187797	1	Wiring Harness	-
20	AT189078	1	Elbow Fitting	-
21	AT280804	1	Bracket	-
22	19M8600	2	Cap Screw	M10 X 50
23	AT300928	1	Plate	-
24	AT156431	1	Wiring Harness	-
25	AT175604	1	Switch	-
25	T162380	1	Bulb	-
26	AT82210	1	Switch	-
27	AT323347	1	Selective Control Valve	-
28	AT75769	1	Relay	-
29	H141836	1	Bushing	12.522 X 17.145 X 25.400 mm (0.493" X 0.675" X 1")
30	R36636	1	Drain Plug	-
31	R46667	1	Clamp	-
32	T150768	1	Nut	-
33	T162238	1	Grommet	-
34	T184345	1	Rivet	-
35	AT195612	1	Hydraulic Hose	30.1752" X 1676 mm (66") X 30.1752", Fabricate
36	AT195613	1	Hydraulic Hose	17.4752" X 768 mm (30-1/4") X 17.4752", Fabricate
37	AT195614	1	Hydraulic Hose	17.4752" X 749 mm (29-1/2") X 17.4752", Fabricate
38	38H1435	1	Elbow Fitting	-
39	T149199	1	Label	-
40	AT309658	1	Kit	Whole Goods

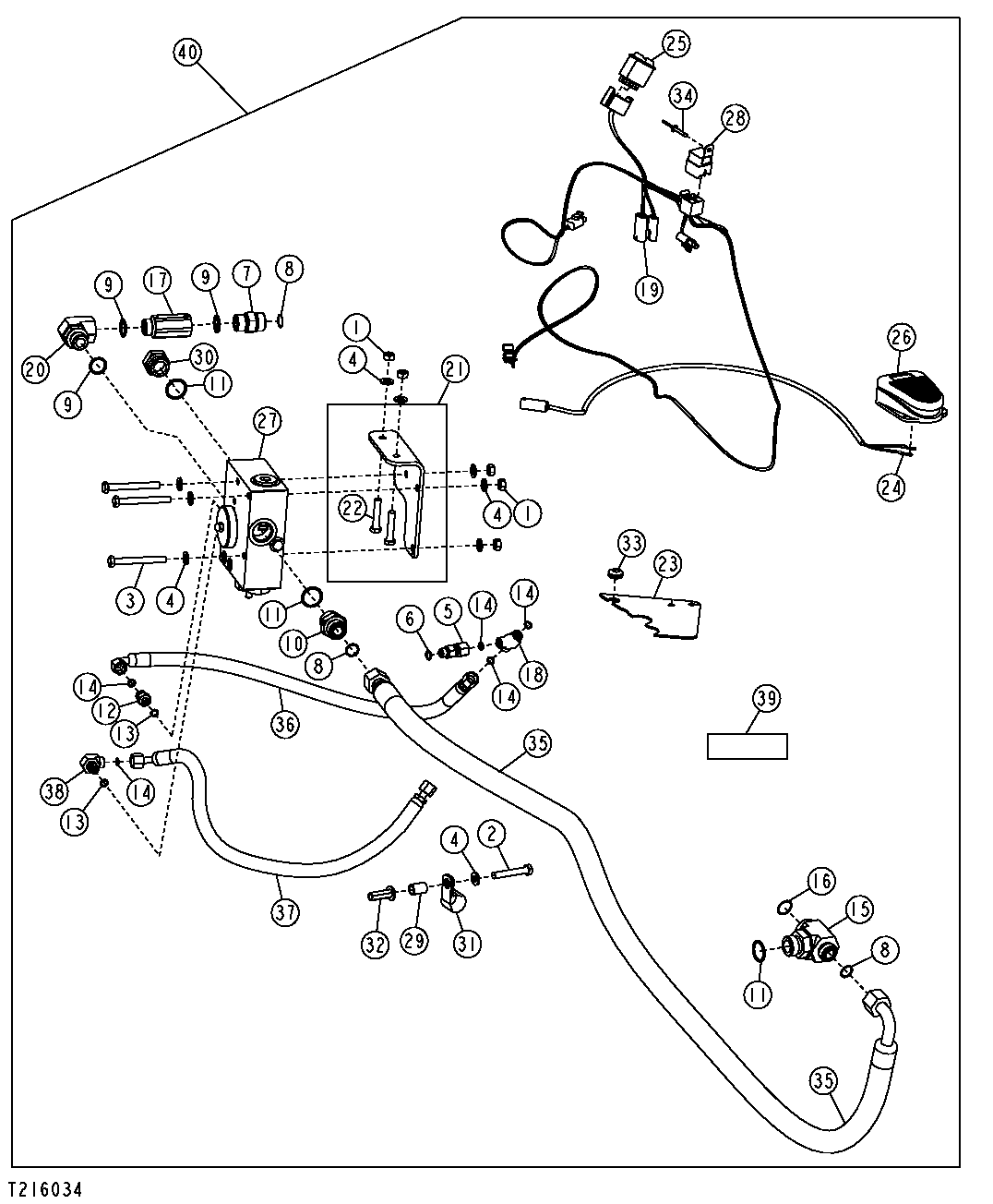

Selective Flow Solenoid Control Valve Kit (951375 - )

Нет текстового описания
