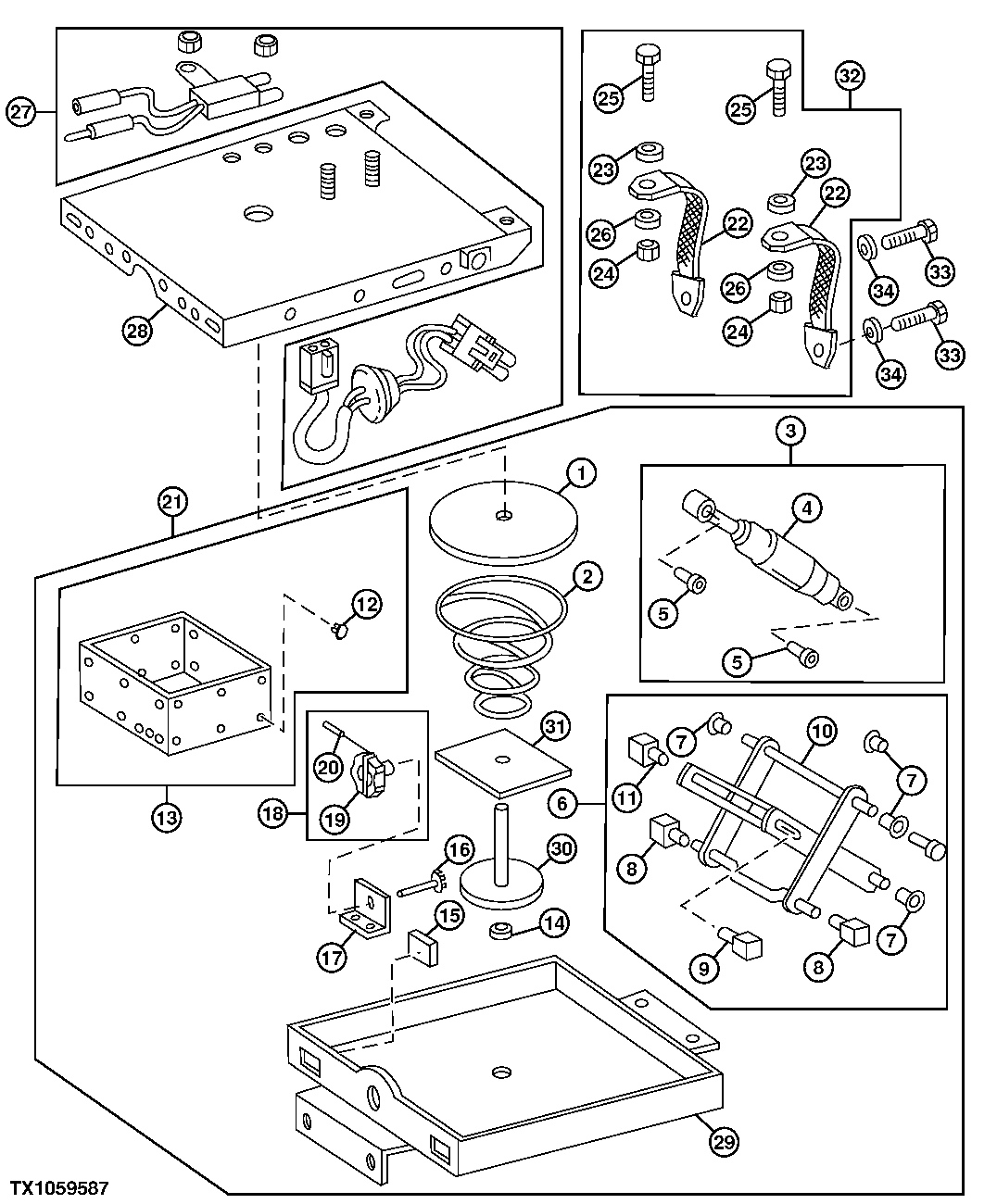

Seat Suspension Component Parts and Shock Absorber Kit (Air Suspension)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T55208	1	PAD	-
2	AT125801	1	Spring	Regular
2	T160315	1	Spring	Heavy Duty
3	AT175436	1	Seat Shock Absorber Kit	Shock Absorber
4	-	1	Part 5	Shock
5	T55222	2	Bushing	Shock Absorber
6	AT106397	1	Bearing Kit	Bearing /Bushing
7	-	4	Part 8	-
8	-	2	Part 9	-
9	-	1	Part 10	-
10	-	1	Part 11	Scissor
11	-	1	Part 12	-
12	T63798	25	Plug	Fastener
13	AT179699	1	Boot	Vinyl
14	T158481	1	Washer	-
15	T55224	2	Bumper	-
16	AT175353	1	Gear	-
17	T55214	1	Angle	-
18	AT125805	1	Seat Knob Kit	Adjusting Knob
19	AT125829	1	Knob	-
20	34H266	1	Spring Pin	5/32" X 1", Adjusting Knob
21	AT407315	1	Seat Kit	Vinyl Components On Separate Page
21	AT407317	1	Seat Kit	Cloth Components On Separate Page
21	AT186150	1	Kit	NLA, ORDER AT407315 OR AT407317
22	-	2	Part 25	Tether
23	24H1309	2	Washer	13/32" X 1-1/16" X 0.120", Tether, (SUB FOR M1340T THIS APPICATION)
24	M47031	2	Lock Nut	9.525 mm (3/8"), Tether
25	19H2676	2	Cap Screw	3/8" X 1", Tether
26	24H1305	2	Washer	13/32" X 13/16" X 0.065", Tether
27	AT304775	1	Kit	Reference DTAC Solution 78585 Forward Seat Position Switch 2 Black Wires 28.5 in., SUB FOR AT192687
27	AT304776	1	Switch	Reference DTAC Solution 78585 Rear Seat Position With Pilot Controls 2 Gray Wires 28.5 in., SUB FOR AT196793, APPL
27	AT304776	1	Switch	Reference DTAC Solution 78585 Rear Seat Position Switch With Pilot Controls, INCLUDES AT196793
27	AT179694	1	Swivel Kit	Reference DTAC Solution 78585 Seat Position Switch 2 Black Wires 8 in.
28	-	1	Part 34	Upper
29	-	1	Part 35	Lower
30	-	1	Part 36	Large Base
31	-	1	Part 37	Spring Support
32	AT179693	1	Strap Kit	Tether Belt Set
33	19M7402	4	Cap Screw	M10 X 25
34	24M7239	4	Washer	10.700 X 21 X 2.500 mm

Seat Suspension Component Parts and Shock Absorber Kit (Air Suspension)
