Quick Coupler Multi-Purpose Bucket, Cylinders and Hydraulic Oil Lines

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	9	O-Ring	-
2	R26448	2	O-Ring	-
3	38H1416	1	Fitting	-
4	38H1175	2	Adapter Fitting	-
5	38H1175	1	Adapter Fitting	-
6	U12547	1	O-Ring	-
7	-	1	Part 7	ORDER AT363778
8	11M7030	2	Cotter Pin	5 X 40 mm
9	19H3239	2	Cap Screw	3/8" X 1-1/4"
10	19H3552	3	Cap Screw	5/16" X 1-1/2"
11	24H1138	2	Washer	1-1/16" X 2" X 0.134"
12	24M7239	2	Washer	10.700 X 21 X 2.500 mm
13	T162396	2	Lubrication Fitting	-
14	38H1031	1	Tee Fitting	-
15	T188879	1	Cap	-
16	38H1314	1	Elbow Fitting	-
17	38H1474	2	Reducer	-
18	T188880	1	Cap	-
19	38H1521	1	Elbow Fitting	-
20	AH210737	2	Hydraulic Cylinder	-
21	AT189822	2	Hydraulic Hose	Fabricate
22	AT190701	2	Hydraulic Hose	13/16" X 520 mm (20-1/2") X 13/16", Fabricate
23	AT190900	2	Pin	-
24	-	1	Part 24	ORDER AT363778
25	19H2106	2	Cap Screw	7/16" X 2-3/4"
26	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
27	T128539	1	Dura-Max Cutting Edge	-
28	T128533	4	Bushing	-
29	T166433	2	Bushing	-
32	09H1776	8	Bolt	5/8" X 1-3/4"
33	14H1039	8	Nut	5/8"
34	24M7241	8	Washer	17 X 34 X 4 mm
36	KV22121	1	Label	Worksite Pro™
37	T143804	1	Cutting Edge	Double -Bevel Flat (DBF)
38	JD7844	2	Lubrication Fitting	SUB FOR JD7797
39	K40006	2	Lock Nut	11.125 mm (7/16")
40	T167059	2	Pin	-
41	AT311142	2	Tube	-
42	38H1354	2	Tube Nut	-
43	H121168	3	Plate	-
44	H135156	6	Clamp	-
45	JD7844	2	Lubrication Fitting	-
46	T191318	2	Pin Fastener	-
47	T54568	2	Lock Nut	9.525 mm (3/8")
48	AT310035	2	Hydraulic Hose	Fabricate
49	AT312470	1	Hyd. Quick-Connect Coupler	-
50	KV14216	1	Hyd. Quick-Connect Coupler	-
51	T148182	1	Ring	-
52	T160759	1	Label	Bucket Level Indicator
53	AT363778	1	Loader Bucket	NLA SUB FOR AT308984

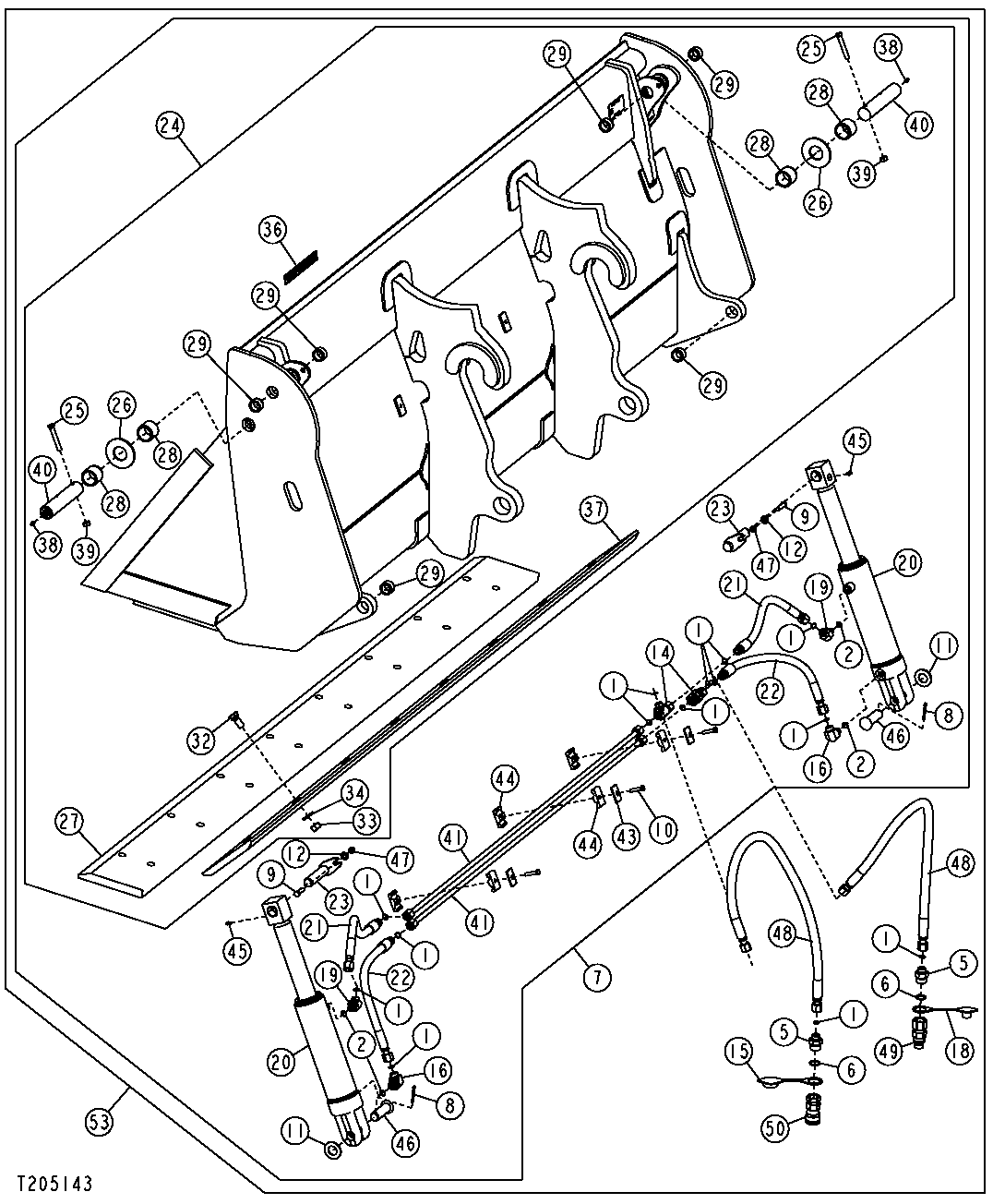

Quick Coupler Multi-Purpose Bucket, Cylinders and Hydraulic Oil Lines
