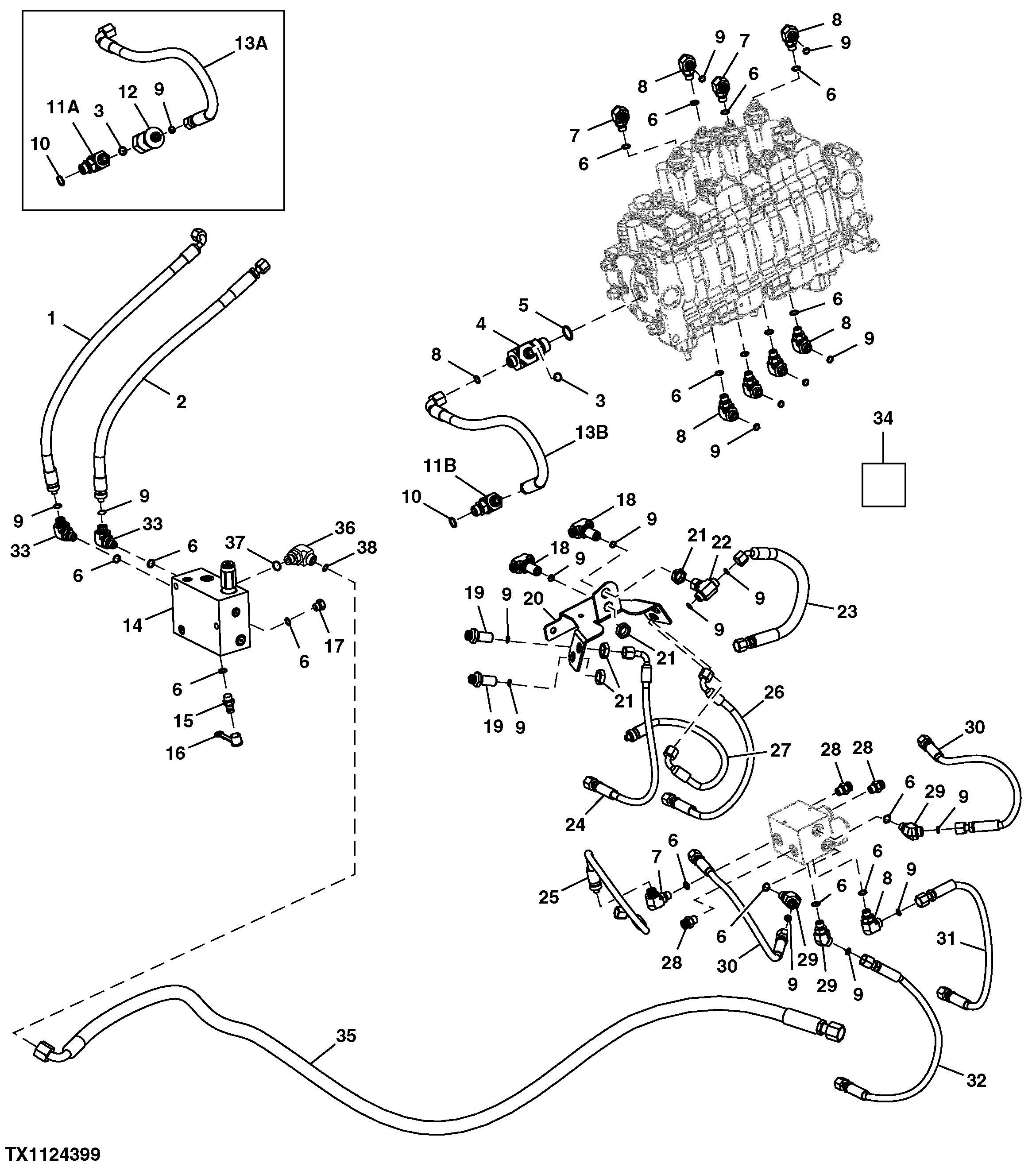

Pilot Control Hydraulics With Selector Valve

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT193365	1	Seal Kit	-06, STC Repair
1	AT199688	1	Hydraulic Hose	Fabricate
2	AT199686	1	Hydraulic Hose	Fabricate
2	AT193365	1	Seal Kit	-06, STC Repair
3	T77857	3	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
4	38H1374	1	Tee Fitting	-
5	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
6	R26448	17	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	62H1011	3	Adapter Fitting	SUB FOR AT187669; INCLUDES R26448
8	38H1004	7	Elbow Fitting	-
9	T77613	19	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
12	AT183869	1	Filter Element	USE WITH AT197769
14	-	1	Part 18	SUB AT306550, ALSO ORDER AT187669, AT317349, 62H1042, AND T77613. AT197769, NLA
14	AT306550	1	Flow Control Hyd. Valve	-
15	AH125760	1	Hyd. Quick-Connect Coupler	-
16	R77175	1	Cover	-
17	R27218	1	Fitting Plug	-
18	AT199496	2	Tee Fitting	-
19	AT199495	4	Fitting	-
20	T190976	1	Bracket	-
21	T81029	6	Nut	-
22	38H1038	1	Tee Fitting	-
23	AT199685	1	Hydraulic Hose	Fabricate
24	AT300533	1	Hydraulic Hose	Fabricate
25	AT199705	1	Hydraulic Hose	Without Selector Valve Fabricate
25	AT280220	1	Hydraulic Hose	-
26	AT199704	1	Hydraulic Hose	Fabricate
27	AT199705	1	Hydraulic Hose	Without Selector Valve Fabricate
27	AT280221	1	Hydraulic Hose	STC
28	62H1001	3	Adapter Fitting	SUB FOR AT187666
29	38H1045	3	Elbow Fitting	-
30	AT196046	2	Hydraulic Hose	Fabricate
31	AT196056	1	Hydraulic Hose	Fabricate
32	AT196055	1	Hydraulic Hose	Fabricate
33	62H1011	2	Adapter Fitting	STC, SUB FOR AT187669; INCLUDES R26448
34	AT193365	1	Seal Kit	-06, STC Repair
34	AT193366	1	Seal Kit	-08, STC Repair
35	AT325817	1	Hydraulic Hose	Fabricate
36	38H1160	1	Adapter Fitting	-
37	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
38	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11A	38H1005	1	Elbow Fitting	-
11B	62H1011	1	Adapter Fitting	SUB FOR AT187669; INCLUDES R26448
13A	AT199706	1	Hydraulic Hose	Fabricate
13B	AT317349	1	Hydraulic Hose	Fabricate

Pilot Control Hydraulics With Selector Valve
