Multi-Purpose Bucket, Cylinder and Hydraulic Oil Lines

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT188053	1	Loader Bucket	(WHOLE GOODS)
2	T166433	2	Bushing	-
3	AT190880	2	Cylinder	-
3	AH210737	2	Hydraulic Cylinder	-
4	JD7797	2	Lubrication Fitting	-
4	JD7844	2	Lubrication Fitting	-
5	19H3239	2	Cap Screw	3/8" X 1-1/4"
6	AT190900	2	Pin	-
7	24M7239	2	Washer	10.700 X 21 X 2.500 mm
8	T54568	2	Lock Nut	9.525 mm (3/8")
9	AT189822	2	Hydraulic Hose	Fabricate
10	T77857	11	O-Ring	-
11	AT189694	2	Tube	-
12	H135156	6	Clamp	-
13	38H1521	2	Elbow Fitting	-
14	R26448	4	O-Ring	-
15	AT190701	2	Hydraulic Hose	Fabricate
16	38H1314	2	Elbow Fitting	-
17	-	2	Part 19	(SUB (2) T191318) (ALSO ORDER (6) 24H1138) (T185041 NLA)
17	T191318	2	Pin Fastener	-
18	24H1138	2	Washer	1-1/16" X 2" X 0.134"
19	11M7030	2	Cotter Pin	5 X 40 mm
20	H121168	3	Plate	-
21	19H3552	3	Cap Screw	5/16" X 1-1/2"
22	38H1095	1	Elbow Fitting	-
23	T27022	1	Clamp	(SUB FOR U40398, APPL)
24	24M7106	1	Washer	10 X 18 X 2.500 mm
25	19H2633	1	Cap Screw	3/8" X 1-1/2"
26	AT142403	2	Hydraulic Hose	-
27	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
28	T77857	2	O-Ring	-
29	T160759	1	Label	Bucket Level Indicator

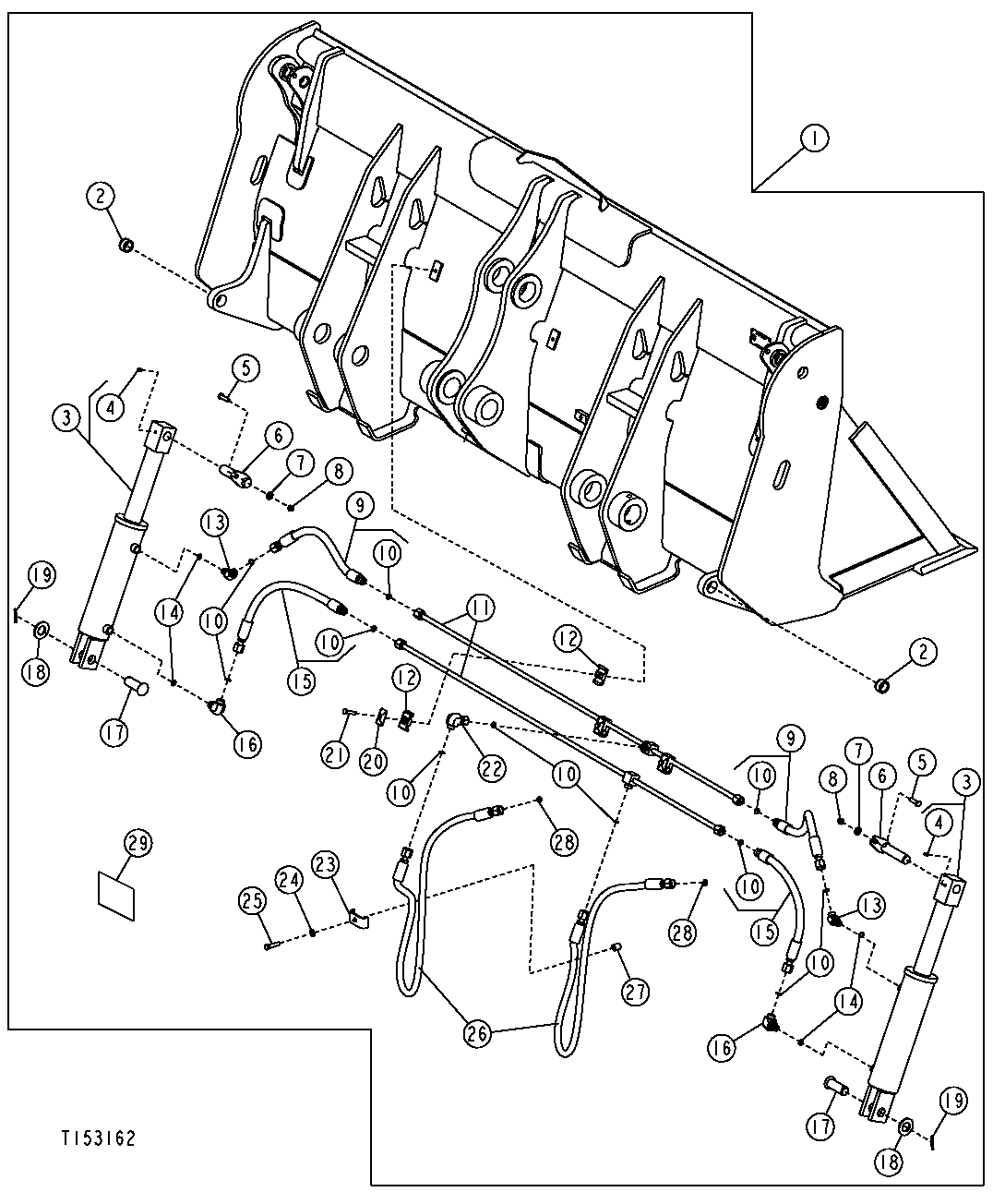

Multi-Purpose Bucket, Cylinder and Hydraulic Oil Lines
