Loader Bucket Cylinder and Third Function Hydraulics

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT195775	1	Hydraulic Hose	Fabricate, (SUB FOR AT195765)
2	19M7550	1	Cap Screw	M10 X 35
3	R44302	1	Tie Band	-
4	AT195776	1	Oil Line	-
5	AT195777	1	Oil Line	-
6	T77932	1	O-Ring	-
7	38H1404	1	Elbow Fitting	-
8	R26906	4	O-Ring	-
9	U12547	2	O-Ring	-
10	19M7402	1	Cap Screw	M10 X 25
11	24M7239	8	Washer	10.700 X 21 X 2.500 mm
12	T105720	1	Clamp	-
13	AT199231	1	Oil Line	-
14	H141836	1	Bushing	-
15	T77858	5	O-Ring	-
16	38H1163	1	Adapter Fitting	-
17	AT195773	1	Hydraulic Hose	Fabricate
18	AT195772	1	Hydraulic Hose	Fabricate
19	AT195775	1	Hydraulic Hose	Fabricate, (SUB FOR AT195765)
20	T189064	1	Shield	-
20	T221182	1	Dust Shield	(SUB FOR T206908, APPL)
21	T188927	2	Fitting	-
22	AT195775	1	Hydraulic Hose	Fabricate
23	AT195775	1	Hydraulic Hose	Fabricate
24	19M8081	1	Cap Screw	M10 X 80
25	19M8600	1	Cap Screw	M10 X 50
26	T202050	1	Angle	(SUB FOR T166245, APPL)
27	28H1522	1	Spacer	(SUB FOR T190690)
28	U46753	2	Hose Clamp	-
29	AT195779	1	Oil Line	-
30	AT195778	1	Oil Line	-
31	KV22609	4	Clamp	(SUB FOR T160550)
32	28H3394	1	Bushing	0.493" X 0.675" X 1/2"
33	19M7662	3	Cap Screw	M10 X 30
34	T161463	2	Hose Guard	-
35	14M7274	2	Nut	M10
36	19M7875	2	Cap Screw	M10 X 70
37	U40398	1	Clamp	-
38	19M7784	1	Screw	M10 X 20, (SUB FOR 19M7938, APPL)
39	38H1149	2	Fitting Plug	-
40	T188927	2	Fitting	(ALSO ORDER (2) T77858 AND (2) R26906) (SUB FOR (2) AT196852)
41	28H3383	2	Bushing	0.493" X 0.675" X 3/4", (SUB FOR 28H1523, APPL)
42	T159956	1	Clamp	-
43	T159848	1	Clamp	-
44	38H1272	2	Union Fitting	-
45	38H1474	2	Reducer	-
46	T77857	2	O-Ring	-
47	38H1356	2	Tube Nut	-
48	19M7550	2	Cap Screw	M10 X 35
49	24M7239	2	Washer	10.700 X 21 X 2.500 mm
50	AT310033	1	Hydraulic Hose	Fabricate
51	AT310034	1	Hydraulic Hose	Fabricate
52	AT312876	1	Hyd. Quick-Connect Coupler	-
53	KV11305	1	Hyd. Quick-Connect Coupler	-
54	T77932	2	O-Ring	-
55	T80306	2	Nut	-
56	T188879	1	Cap	-
57	T188880	1	Cap	-
58	T207889	1	Bracket	-
59	24M7296	3	Washer	10.500 X 30 X 2.500 mm

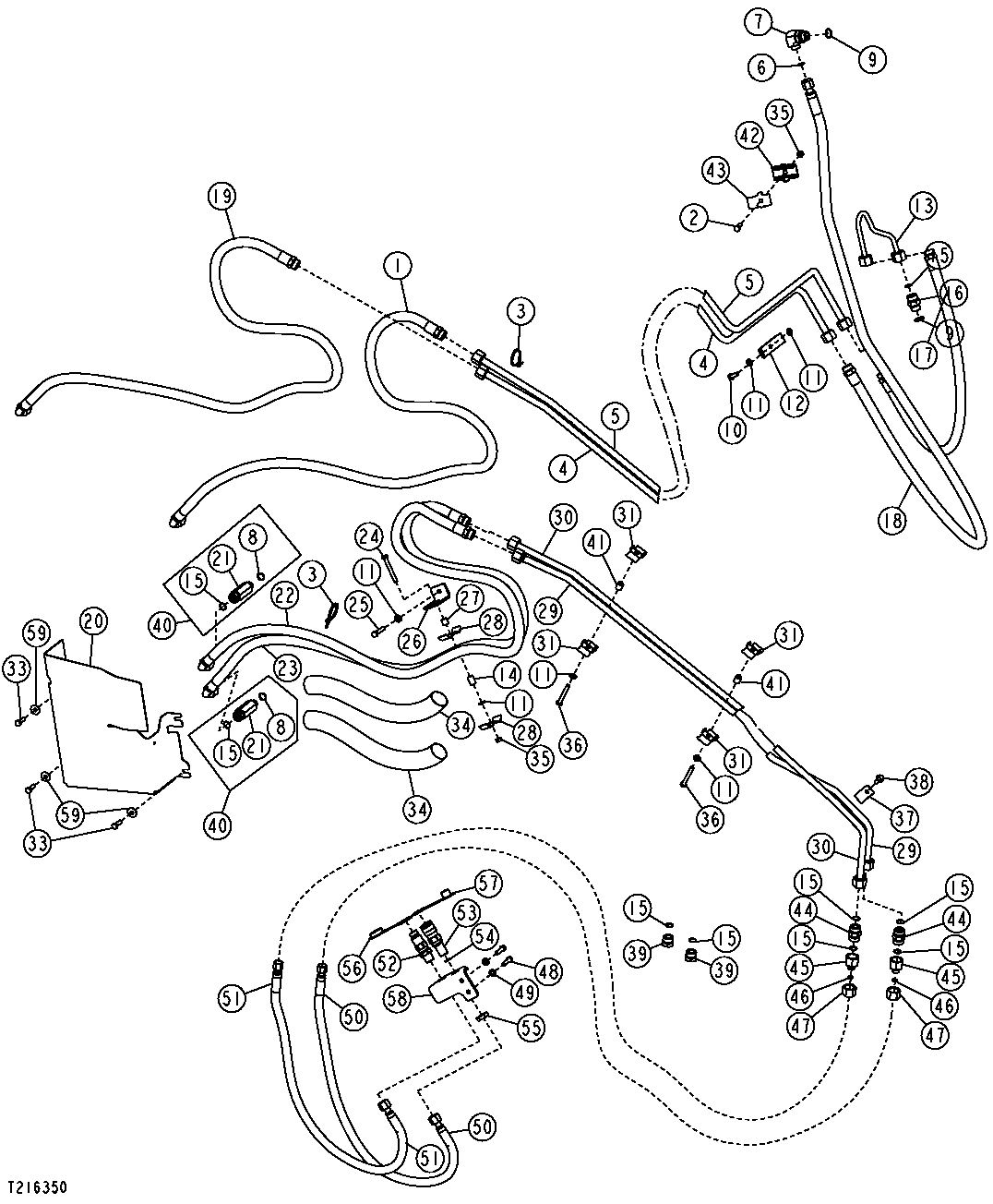

Loader Bucket Cylinder and Third Function Hydraulics
