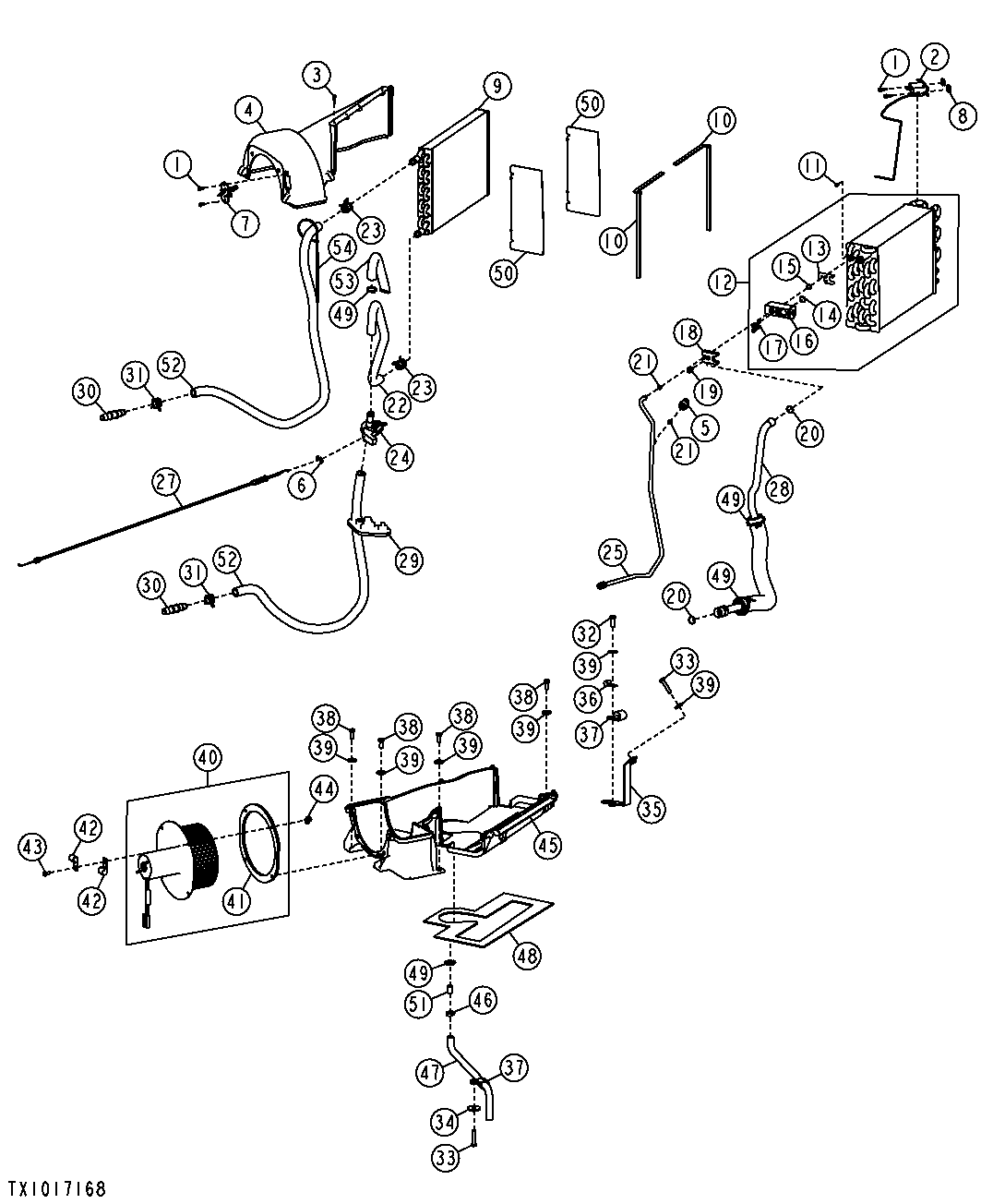

Heater and Air Conditioning with Pressurizer (962519 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37M7073	2	Screw	-
2	AT433043	1	Thermostat	A/C Thermostat Switch, SUB FOR RE198074, ORDER AT498724
2	AT498724	1	Thermostat	-
3	T184620	9	Screw	-
4	T205969	1	Housing	Top
5	RE157329	1	Switch	-
6	L57881	1	Clip	-
7	AT433236	1	Resistor	SUB FOR AT210515
8	R50279	2	Nut	-
9	AT191993	1	Core	Heater
10	T184369	2	Isolator	-
11	H85092	4	Screw	-
12	AT191994	1	Evaporator	-
13	T181522	1	Plate	-
14	R33259	1	O-Ring	-
15	R113050	1	O-Ring	-
16	RE174764	1	Valve	Expansion
17	PT11778	2	Bolt	-
18	R125223	1	Plate	-
19	19M8553	1	Screw	M6 X 16
20	T143169	3	O-Ring	-
21	R10093	4	O-Ring	-
22	T185789	1	Radiator Hose	-
23	T184924	4	Hose Clamp	-
24	AT193500	1	Hand Operated Valve	Water
25	AT303214	1	Line	Liquid Refrigerant
26	T178971	1	Grommet	Not Illustrated
27	AT186289	1	Cable	-
28	AT191990	1	Refrigerant Hose	-
29	T166297	1	Grommet	-
30	T160492	2	Fitting	-
31	R117721	2	Clamp	-
32	19M7407	1	Cap Screw	M8 X 25
33	19M7922	3	Cap Screw	M8 X 40
34	24H1296	2	Washer	11/32" X 1-3/8" X 0.134"
35	AT192509	1	Bracket	-
36	T13814	1	Clamp	-
37	T70659	2	Clamp	-
38	19M7881	10	Screw	M8 X 20
39	24M7207	2	Washer	8.400 X 24 X 2 mm
40	AT335177	1	Blower Motor	Pressurizer
41	H77698	1	Tie Band	-
42	AH89557	2	Clip	-
43	T178251	4	Cap Screw	-
44	T186766	1	Hose Guard	-
45	T164618	1	Housing	Bottom
46	AR77962	1	Hose Clamp	-
47	AT186304	1	Hose	Drain Hose One Way Valve, INCLUDES
48	T185845	2	Isolator	-
49	R44302	2	Tie Band	-
50	T184414	2	Sheet	-
51	T184415	1	Plug	-
52	-	1	Part 53	MAKE FROM T60811 CTL, (2.75 ft)
53	-	1	Part 54	MAKE FROM T60811 CTL, (3.17 ft)
54	H77698	1	Tie Band	-

Heater and Air Conditioning with Pressurizer (962519 - )
