Открытый узел

Controlled Load Lowering Device, Boom Cylinder Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

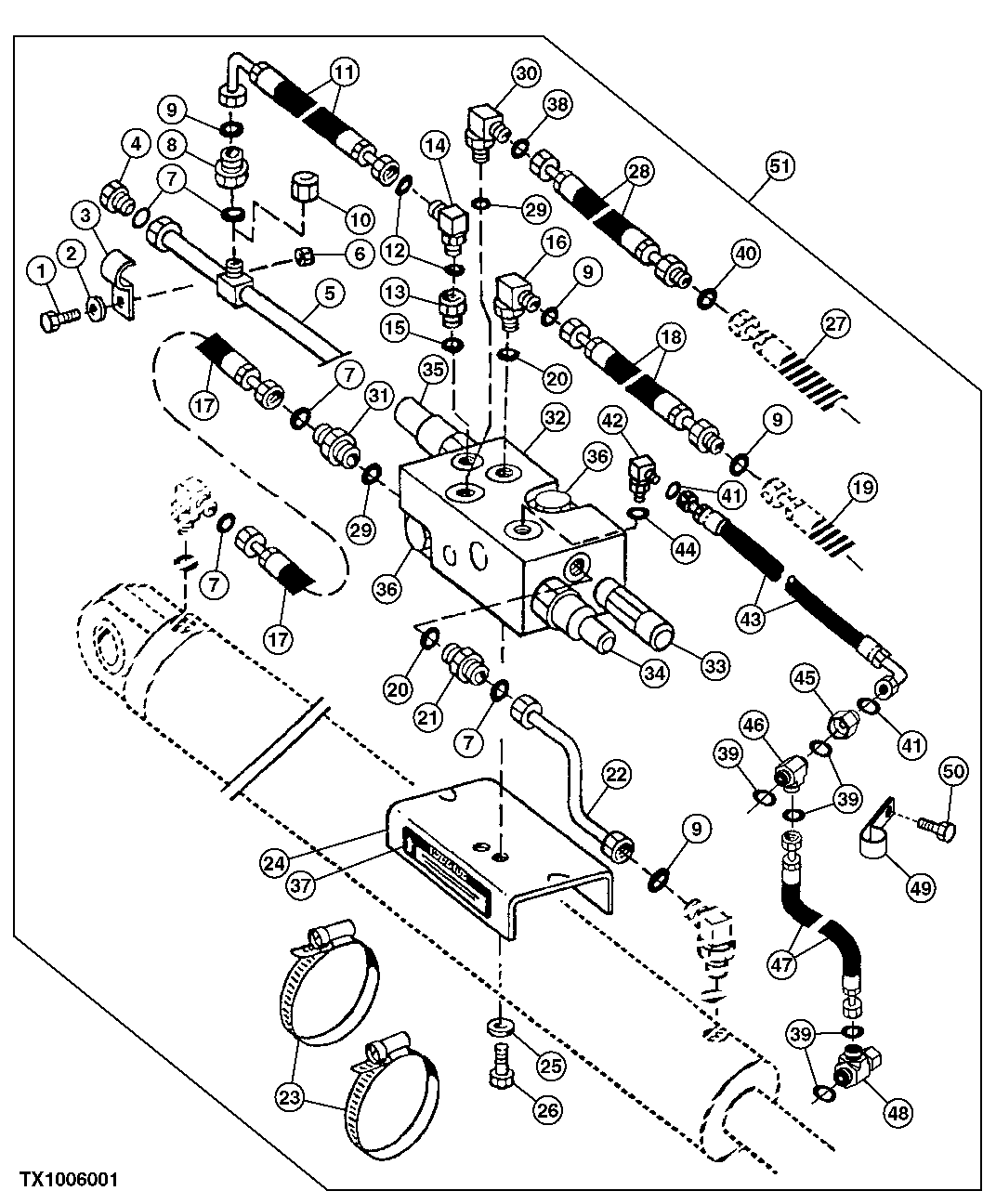

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7193	2	Bolt	M10 X 35, Return Line
2	24M7239	2	Washer	10.700 X 21 X 2.500 mm
3	T160376	3	Clamp	Right Side Boom Line
4	38H1149	1	Fitting Plug	Return Line
5	AT280207	1	Oil Line	Right Side Of Boom
6	14M7274	2	Nut	M10, Return Line
7	T77858	6	O-Ring	-
8	38H1482	1	Reducer	Return Line
9	T77932	6	O-Ring	-
10	38H1418	1	Fitting	Tee Cap When Crowd Control Is Not Required
11	AT280228	1	Hydraulic Hose	36.5252" X 660 mm (26") X 30.1752", Port M Fabricate
12	T77857	2	O-Ring	Port M Fitting
13	38H1161	1	Adapter Fitting	Port M
14	38H1095	1	Elbow Fitting	Port M
15	R26375	1	O-Ring	-
16	38H1006	1	Elbow Fitting	Port B
17	AT280228	1	Hydraulic Hose	36.5252" X 660 mm (26") X 30.1752", Port FB Fabricate
18	AT280232	1	Hydraulic Hose	1" X 1200 mm (47-1/4") X 30.1752", Port B
19	-	1	Part 19	To Boom Rod Tube
20	R26906	2	O-Ring	Port B Port ANN
21	38H1193	1	Adapter Fitting	Port ANN
22	AT280222	1	Oil Line	Port ANN
23	TY22497	2	Hose Clamp	Mounting Plate
24	T161769	1	Plate	To Boom Cylinder
25	24M7239	6	Washer	10.700 X 21 X 2.500 mm, Return Line
26	19H1134	2	CAP SCREW	3/8" X 3/4", Mounting Bracket
27	-	1	Part 27	To Boom Cap Tube
28	AT280230	1	Hydraulic Hose	36.5252" X 1003 mm (39-1/2") X 36.5252", Port A Fabricate
29	U12547	2	O-Ring	Port FB Port A
30	38H1305	1	Elbow Fitting	Port A
31	38H1163	1	Adapter Fitting	Port FB
32	AT302183	1	Valve	Controlled Load Lowering Device Boom
33	AT180076	1	Pressure Relief Valve	(5000 PSI), Relief
33	AT180081	1	Seal Kit	-
34	AT180408	1	Hyd Actuated Control Valve	(470 PSI), Sequence
34	AT180082	1	Seal Kit	-
35	AT180409	1	Hyd Actuated Control Valve	(470 PSI), Load Control
35	AT180083	1	Seal Kit	-
36	AT180079	1	Check Valve	Check
36	AT180086	1	Seal Kit	-
37	T161665	1	Label	Service Valve
38	T76938	1	O-Ring	Boom Cap Tube End
39	T77613	5	O-Ring	-
40	T77858	1	O-Ring	Between Port A Fitting and Hose
41	T77814	3	O-Ring	Between Port D Fitting and Hose
42	38H1003	1	Elbow Fitting	Port D
43	AT180861	1	Hydraulic Hose	9/16" X 868 mm (34-1/4") X 9/16", Port D Elbow Fabricate
44	R28782	1	O-Ring	Port D Elbow
45	38H1480	1	Reducer	-
46	38H1205	1	Tee Fitting	-
47	AT308762	1	Hydraulic Hose	Fabricate
48	38H1030	1	Tee Fitting	-
49	T151192	1	Clamp	-
50	19M8166	1	Cap Screw	M10 X 110
51	-	1	Part 55	Service With Component Parts, (AT197163 NLA)
