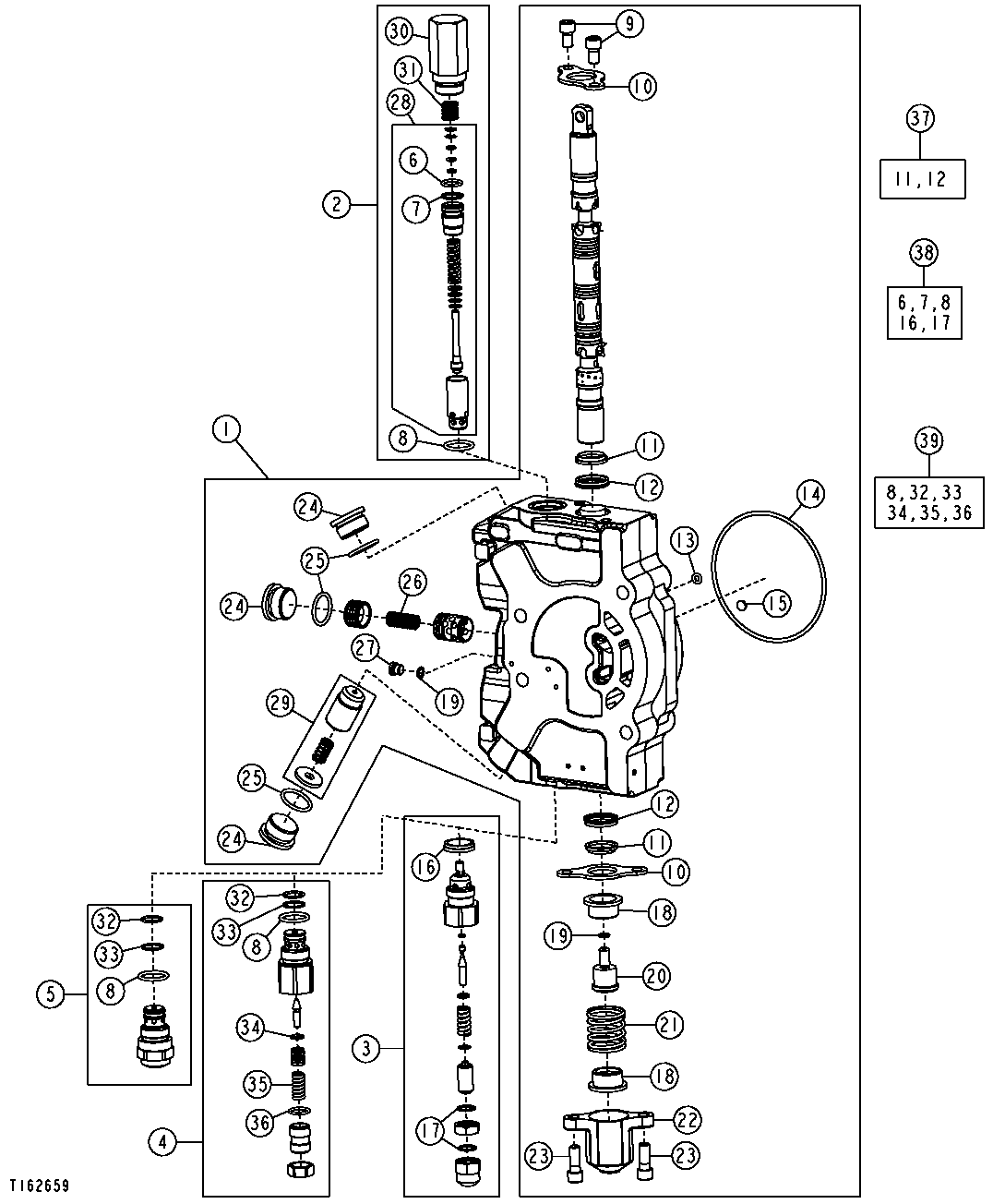

Boom Section, Manual and Backhoe Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT301122	1	Spool Valve	-
1	-	1	Part 1	(SUB AT301122) (ALSO ORDER AT300803 OR AT301128) (AT199245 NLA)
2	AT171403	1	Pressure Relief Valve	(2150 PSI)
3	AT198620	1	Pressure Relief Valve	7/8 in., PORT
4	AT300803	1	Pressure Relief Valve	1 1/16 in., PORT
5	AT301128	1	Pressure Relief Valve	1 1/16 in., PORT Anti-Cavitation
6	-	1	Part 7	-
7	-	1	Part 8	-
8	T118681	3	O-Ring	-
9	21H1334	2	Screw	3/8" X 1/2"
10	T191243	2	Plate	-
11	-	2	Part 12	-
12	-	2	Part 13	-
13	T190766	1	Seal	-
14	T163954	1	Seal	-
15	R95493	1	Disk	-
16	T183757	1	Seal	-
17	-	2	Part 18	-
18	T163959	2	Seat	-
19	R26287	2	O-Ring	-
20	T163995	1	Screw	-
21	T163955	1	Spring	-
22	T190788	1	Cap	-
23	19H2923	2	Screw	3/8" X 1"
24	T190775	1	Plug	-
25	U17409	2	O-Ring	-
26	T190767	1	Spring	-
27	T190776	1	Plug	-
28	AT178363	1	Pressure Relief Valve	-
29	AT198621	1	Seal Kit	-
30	T118866	1	Housing	-
31	T118867	1	Spring	-
32	T107887	2	O-Ring	-
33	-	2	Part 34	-
34	R63548	1	O-Ring	-
35	-	1	Part 36	-
36	-	1	Part 37	-
37	AT320423	1	Seal Kit	Spool Seal One Kit Services Section, (SUB FOR AT280407)
38	AT314538	1	Seal Kit	7/8 in., Relief Valve, (SUB FOR AT189413)
38	AT314539	1	Seal Kit	1 1/16 in., Relief Valve, (SUB FOR AT189413)
39	AT300801	1	Seal Kit	-
