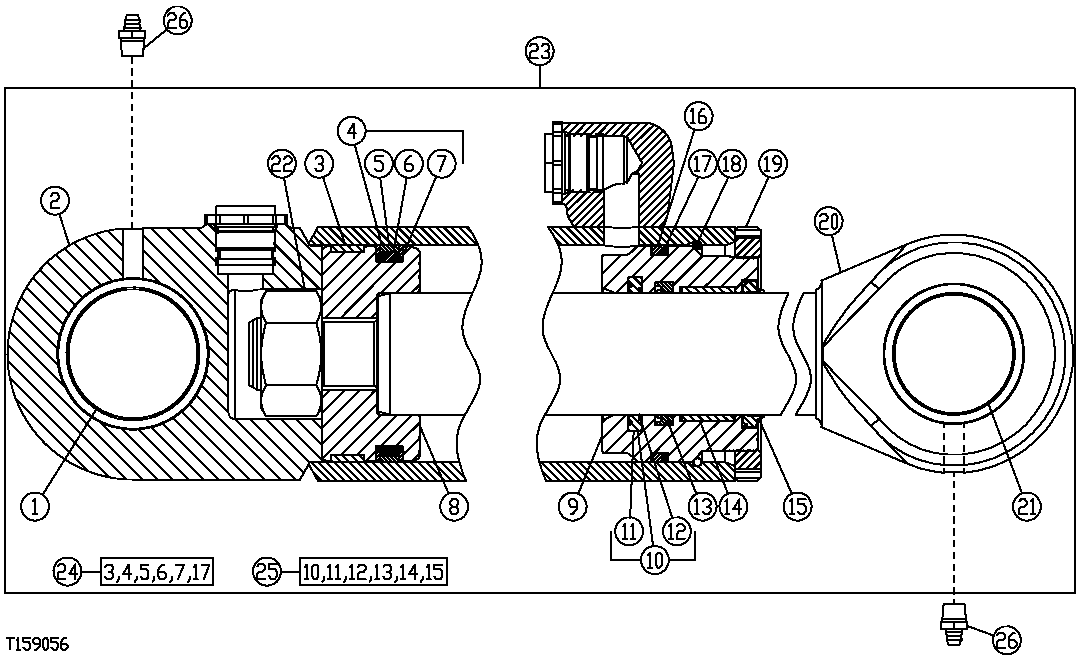

Boom Lift Cylinder and Repair Kits ( - 943817)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H180084	1	Bushing	-
2	AH176032	1	Hydraulic Cylinder Barrel	-
3	R81775	1	Wear Ring	-
4	RE20343	1	Seal	-
5	-	1	Part 5	-
6	-	1	Part 6	-
7	-	2	Part 7	-
8	R93028	1	Piston	-
9	H157427	1	Hydr. Cylinder Rod Guide	-
10	AH146562	1	Seal	-
11	-	1	Part 11	-
12	-	1	Part 12	-
13	H152204	1	Seal	-
14	H152795	1	Wear Ring	-
15	AH146558	1	Seal	-
16	F950R	1	O-Ring	-
17	R81862	1	Back-Up Ring	-
18	R81787	1	Snap Ring	-
19	R81793	1	Nut	-
20	AH174946	1	Hydraulic Cylinder Rod	-
21	R97727	1	Bushing	-
22	-	1	Part 22	-
23	-	1	Part 23	AH211105 AND AH174944 NLA, ORDER AHC144412
23	AHC14412	1	Hydraulic Cylinder	ALSO ORDER 38H5168, T77858, 51M7043 AND AT325180 OR AT325182
23	38H5168	1	Adapter Fitting	Not Included
23	T77858	1	O-Ring	Not Included
23	51M7043	1	O-Ring	15.300 X 2.200 mm, Not Included
23	AT325180	1	Hydraulic Hose	Right Hand Not Included
23	AT325182	1	Hydraulic Hose	Left Hand Not Included
24	AH212101	1	Hydraulic Cylinder Kit	Bore Seal, SUB FOR APPL AH149844
25	AH149814	1	Hydraulic Cylinder Kit	Rod Seal
26	T162396	2	Lubrication Fitting	-

Boom Lift Cylinder and Repair Kits ( - 943817)

Нет текстового описания
