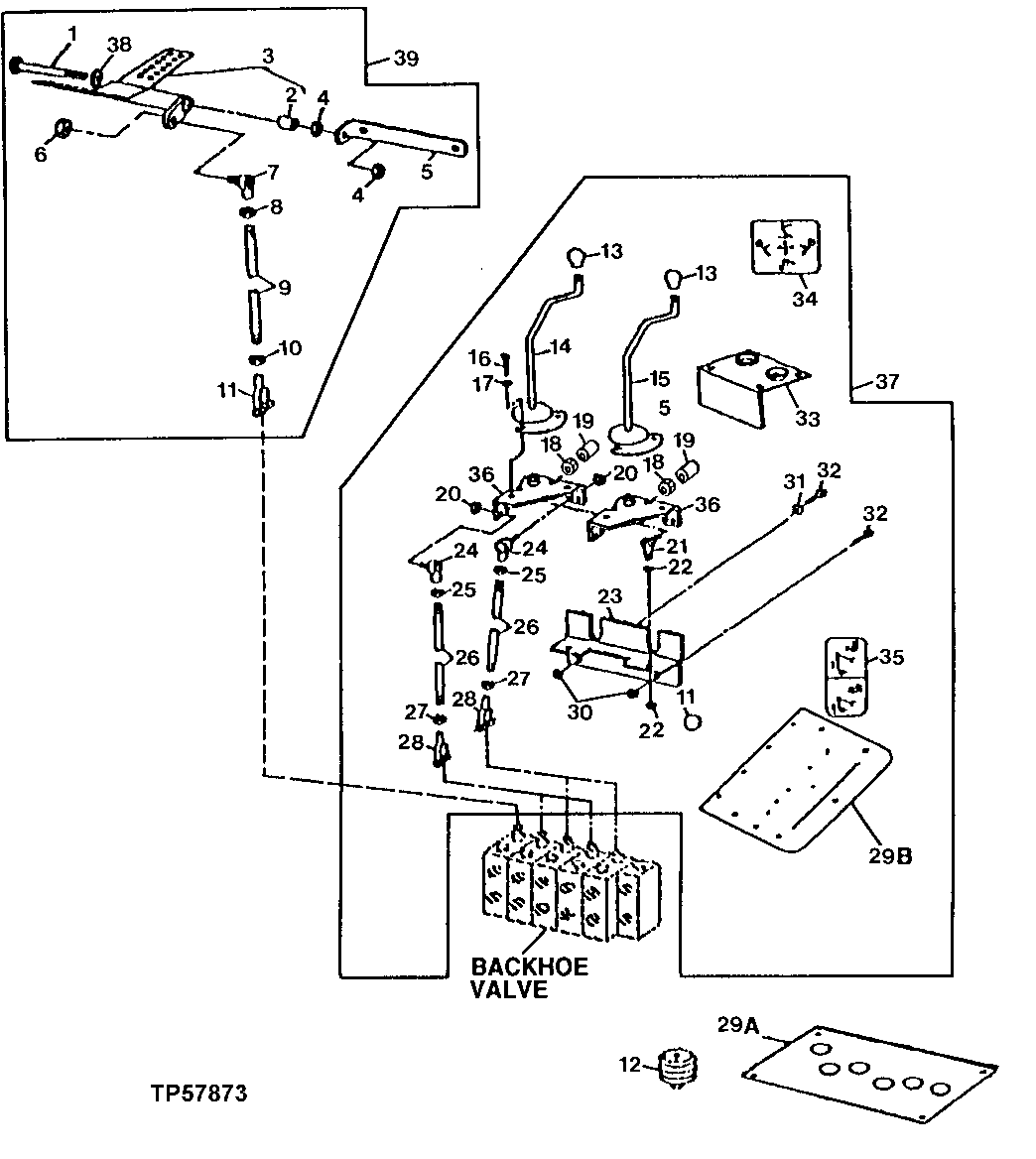

Two Lever Backhoe Control Lever Linkage For Extendable Dipperstick

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3450	1	Cap Screw	5/8" X 6-3/4"
2	T58109	2	Bushing	-
3	AT161682	1	Control	-
4	14H1039	2	Nut	5/8"
4	M87534	2	Spring Washer	-
5	T134907	1	Angle	-
6	M68954	1	Lock Nut	-
7	AT169087	1	Ball Joint	(SUB FOR AT49300)
8	14H774	1	Nut	3/8"
9	T148848	1	Rod	(USE W/AT168919)
9	T165214	1	Stud	(USE W/ AT183939)
10	14H913	1	Nut	3/8"
11	T140328	1	Yoke	-
12	AT145629	5	Boot	-
13	T133291	2	Knob	-
14	AT148213	1	Lever	Right
15	AT148214	1	Lever	Left
16	19M7881	4	Screw	M8 X 20
17	24M7238	4	Washer	8.700 X 17 X 2 mm
18	14H865	2	Nut	1/2"
19	T161379	2	Spacer	(ALSO ORDER 14H865) (SUB FOR T141126, THIS APPLICATION)
20	M68954	4	Lock Nut	-
21	AT124107	2	Ball Joint	-
22	14H865	4	Nut	1/2"
23	AT164934	1	Support	(SUB FOR AT149549)
24	AT169087	4	Ball Joint	(SUB FOR AT49300)
25	14H774	4	Nut	3/8"
26	T158810	4	Rod	-
26	T165222	4	Rod	-
27	14H913	4	Nut	3/8"
28	T140328	4	Yoke	-
30	14M7274	2	Nut	M10
31	24M7239	1	Washer	10.700 X 21 X 2.500 mm
32	19M7550	2	Cap Screw	M10 X 35
33	T134383	1	Panel	-
34	T100195	1	Label	(SWING AND BOOM)
34	T100196	1	Label	(BUCKET AND DIPPERSTICK)
35	T147012	1	Label	Foot Pedal
36	AT178686	2	Base	(REPLACE IN PAIRS) (SUB FOR AT151699)
37	AT183938	1	Linkage	(SUB FOR AT166957, AT168918 AND AT178770) (ALSO ORDER AT183939 AND AT184192)
38	N119479	1	Washer	(SUB FOR R64059)
39	AT183939	1	Linkage	(SUB FOR AT168919)
29A	T148844	1	Support	w/ Cab, (USE W/ AT166957) (SUB FOR T133509THIS APPLICATION)
29B	T151794	1	Gasket	w/ Cab, (USE W/ AT168918)
29B	T164570	1	Gasket	-

Two Lever Backhoe Control Lever Linkage For Extendable Dipperstick
