Three Lever Control Valve Linkage (Standard Backhoe)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3323	2	Cap Screw	5/8" X 8"
2	T58109	4	Bushing	-
3	T162396	1	Lubrication Fitting	Not Illustrated
3	AT186908	1	Pedal	(SUB FOR AT151371 AND AT174416)
4	R46528	2	Spring Locking Pin	-
5	T141108	2	Hook Bolt	-
6	14H1080	2	Nut	3/8", (SUB FOR 14H774, THIS APPLICATION)
7	AE37072	3	Link End	-
8	19H3663	2	Cap Screw	3/8" X 1-1/2"
9	M359T	4	Washer	-
10	M68954	6	Lock Nut	-
11	14H1039	2	Nut	5/8"
12	AT179513	1	Support	(SUB FOR AT175356 AND AT151368)
13	19M7358	2	Cap Screw	M10 X 40
14	19H3030	1	Cap Screw	1/2" X 1-1/4"
15	AT158197	1	Bellcrank	-
16	T125808	12	Bushing	-
17	T141126	1	Spacer	-
18	AT158198	1	Link	-
19	H129201	2	Lock Nut	(SUB FOR T32552)
20	19H3239	1	Cap Screw	3/8" X 1-1/4"
21	AT151364	2	Base	-
22	24H1746	10	Washer	25/32" X 1-1/8" X 0.120"
23	28H1576	1	Bushing	0.824" X 1.050" X 7/8"
24	AT151365	1	Base	-
25	14M7274	2	Nut	M10
26	39M1709	3	Knob	(SUB FOR T35233, THIS APPLICATION)
27	AT169512	3	Lever	(SUB FOR AT150324)
28	19M7402	6	Cap Screw	M10 X 25
29	AT186909	1	Pedal	(SUB FOR AT151370 AND AT174417)
29	T162396	1	Lubrication Fitting	Not Illustrated
30	AT151366	1	Support	-
31	AT151367	1	Strap	-
32	AT169087	3	Ball Joint	(SUB FOR AT49300)
33	14H774	4	Nut	3/8"
34	T158812	1	Stud	-
35	14H913	4	Nut	3/8"
36	T140328	4	Yoke	-
37	AT145629	4	Boot	w/ Cab
38	T158026	1	Shaft	(SUB FOR T141109)
39	11M7087	4	Cotter Pin	4 X 40 mm
40	28H1669	1	Bushing	0.824" X 1.050" X 1-1/2"
41	T158810	2	Rod	-
42	T161213	1	Rod	-
43	T135241	1	Plug	w/ Cab
45	T134877	1	Panel	-
46	T140411	1	Label	-
47	R65563	4	Pin Fastener	-
48	R46528	4	Spring Locking Pin	-
50	19M7935	4	Cap Screw	M10 X 55
51	24H1314	8	Washer	13/32" X 1-3/4" X 7/64"
52	AT139776	4	Isolator	-
53	24M7296	4	Washer	10.500 X 30 X 2.500 mm, (SUB FOR T75904)
54	14M7274	4	Nut	M10
55	19H3239	1	Cap Screw	3/8" X 1-1/4"
56	24M7053	1	Washer	17 X 30 X 3 mm
57	24H1391	1	Washer	25/32" X 1-5/16" X 0.060"
58	T167259	2	Guard	(ROPS APPLICATION ONLY) (SUB FOR (2) AT177780)
59	T69627	4	Rivet	-
60	AT183941	1	Control Lever	(ALSO ORDER AT184192) (SUB FOR AT166959, AT175958 AND AT178773)
44A	T149702	1	Support	w/ Cab, (USE W/ AT166959) (SUB FOR T140261, THIS APPLICATION)
44B	T160999	1	Gasket	w/ Cab, (USE W/)AT175958)
44B	T164602	1	Gasket	-
49A	AT165783	1	Support	(SUB FOR AT151567)
49B	AT183911	1	Support	-

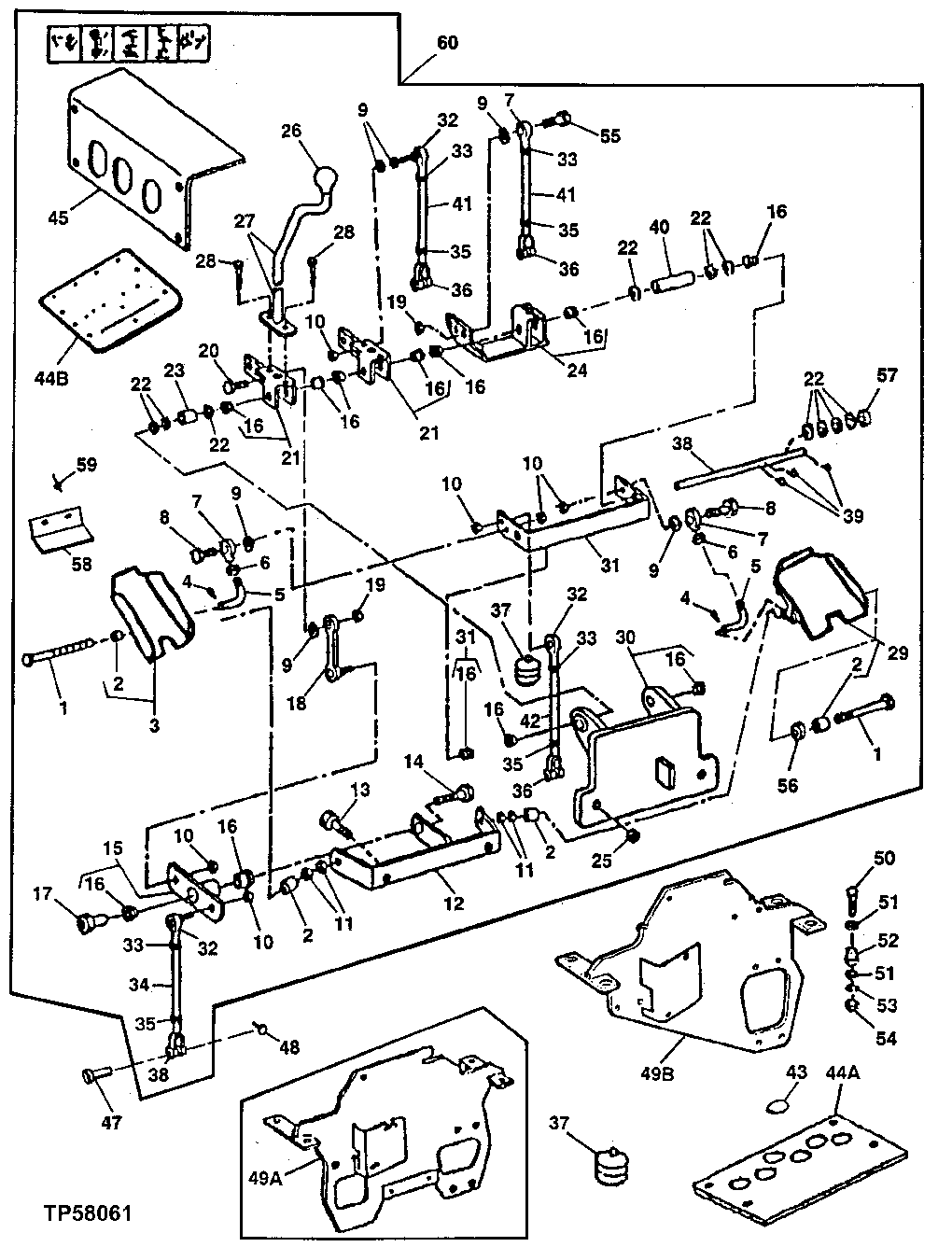

Three Lever Control Valve Linkage (Standard Backhoe)
