Three Lever Control Valve Linkage (Extendable Backhoe)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3323	2	Cap Screw	5/8" X 8"
2	T58109	4	Bushing	-
3	AT186908	1	Pedal	(SUB FOR AT151371 AND AT174416)
4	R46528	2	Spring Locking Pin	-
5	T141108	2	Hook Bolt	-
6	14H1080	2	Nut	3/8", (SUB FOR 14H774, THIS APPLICATION)
7	AE37072	3	Link End	-
8	19H3663	2	Cap Screw	3/8" X 1-1/2"
9	M359T	1	Washer	-
10	M68954	7	Lock Nut	-
11	14H1039	2	Nut	5/8"
12	AT179513	1	Support	(SUB FOR AT175356 AND AT151368)
13	19M7358	2	Cap Screw	M10 X 40
14	19H3030	1	Cap Screw	1/2" X 1-1/4"
15	AT158197	1	Bellcrank	-
16	T125808	14	Bushing	-
17	T141126	1	Spacer	-
18	AT158198	1	Link	-
19	H129201	2	Lock Nut	(SUB FOR T32552)
20	19H3239	1	Cap Screw	3/8" X 1-1/4"
21	AT151364	2	Base	-
22	24H1746	7	Washer	25/32" X 1-1/8" X 0.120"
23	28H1576	1	Bushing	0.824" X 1.050" X 7/8"
24	AT151365	1	Base	-
25	14M7274	2	Nut	M10
26	39M1709	4	Knob	(SUB FOR T35233, THIS APPLICATION)
27	AT169512	4	Lever	-
28	19M7402	8	Cap Screw	M10 X 25
29	AT174417	1	Pedal	(SUB FOR AT151370)
30	AT151366	1	Support	-
31	AT151367	1	Strap	-
32	AT169087	4	Ball Joint	(SUB FOR AT49300)
33	14H774	5	Nut	3/8"
34	T158812	1	Stud	-
35	14H913	5	Nut	3/8"
36	T140328	5	Yoke	-
37	AT145629	5	Boot	w/ Cab
38	T158026	1	Shaft	(SUB FOR T141109)
39	11M7087	4	Cotter Pin	4 X 40 mm
40	AT151372	1	Base	-
41	T158810	3	Rod	-
41	T165222	3	Rod	-
42	T161213	1	Rod	-
42	T165222	1	Rod	-
43	T145283	1	Label	w/ Cab
45	T134878	1	Panel	-
46	14M7274	4	Nut	M10
47	R65563	5	Pin Fastener	-
48	R46528	5	Spring Locking Pin	-
50	19M7935	4	Cap Screw	M10 X 55
51	24H1314	8	Washer	13/32" X 1-3/4" X 7/64"
52	AT139776	4	Isolator	-
53	24M7296	4	Washer	10.500 X 30 X 2.500 mm, (SUB FOR T75904)
54	19H3239	1	Cap Screw	3/8" X 1-1/4"
55	24M7053	1	Washer	17 X 30 X 3 mm
56	24H1391	1	Washer	25/32" X 1-5/16" X 0.060"
57	T167259	2	Guard	(ROPS APPLICATION ONLY) (SUB FOR AT177780)
58	T69627	4	Rivet	-
59	AT183941	1	Control Lever	(ALSO ORDER AT183942 AND AT184192) (SUB FOR AT166962, AT175958 AND AT178773)
44A	T149702	1	Support	w/ Cab, (USE W/ AT166962) (SUB FOR T140261, THIS APPLICATION)
44B	T164602	1	Gasket	-
44B	T152399	1	Gasket	w/ Cab, (USE W/AT175958)
49A	AT165783	1	Support	(SUB FOR AT151567)
49B	AT183911	1	Support	-

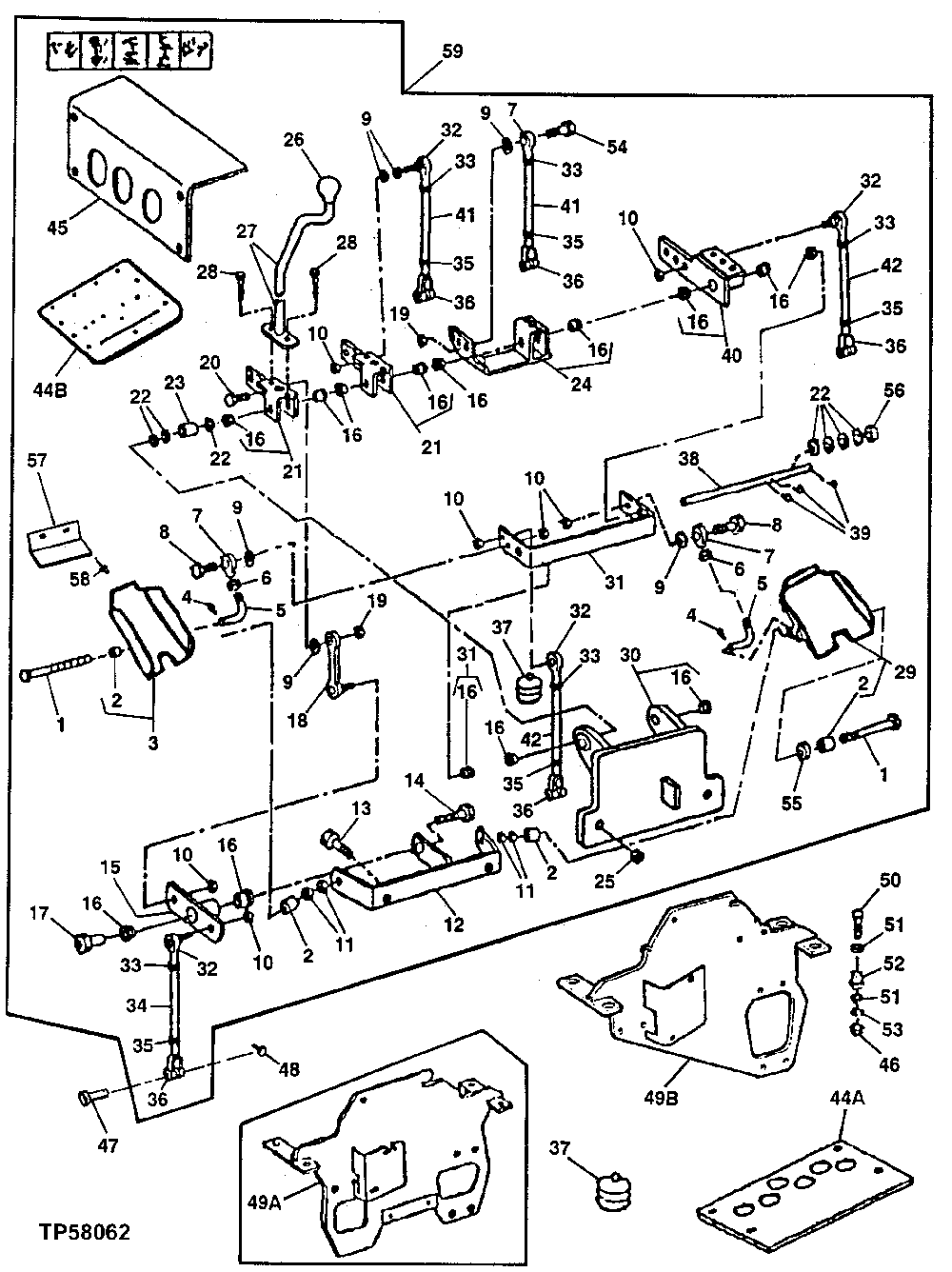

Three Lever Control Valve Linkage (Extendable Backhoe)
