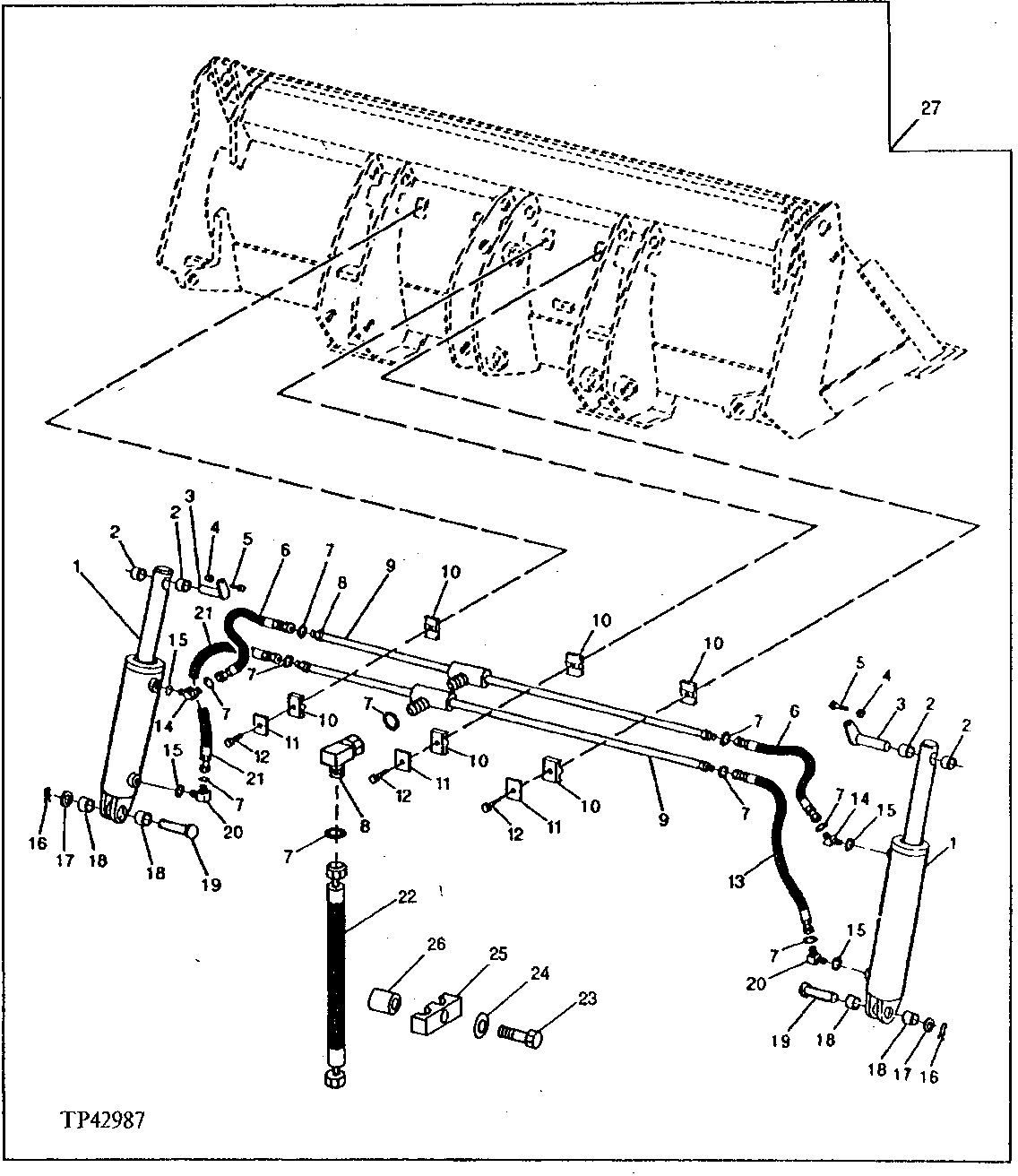

Third Function Hydraulics (Multi-Purpose Bucket) ( - 889259)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A24073	8	Bushing	(USE W/ AT190880)
1	-	2	Part 1	(AT190880 NLA) (SUB FOR AT142578) (SUB AH210737, T191318, (3) 24H1138)
2	T128532	4	Bushing	-
3	AT190900	2	Pin	(SUB FOR AT142584 AND AT188305)
4	T54568	2	Lock Nut	-
5	19H2676	2	Cap Screw	3/8" X 1"
6	AT150831	2	HYDRAULIC HOSE - FABRICATE	13/16" X 520 mm (20-1/2") X 13/16"
7	T77857	12	O-Ring	-
8	38H1095	2	Elbow Fitting	-
9	AT150755	2	Oil Line	-
10	H135156	6	Clamp	-
11	H121168	3	Plate	-
12	19H2661	3	Cap Screw	5/16" X 1-3/8"
13	AT150830	1	Hydraulic Hose	13/16" X 698 mm (27-1/2") X 13/16", Right
14	38H1521	2	Elbow Fitting	-
15	R26448	4	O-Ring	-
16	11M7030	2	Cotter Pin	5 X 40 mm
17	24H1138	2	Washer	1-1/16" X 2" X 0.134"
18	T128531	4	Bushing	-
19	-	2	Part 20	(T185041 NLA) (SUB FOR T128536) (SUB (2) T191318 AND (6) 24H1138)
20	38H1314	2	Elbow Fitting	-
21	AT142604	1	HYDRAULIC HOSE - FABRICATE	13/16" X 483 mm (19") X 13/16", Left
22	AT142403	2	Hydraulic Hose	-
23	19H2633	1	Cap Screw	3/8" X 1-1/2"
24	24M7106	1	Washer	10 X 18 X 2.500 mm
25	U40398	1	Clamp	-
26	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
27	AT161911	1	Multi-Purpose Bucket	(INCLUDES BUCKET) (SUB AT195324)
