Steering Valve, Steering Wheel and Steering Column

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155227	1	Cover	SUB FOR AL118173 OR R47998
2	P50631	1	O-Ring	-
3	T13630	1	Nut	-
4	T17148	1	Lock Washer	-
5	AT139694	1	Steering Wheel	-
6	AT166242	1	Steering Column	SUB FOR AT160572
7	19H2676	4	Cap Screw	3/8" X 1"
7	19H2923	4	Screw	3/8" X 1", Socket Head With Tilt Steering
8	AT159104	1	Bracket	-
9	19M7402	4	Cap Screw	M10 X 25
10	T134635	1	Washer	Without Tilt Steering
10	T142887	1	Washer	With Tilt Steering
11	AT173412	1	Flow Control Hyd. Valve	K1, SUB FOR AT158814
12	24M7239	4	Washer	10.700 X 21 X 2.500 mm
13	-	1	Part 15	(K)
14	-	1	Part 16	(K)
15	-	1	Part 17	AT160661 NLA, SUB AT140971
16	-	1	Part 18	(K)
17	-	1	Part 19	NLA
18	AT160662	1	Spring Assembly	-
18	AT220224	1	Lever Kit	-
19	-	1	Part 22	(K)
20	AT191487	1	Boot Kit	Knob
21	-	1	Part 24	ORDER AT191487
22	-	1	Part 25	ORDER AT191487
23	AT140971	1	Steering Column	Tilt
24	T132995	1	Cover	Lower Column Tilt Steering
25	AT161014	1	Kit	Tilt Steering
..	RE56109	1	Steering Column	Includes All Parts Marked (K) Tilt Steering Wheel Overhaul, SUB RE50306
..	AT167183	1	Seal Kit	Includes All Parts Marked (K1)

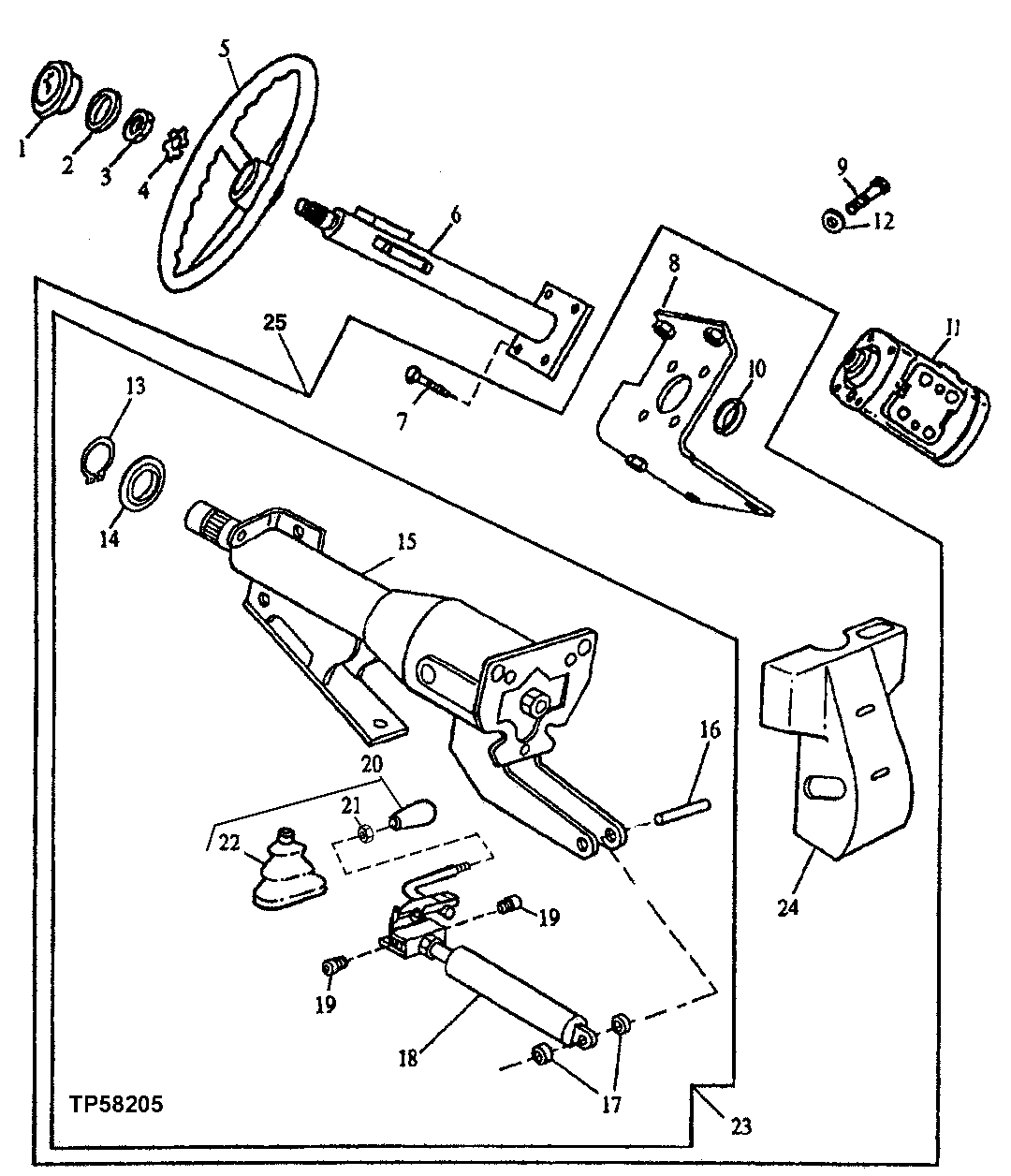

Steering Valve, Steering Wheel and Steering Column
