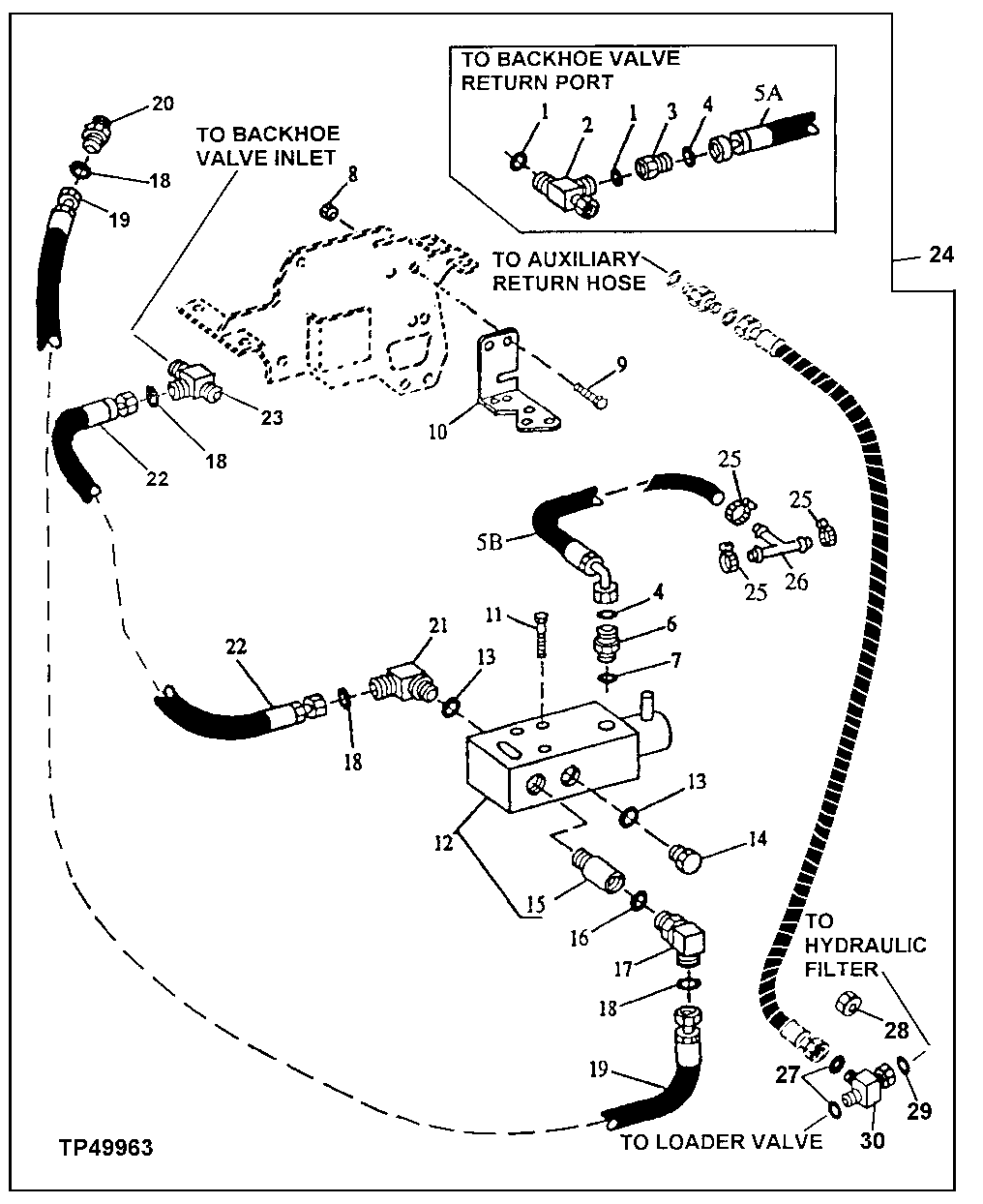

SIX FUNCTION SELECTIVE FLOW SOLENOID CONTROL VALVE ( - 881777)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	2	O-Ring	-
2	38H1031	1	Tee Fitting	-
3	38H1481	1	Reducer	-
4	T77613	2	O-Ring	-
6	38H1309	1	Adapter Fitting	-
7	R28782	1	O-Ring	-
8	14M7275	2	Nut	M12
9	19M8011	2	Cap Screw	M12 X 30
10	AT167606	1	Bracket	(SUB FOR AT156935)
11	19M7663	3	Cap Screw	M8 X 70
12	-	1	Part 14	(SUB AT323347) (ALSO ORDER T183454, 19M7403, 19M7364, (2) 19M8081, (2) 14M7274, AT189078, AT117631, 38H1431, (2) T76938, U12547, R29936, L102678)
13	R29936	2	O-Ring	-
14	R36636	1	Drain Plug	-
15	AT117631	1	Check Valve	-
16	U12547	1	O-Ring	-
17	38H1305	1	Elbow Fitting	-
18	T76938	4	O-Ring	-
19	AT164988	1	Hydraulic Hose	-
20	38H1281	1	Union Fitting	-
21	38H1037	1	Elbow Fitting	-
22	AT164989	1	Hydraulic Hose	-
23	38H1027	1	Tee Fitting	-
24	-	1	Part 26	(AT184655 NLA) (SUB AT189178) (SUB FOR AT159495 (KIT ALSO INCLUDES WIRING HARNESSES, SWITCHES, RELAY AND LABELS.)
24	-	1	Part 27	(AT184362 NLA) (SUB AT189178 (KIT ALSO INCLUDES WIRING HARNESSES, SWITCHES, RELAY AND LABELS.)
25	TY22462	3	Clamp	(SUB FOR AR48236)
26	M86863	1	Tee Fitting	-
27	T77858	2	O-Ring	-
28	38H1418	1	Fitting	-
29	T77858	1	O-Ring	-
30	38H1033	1	Tee Fitting	-
5A	-	1	Part 5	(SUB AT167884) (ALSO ORDER (3) TY22462 AND M86863)
5B	AT167884	1	Hydraulic Hose	-
5B	R49921	1	Clamp	Not Illustrated

SIX FUNCTION SELECTIVE FLOW SOLENOID CONTROL VALVE ( - 881777)

Нет текстового описания
