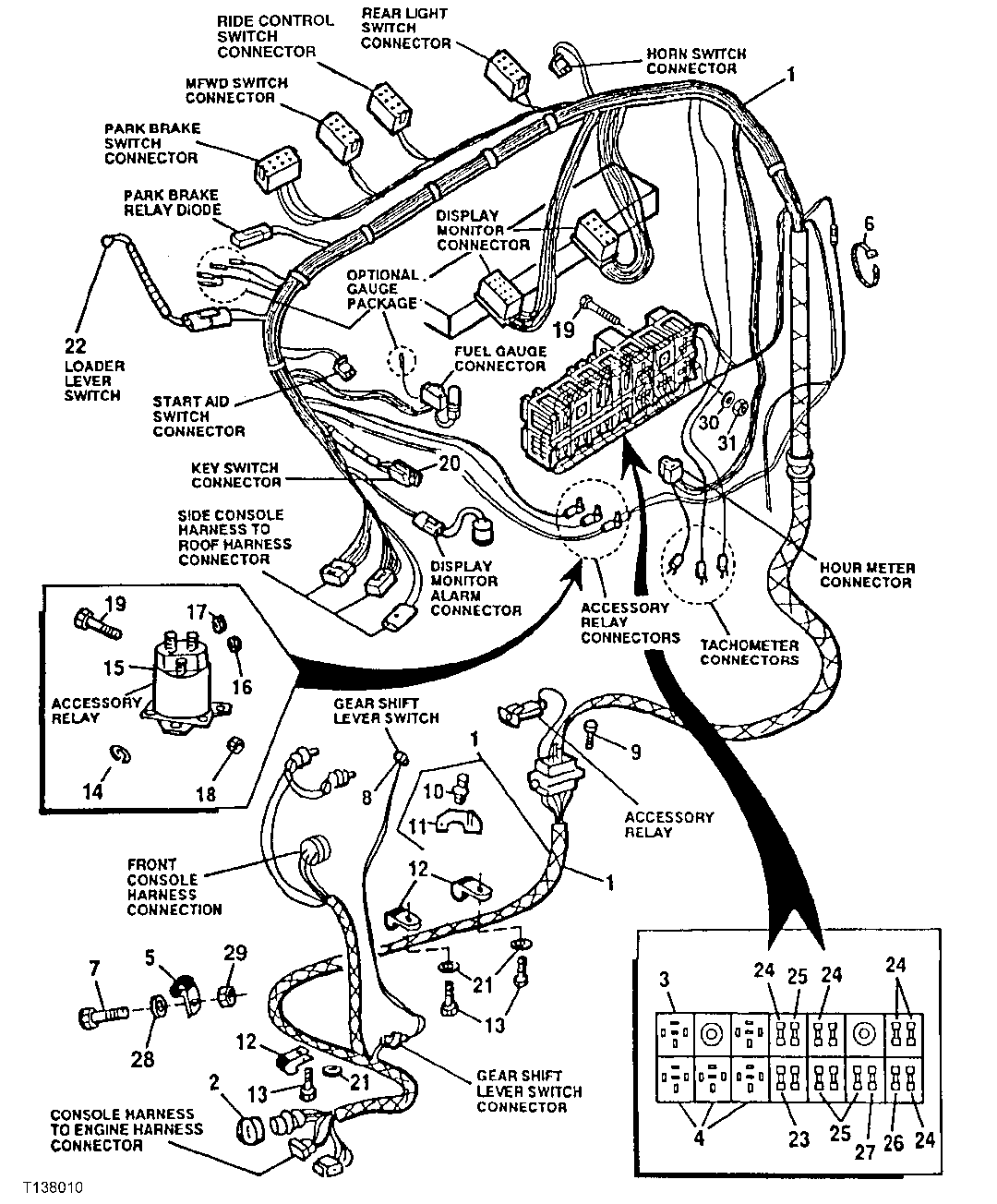

Side Console Wiring Harnesses (ROPS) (872329 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT44188	2	Rivet	-
1	AT180581	1	Console Lamp Wiring Harness	-
2	E73240	1	Nut	-
3	T215293	1	Flasher	12 V, (SUB FOR AT163088)
4	RE68327	3	Relay	(BACKUP ALARM, NUETRAL, PARK BRAKE)
5	T76252	1	Clamp	-
6	R44302	2	Tie Band	-
7	19M7938	1	Cap Screw	M10 X 20
8	AT162180	1	Switch	(MOMENTARY) (NUETRAL DISCONNECT)
9	37H132	2	Screw	0.216" X 3/4"
10	-	1	Part 11	-
11	-	1	Part 12	-
12	T102934	2	Clamp	-
13	19M7932	3	Cap Screw	M8 X 16
14	12M7065	2	Lock Washer	8 mm
15	AR73144	1	Relay	-
16	14H785	2	Nut	5/16"
17	14H631	1	Nut	0.190"
18	M40333	4	Lock Nut	6.350 mm (1/4"), (CLUTCH DISCONNECT)
19	T83060	4	Screw	6.350 X 19.050 mm (1/4" X 3/4")
20	L38138	1	Elec. Connector Housing	Key Switch
21	24M7238	3	Washer	8.700 X 17 X 2 mm
22	AT162180	1	Switch	(MOMENTARY) (LOAD LEVER)
23	99M7064	3	Fuse	(MFWD/ALT, DIFF LOCK)
24	57M7121	5	Fuse	(MONITOR/GAUGES, AUX, START, FNR/PARK, RTD/BEACON, PUMP)
25	99M7065	3	Fuse	(FUEL/ETHER/BACKUP ALARM, WIPERS, REAR LIGHTS)
26	57M7120	1	Fuse	(TURN/STOP, FLASHER/HORN)
27	99M7069	1	Fuse	(FRONT LIGHTS/ TAIL LIGHTS)
28	24M7239	1	Washer	10.700 X 21 X 2.500 mm
29	14M7274	1	Nut	M10
30	24H1288	1	Washer	9/32" X 1" X 1/16"
31	14H850	1	NUT	1/4"

Side Console Wiring Harnesses (ROPS) (872329 - )

Нет текстового описания
