Открытый узел

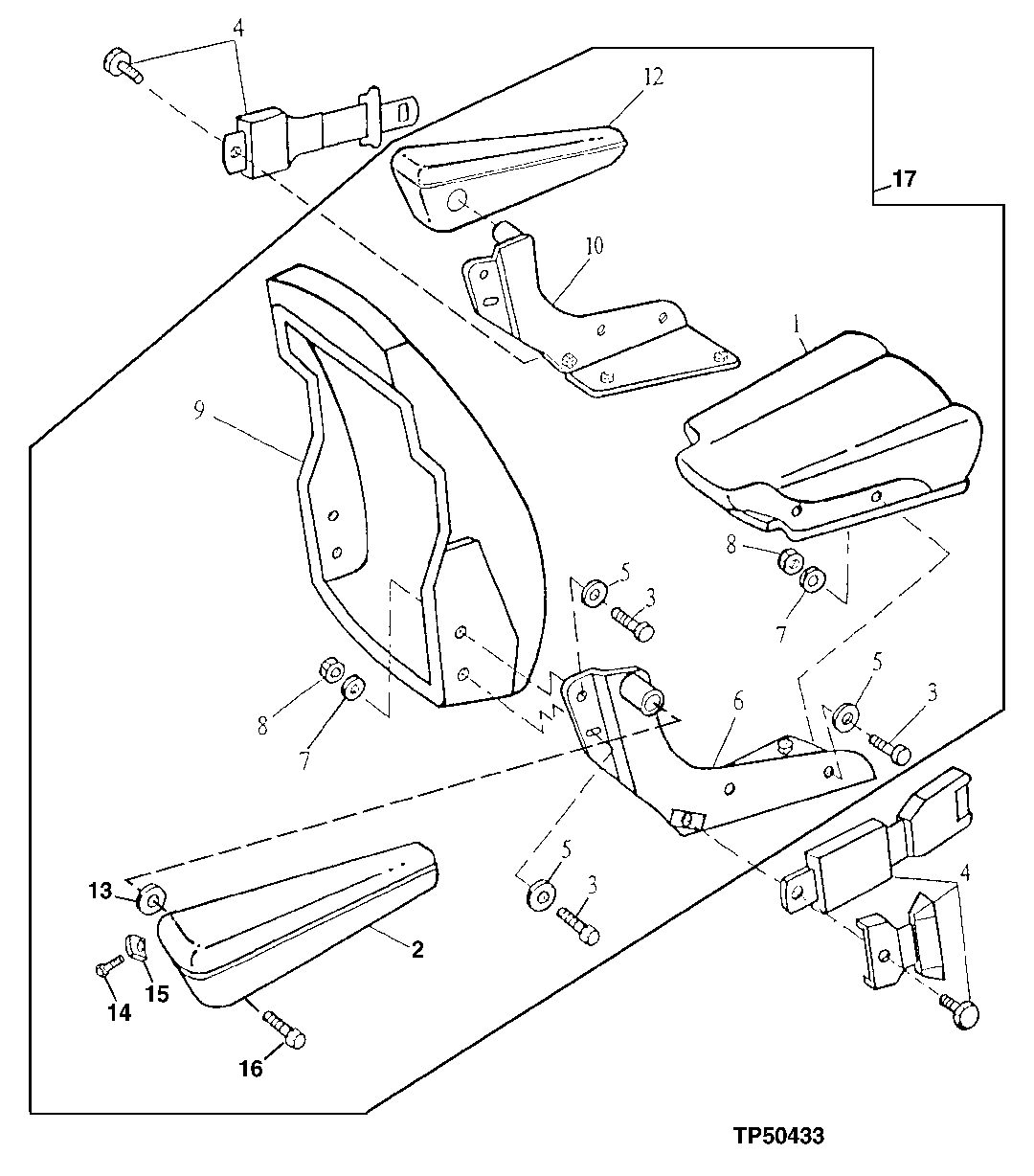

Seat Cushions, Slides and Arm Rests ( - 825589)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT141286	1	Cushion	Vinyl
1	AT139858	1	Cushion	Cloth
2	AT146058	1	Armrest	Black, (RH)
2	AT312730	1	Armrest Kit	Black, (RH) (INCLUDES ATTACHING HARDWARE) (SUB FOR AT183637 AND AT186152)
3	19H2676	8	Cap Screw	3/8" X 1", 3/8 in. X 1 in., (HS, SAE 8)
4	AT172910	1	Seat Belt	2 in., (ALSO ORDER AT172779) (SUB FOR AT145740)
4	AT172903	1	Seat Belt	3 in., (SUB FOR AT148422)
5	24H1305	8	Washer	13/32" X 13/16" X 0.065"
6	AT175955	1	Bracket	(RH) (SUSPENSION SEAT) (SUB FOR AT146060)
6	AT175349	1	Bracket	(RH) (SUSPENSION SEAT)
6	AT175349	1	Bracket	(RH) (NON-SUSPENSION) (SUB FOR AT151939)
7	12H304	8	Lock Washer	3/8"
8	14H812	8	NUT	3/8"
8	N10215	8	Lock Nut	9.525 mm (3/8")
9	AT158425	1	Seat Back	(CLOTH) (WITH ADJUSTING LUMBAR)
9	AT175443	1	Seat Back	(VINYL) (SUSPENSION) (WITH ADJUSTING LUMBAR)
9	AT141283	1	Seat Back	(VINYL) (NON-SUSPENSION AND SUSPENSION) (W/O ADJUSTING LUMBAR)
10	AT175954	1	Bracket	(LH) (SUSPENSION SEAT) (SUB FOR AT146059)
10	AT175348	1	Bracket	(LH) (SUSPENSION SEAT)
10	AT175348	1	Bracket	(LH) (NON-SUSPENSION) (SUB FOR AT151940)
11	T140401	1	Bracket	(USE W/ 3 INCH SEAT BELT) (NOT ILLUSTRATED)
12	AT146057	1	Armrest	Black, (LH)
12	AT312728	1	Armrest Kit	Black, (LH) (INCLUDES ATTACHING HARDWARE) (SUB FOR AT183638 AND AT186156)
13	T120545	2	Washer	-
14	T120543	2	Screw	-
15	T120540	1	Cover	(RIGHT SEAT)
15	T120541	1	Cover	(LEFT SEAT)
16	T120544	2	Screw	-
17	AT173704	1	Seat	Vinyl Brown, (NON-SUSPENSION) INCLUDES SEAT BASE, SWIVEL AND SLIDE)
17	AT173705	1	Seat Suspension	Vinyl Brown, (SUSPENSION) INCLUDES SEAT BASE, SWIVEL AND SLIDE)
17	AT173706	1	Seat Suspension	Cloth Brown, (SUSPENSION) ( INCLUDES SEAT BASE, SWIVEL AND SLIDE)
