Replacement Backhoe Buckets And Pins

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

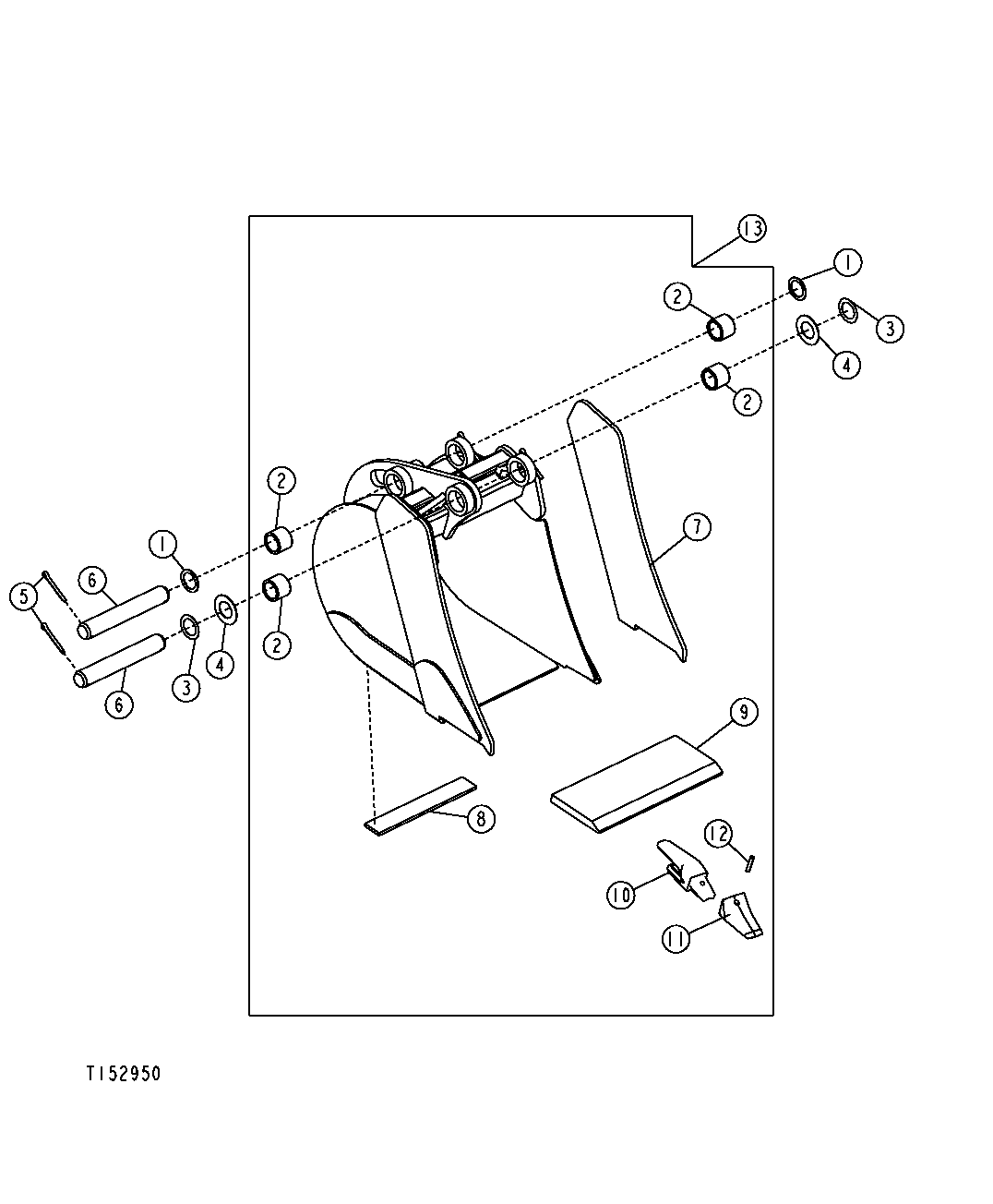

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U43779	2	WASHER	-
2	U45351	4	Bushing	-
3	24H1616	2	Washer	2-9/16" X 3-3/4" X 0.036"
4	T125956	2	Washer	-
5	11H277	4	COTTER PIN	1/2" X 4"
6	T126041	2	Pin Fastener	-
7	T163758	8	Plate	(A)
7	T163781	2	Plate	(B)
8	T163804	8	Plate	(USE W/ SEVERE DUTY BUCKET)
9	T148602	1	Dura-Max Cutting Edge	(A) (CTL)
9	T148753	1	Dura-Max Cutting Edge	(B) (CTL)
10	T109X220	1	Bucket Tooth Adapter	(B)
10	U43792	1	Bucket Tooth Adapter	(A)
11	TF23D	1	Tooth	(A) (ALSO ORDER TF23P)
11	TF220	1	Tooth	(B) (ALSO ORDER TP160)
12	TF23P	1	Pin	(A)
12	TP160	1	Pin	(B)
13	AT197744	1	Backhoe Bucket	(A) 457mm (18 in.) 7.5 CUBIC FEET, Heavy Duty Whole Goods
13	AT197745	1	Backhoe Bucket	(B) 457mm (18 in.) 7.5 CUBIC FEET, Severe Duty
13	AT197746	1	Backhoe Bucket	(A) 610mm (24 in.) 11.0 CUBIC FEET, Heavy Duty Whole Goods
13	AT197747	1	Backhoe Bucket	(B) 610mm (24 in.) 11.0 CUBIC FEET, Severe Duty
13	AT197748	1	Backhoe Bucket	(A) 762mm (30 in.) 14.5 CUBIC FEET, Heavy Duty Whole Goods
13	AT197749	1	Backhoe Bucket	(B) 762mm (30 in.) 14.5 CUBIC FEET, Severe Duty
13	AT197750	1	Backhoe Bucket	(A) 914mm (36 in.) 18.0 CUBIC FEET, Heavy Duty Whole Goods
13	AT197751	1	Backhoe Bucket	(B) 914mm (36 in.) 18.0 CUBIC FEET, Severe Duty
