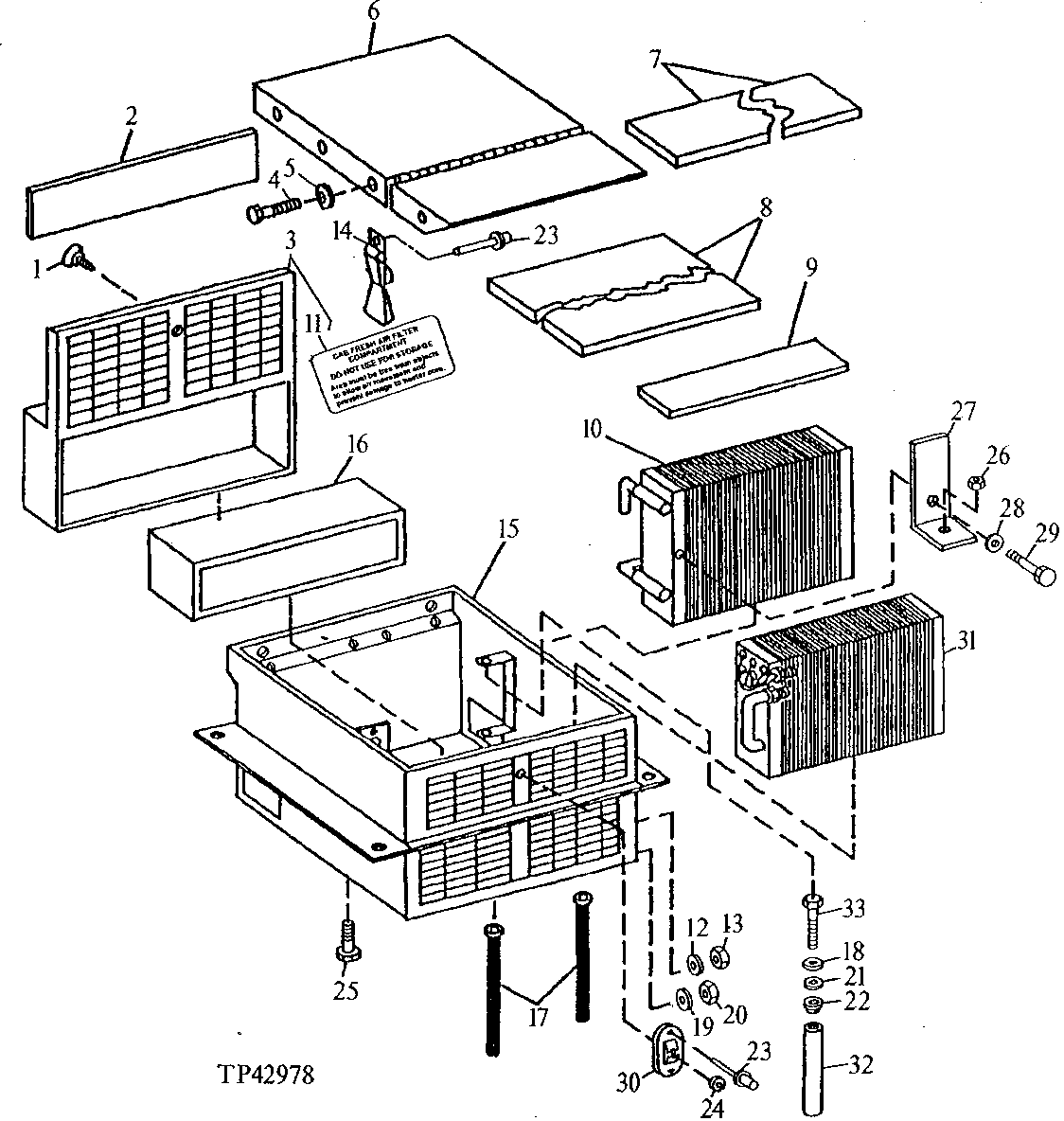

Rear Entry Cab Heater and Air Conditioning Unit Components ( - 816286)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T133399	1	Wing Screw	-
2	T133239	1	Air Filter	-
3	AT145599	1	Frame	-
4	19M7938	4	Cap Screw	M10 X 20
5	24M7028	4	Washer	10.500 X 20 X 2 mm
6	AT141214	1	Cover	-
7	T134495	1	Seal	Small
8	T134494	1	Seal	Large
9	T134490	1	Seal	-
10	AT141207	1	Core	-
11	T141484	1	Label	Fresh Air Filter
12	12H247	1	Lock Washer	5/8", With Air Conditioning
13	14H866	1	Nut	5/8", With Air Conditioning
14	AT145602	2	Retainer	-
15	AT164420	1	Case	(SUB FOR AT145590)
16	AT141209	1	Air Filter	-
17	H99452	2	Plug	Without Air Conditioning, (SUB FOR (2) M2655T)
17	AT168138	2	Tube	Drain With Air Conditioning, (SUB FOR AT145600)
18	24H1287	2	Washer	9/32" X 5/8" X 0.065"
19	12H328	1	Lock Washer	7/8", With Air Conditioning
20	C985R	1	NUT	22.225 mm (7/8"), With Air Conditioning
21	M74794	2	Washer	7.200 X 24.100 X 3.200 mm (0.283" X 0.949" X 0.126")
22	T142704	2	Round Retainer	-
23	AT44195	6	Rivet	(SUB FOR M86758)
24	T142718	1	Washer	-
25	19M7865	8	Screw	M8 X 16
26	14M7272	1	Nut	M6
27	T142703	1	Angle	-
28	24H1287	1	Washer	9/32" X 5/8" X 0.065"
29	19M8332	1	Cap Screw	M6 X 90
30	T142706	1	Nut	-
31	AT164840	1	Heat Exchanger	With Air Conditioning, (SUB FOR AT141206)
32	AT145601	1	Resistor	-
33	T142714	1	Cap Screw	-

Rear Entry Cab Heater and Air Conditioning Unit Components ( - 816286)
