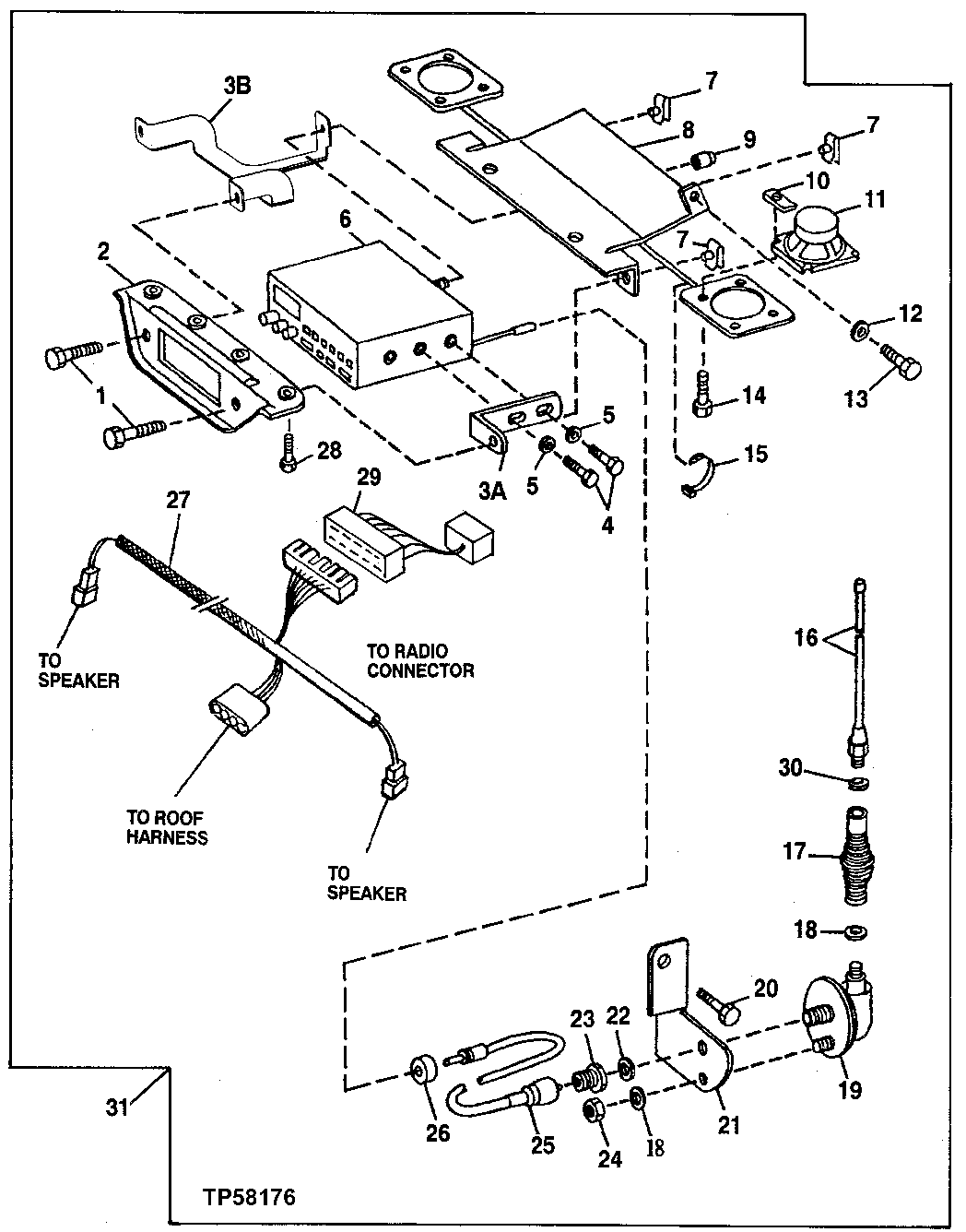

Radio, Antenna, Speakers and Wire Harness (For Use w/ Cab Only)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T133674	2	Self-Locking Screw	-
2	T142250	1	Panel	-
4	21M7265	4	Screw	M5 X 12
5	24H1283	4	Washer	7/32" X 1/2" X 0.049"
6	-	1	Part 7	(AT148348 NLA) (SUB RE190139) (ALSO ORDER T184860 AND AT191243)
6	RE190139	1	Radio	AM /FM Stereo, (SUB FOR AH167570, THIS APPLICATION) (SUB FOR AT192754)
7	M84972	10	Nut	-
8	AT151112	1	Plate	Radio /Speaker Mounting
9	T142434	1	Bushing	-
10	BP13712	8	Nut	-
11	R99016	2	Speaker	Radio
12	24M7100	1	Washer	6.600 X 22 X 2 mm, (SUB FOR 24M7139)
13	19M7933	1	Cap Screw	M6 X 25
14	19H1227	8	Cap Screw	1/4" X 1/2"
15	R44302	4	Tie Band	-
16	AR104516	1	Antenna	-
17	AR104518	1	Spring	-
18	12H302	2	Lock Washer	1/4"
19	RE61648	1	BASE	(SUB FOR AR104517)
20	19M7938	1	Cap Screw	M10 X 20
21	T140598	1	Bracket	-
22	12H292	1	Lock Washer	1/2"
23	R76695	1	Nut	-
24	14H786	1	Nut	1/4"
25	AT151111	1	Antenna Cable	-
26	T74952	1	Grommet	-
27	AT150707	1	Wiring Harness	-
28	T134895	7	Self-Locking Screw	-
29	AT191243	1	Radio Speaker WRG Harness	-
30	12H310	1	Lock Washer	3/8"
31	AT178643	1	Radio	For Use With Cab Only, (SUB FOR AT157285)
3A	T142249	2	Angle	-
3B	T184860	1	Bracket	-

Radio, Antenna, Speakers and Wire Harness (For Use w/ Cab Only)
