Park Brake/Differential Lock Solenoid Valve and Fittings ( - 872328)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	-	1	Part 2	(ORDER AT139434)
3	-	1	Part 3	(ORDER AT139434)
4	AT147011	1	Solenoid	-
4	AT139434	1	Housing Kit	Cover
5	T147956	2	Screen	-
6	AT164451	1	Solenoid Valve	Park Brake
7	RE32530	1	Solenoid Valve	-
8	R26375	1	O-Ring	-
9	-	1	Part 10	(ORDER AT139434)
10	R28776	1	O-Ring	-
11	R42926	1	Back-Up Ring	-
12	R33259	1	O-Ring	-
13	T81247	1	Back-Up Ring	-
14	R47151	1	O-Ring	-
15	AT162873	1	Pressure Relief Valve	-
16	R28776	1	O-Ring	-
17	R42926	1	Back-Up Ring	-
18	R47151	1	O-Ring	-
19	AT162748	1	Pressure Relief Valve	-
20	24M7239	2	Washer	10.700 X 21 X 2.500 mm
21	19M8166	2	Cap Screw	M10 X 110
22	R28782	2	O-Ring	-
23	38H1003	1	Elbow Fitting	-
24	T77814	1	O-Ring	-
25	R26375	1	O-Ring	-
26	38H1161	1	Adapter Fitting	-
27	T77857	1	O-Ring	-
28	R26448	2	O-Ring	-
29	R27218	2	Fitting Plug	-
30	R26448	3	O-Ring	-
31	AT171587	1	Tee Fitting	-
32	T77814	1	O-Ring	-
33	AT171890	1	Pressure Relief Valve	-
34	T148791	1	Screen	-
35	38H1004	1	Elbow Fitting	-
36	T77613	1	O-Ring	-
37	T40308	1	O-Ring	-
38	T57374	1	Back-Up Ring	-
39	T81247	1	Back-Up Ring	-
40	R33259	1	O-Ring	-
41	R47151	1	O-Ring	-
42	AT139432	1	Hyd Actuated Control Valve	-
43	AT147011	1	Solenoid	Differential Lock, (ALSO ORDER R78054 AND R78064)
44	AT139434	1	Housing Kit	-
45	T148802	1	Back-Up Ring	-
46	T148801	1	O-Ring	-
47	R26375	1	O-Ring	-
48	AT162749	1	Check Valve	-
49	R28776	1	O-Ring	-
50	R42926	1	Back-Up Ring	-
51	R47151	1	O-Ring	-
52	AT162750	1	Solenoid Valve	-
53	AT147011	1	Solenoid	Park Brake
54	AT139434	1	Housing Kit	-
55	AT150024	1	Switch	Brake Light Switch
56	T40308	1	O-Ring	-
57	T147761	2	Orifice	-
58	T57374	1	Back-Up Ring	-
59	AT157251	1	Elec.Proportional Valve	-

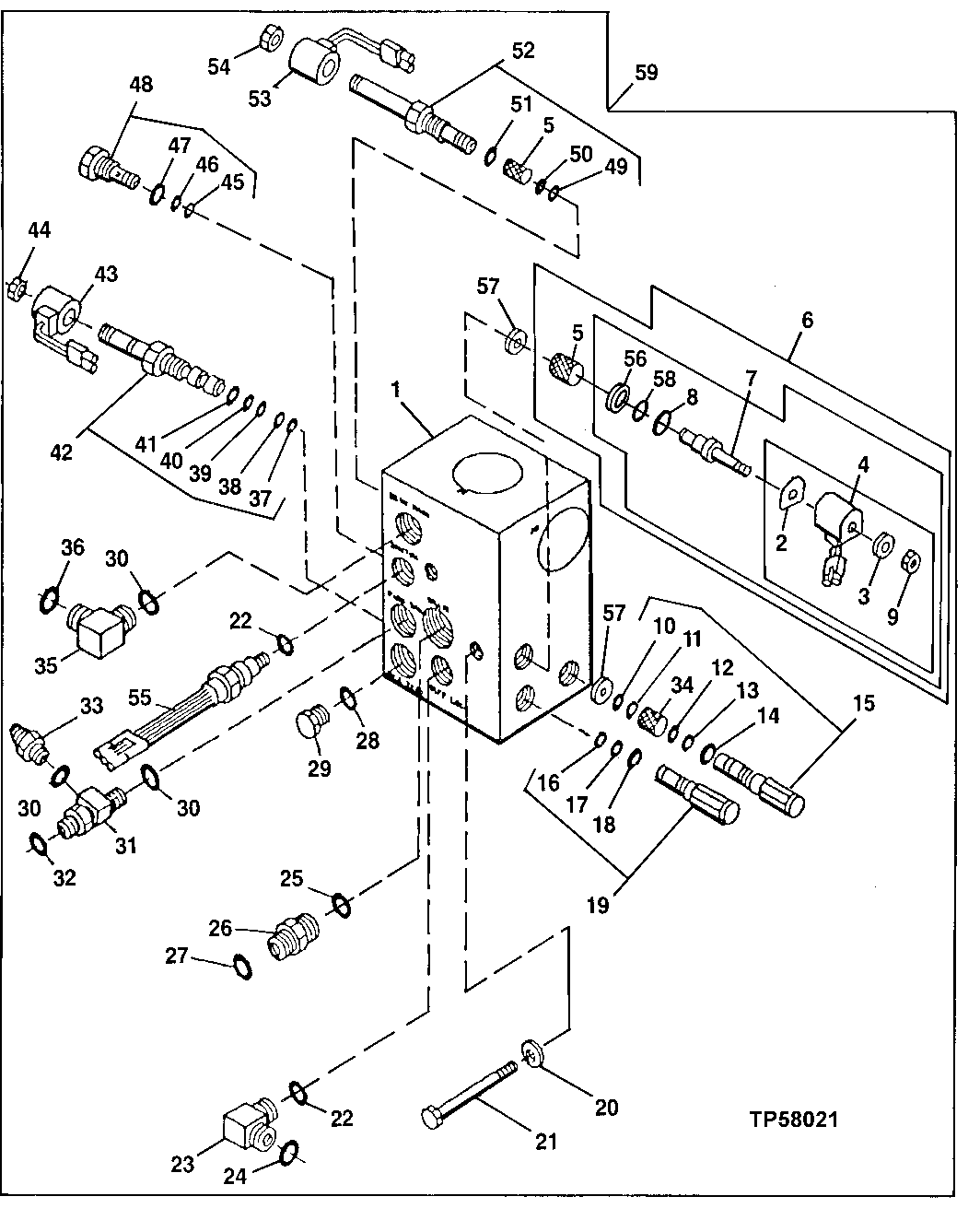

Park Brake/Differential Lock Solenoid Valve and Fittings ( - 872328)
