LOADER CONTROL VALVE TO BUCKET CYLINDER HYDRAULICS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH154792	1	Hydraulic Cylinder	(BUCKET LIFT) (SUB FOR RE37702)
2	U12547	2	O-Ring	-
3	AT181300	1	Elbow Fitting	(SUB FOR AT164364) (SUB FOR 38H1007, THIS APPLICATION)
4	T77858	12	O-Ring	-
5	19M7358	1	Cap Screw	M10 X 40
6	T125519	1	Strap	-
7	28H1523	1	Bushing	0.493" X 0.675" X 13/16"
8	AT117688	1	Hydraulic Hose	1-13/16" X 1118 mm (44") X 1-13/16", (SUB FOR AT117687, THIS APPLICATION)
9	AT132717	1	Oil Line	-
10	AT117688	1	Hydraulic Hose	1-13/16" X 1118 mm (44") X 1-13/16"
11	38H1163	1	Adapter Fitting	-
12	19M7358	1	Cap Screw	M10 X 40
13	T27022	1	Clamp	-
14	28H1523	1	Bushing	0.493" X 0.675" X 13/16"
15	AT159822	1	Line	-
16	AT159823	1	Line	-
17	19M7938	3	Cap Screw	M10 X 20
18	T27022	3	Clamp	-
19	19M7358	1	Cap Screw	M10 X 40
20	U46753	2	Hose Clamp	-
21	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
22	14M7274	1	Nut	M10
23	AT160586	2	Hydraulic Hose	30.1752" X 1206 mm (47-1/2") X 30.1752"
24	19M7572	1	Cap Screw	M10 X 45
25	T27022	1	Clamp	-
26	28H1523	1	Bushing	0.493" X 0.675" X 13/16"
27	14M7274	1	Nut	M10
28	19M7550	1	Cap Screw	M10 X 35
29	R46919	2	Half Clamp	-
30	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
31	14M7274	1	Nut	M10
32	AT160072	1	Line	-
33	AT160073	1	Line	-
34	38H1007	1	Elbow Fitting	-
35	U12547	1	O-Ring	-
36	38H1163	1	Adapter Fitting	-
37	U12547	1	O-Ring	-
38	AT164709	1	Oil Line	-
39	AT159001	1	Spool Valve	Loader Control

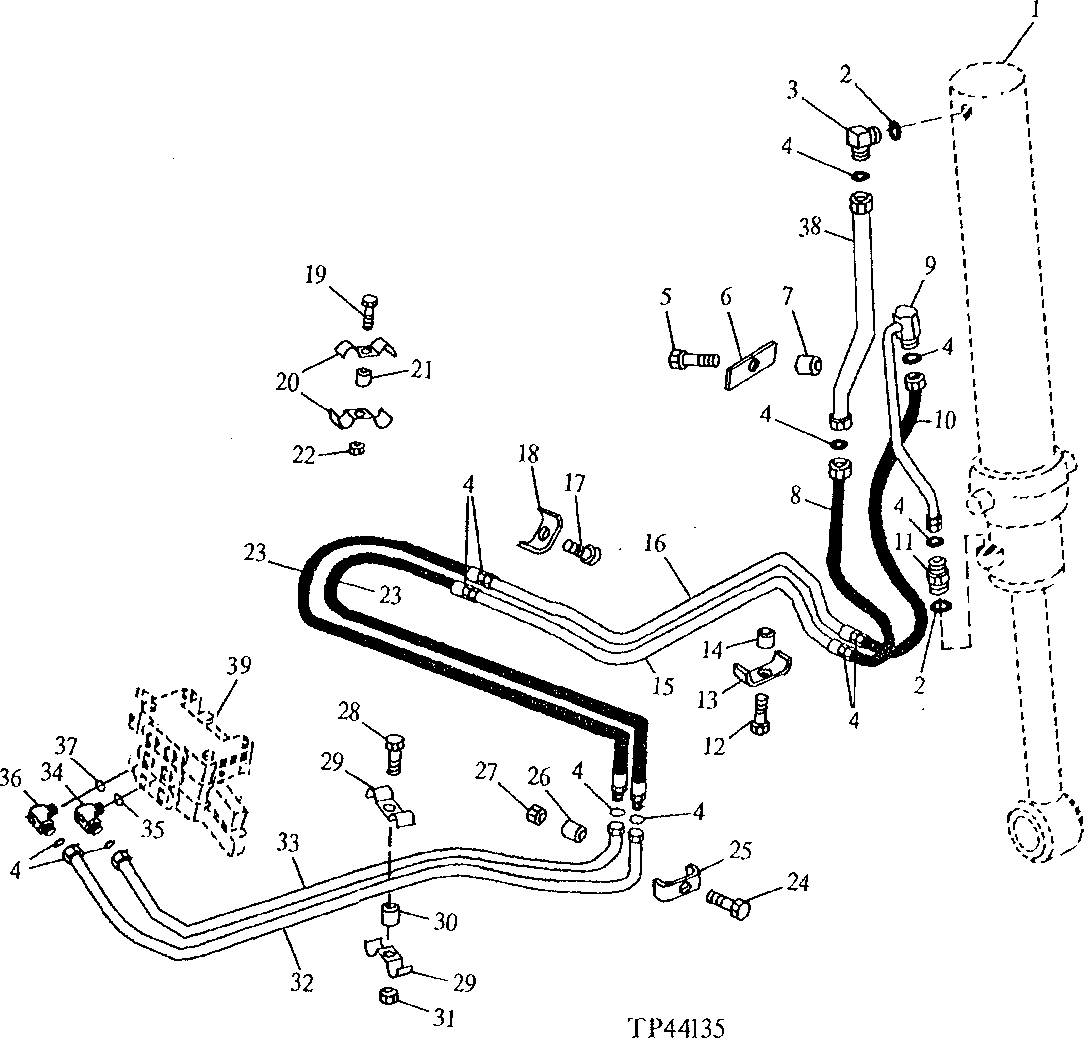

LOADER CONTROL VALVE TO BUCKET CYLINDER HYDRAULICS
