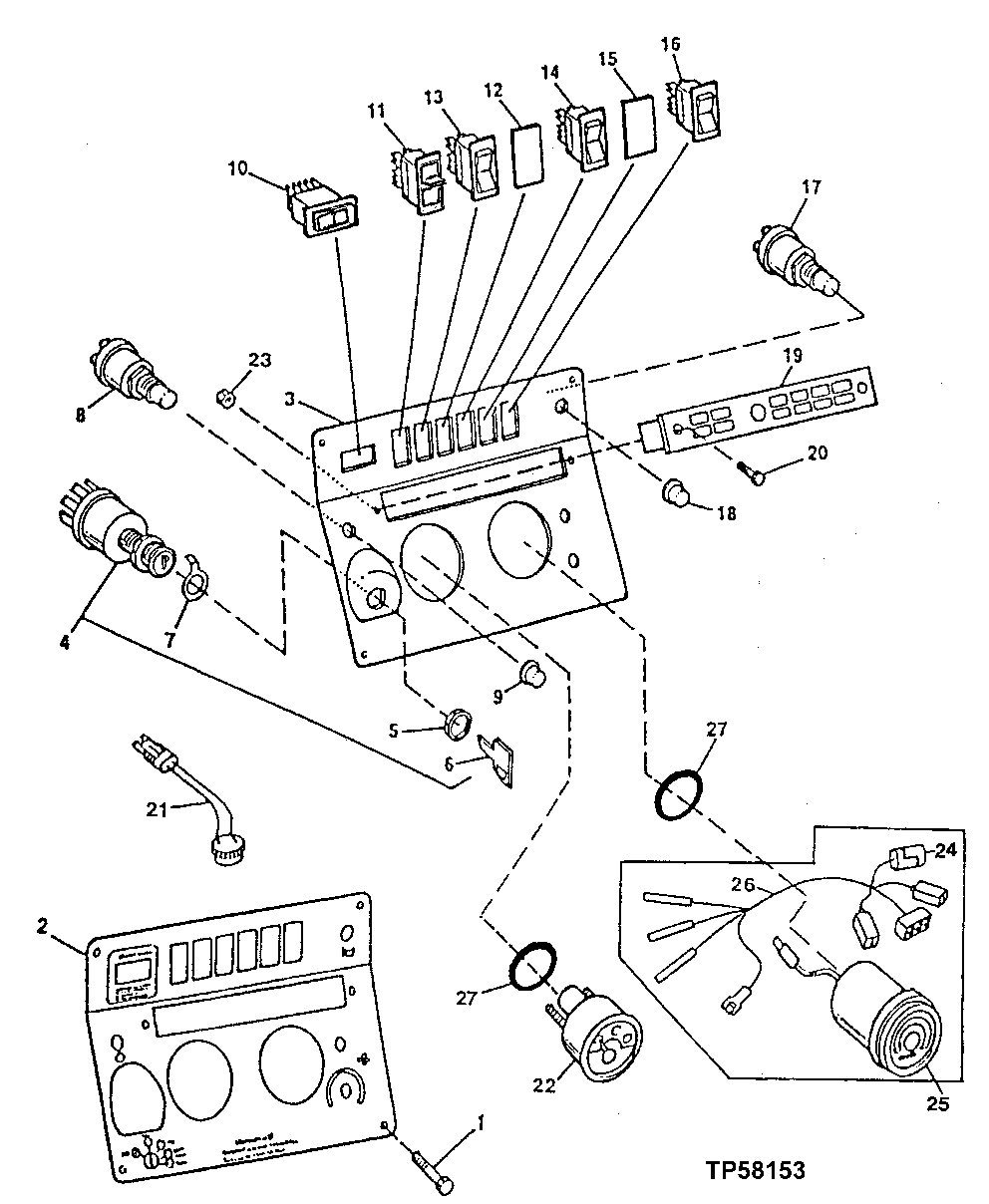

Instrument Panel Side Console (ROPS) (872329 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1406	4	Screw	0.190" X 3/4"
2	T166684	1	Label	Instrument Panel, (SUB FOR T160220)
3	AT175055	1	Instrument Panel	-
4	AT195301	1	Switch	Key, (SUB FOR AT145931)
5	R44342	1	Nut	-
6	AT145929	1	Key	(SET OF 2)
7	R52725	1	Electrical Connector Assy	Ground
8	R39554	1	Switch	Starting Aid
9	T55585	1	Cap	(W/ STARTING AID)
9	T154361	1	Plug	(W/O STARTING AID)
10	AT189088	1	Switch	Park Brake, (SUB FOR AT174889, THIS APPLICATION)
11	AT175297	1	Switch	(MFWD)
11	-	1	Part 13	(SUB T207060) (T163309 NLA)
12	-	1	Part 14	(SUB T207060) (T163309 NLA)
13	AT175603	1	Toggle/Rocker Switch	(ROTATING BEACON)
13	-	1	Part 16	(SUB T207060) (T163309 NLA)
14	-	1	Part 19	(SUB T207060) (T163309 NLA)
14	T162380	1	Bulb	-
14	AT175604	1	Switch	Auxiliary Hydraulics
15	-	1	Part 20	(SUB T207060) (T163309 NLA)
16	AT174891	1	Switch	Rear Lights
17	R39554	1	Switch	Horn
18	T55501	1	Cap	Horn
19	AT184591	1	Monitor	(FAULT / DISPLAY) (USE IF AVAILABLE) (WHEN NLA) (SUB AT199057)
19	AT199057	1	Monitor	(FAULT / DISPLAY)
19	57M7102	2	Bulb	-
20	T82791	2	Screw	-
21	AT171958	1	Audible Warning Alarm	-
22	AT104809	1	Gauge	Fuel
22	AR62407	1	Bulb	-
23	T82792	2	Nut	-
24	AR94101	1	Diode	Tachometer
25	AT302762	1	KIT	(SUB FOR AT185386)
26	AT302762	1	KIT	(SUB FOR AT185388)
27	T100659	2	Grommet	-

Instrument Panel Side Console (ROPS) (872329 - )
