HYDRAULIC PUMP AND STROKE CONTROL VALVE OVERHAUL KIT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R47154	16	O-Ring	-
2	RE17525	2	RETAINER	-
3	R56751	16	O-Ring	-
4	RE28790	1	SEAL	-
5	R28782	1	O-Ring	-
6	U12037	4	O-Ring	(OUTLET PORTS)
7	R26375	1	O-Ring	-
8	U10746	2	O-Ring	-
9	R77611	2	SEALING WASHER	(UNIVERSAL KIT - APPLICATIONS WILL VARY) (SEALING)
10	R89332	2	O-Ring	-
10	R80612	2	PACKING	-
11	32246	2	O-Ring	-
12	R29936	1	O-Ring	-
13	R29936	1	O-Ring	(UNIVERSAL KIT - APPLICATIONS WILL VARY) (THREADED O-RING PORT)
13	U12331	1	O-Ring	(UNIVERSAL KIT - APPLICATIONS WILL VARY) (FOUR BOLT FLAT-FACE PORT)
14	R33259	4	O-Ring	-
15	R112857	1	O-Ring	-
16	32246	2	O-Ring	-
17	T57247	1	O-Ring	(UNIVERSAL KIT - APPLICATIONS WILL VARY) Load Sense
17	32246	1	O-Ring	(UNIVERSAL KIT - APPLICATIONS WILL VARY) (PRESSURE COMPENSATED)
18	R26448	1	O-Ring	-
19	R56751	1	O-Ring	-
20	R26375	1	O-Ring	-
21	R26448	2	O-Ring	-
22	R26448	1	O-Ring	-
23	R26375	1	O-Ring	(UNIVERSAL KIT - APPLICATIONS WILL VARY) Load Sense
24	R26448	1	O-Ring	(UNIVERSAL KIT - APPLICATIONS WILL VARY) Load Sense
25	R26448	1	O-Ring	(UNIVERSAL KIT - APPLICATIONS WILL VARY) Load Sense
26	T57374	1	Back-Up Ring	(UNIVERSAL KIT - APPLICATIONS WILL VARY) (PRESSURE COMPENSATED)
27	T40308	1	O-Ring	(UNIVERSAL KIT - APPLICATIONS WILL VARY) (PRESSURE COMPENSATED)
28	R26375	1	O-Ring	(UNIVERSAL KIT - APPLICATIONS WILL VARY) (PRESSURE COMPENSATED)
29	R36358	1	Back-Up Ring	(UNIVERSAL KIT - APPLICATIONS WILL VARY) (PRESSURE COMPENSATED)
30	T17951	1	O-Ring	(UNIVERSAL KIT - APPLICATIONS WILL VARY) (PRESSURE COMPENSATED)
31	RE33540	1	KIT	-
31	RE58304	1	KIT	-

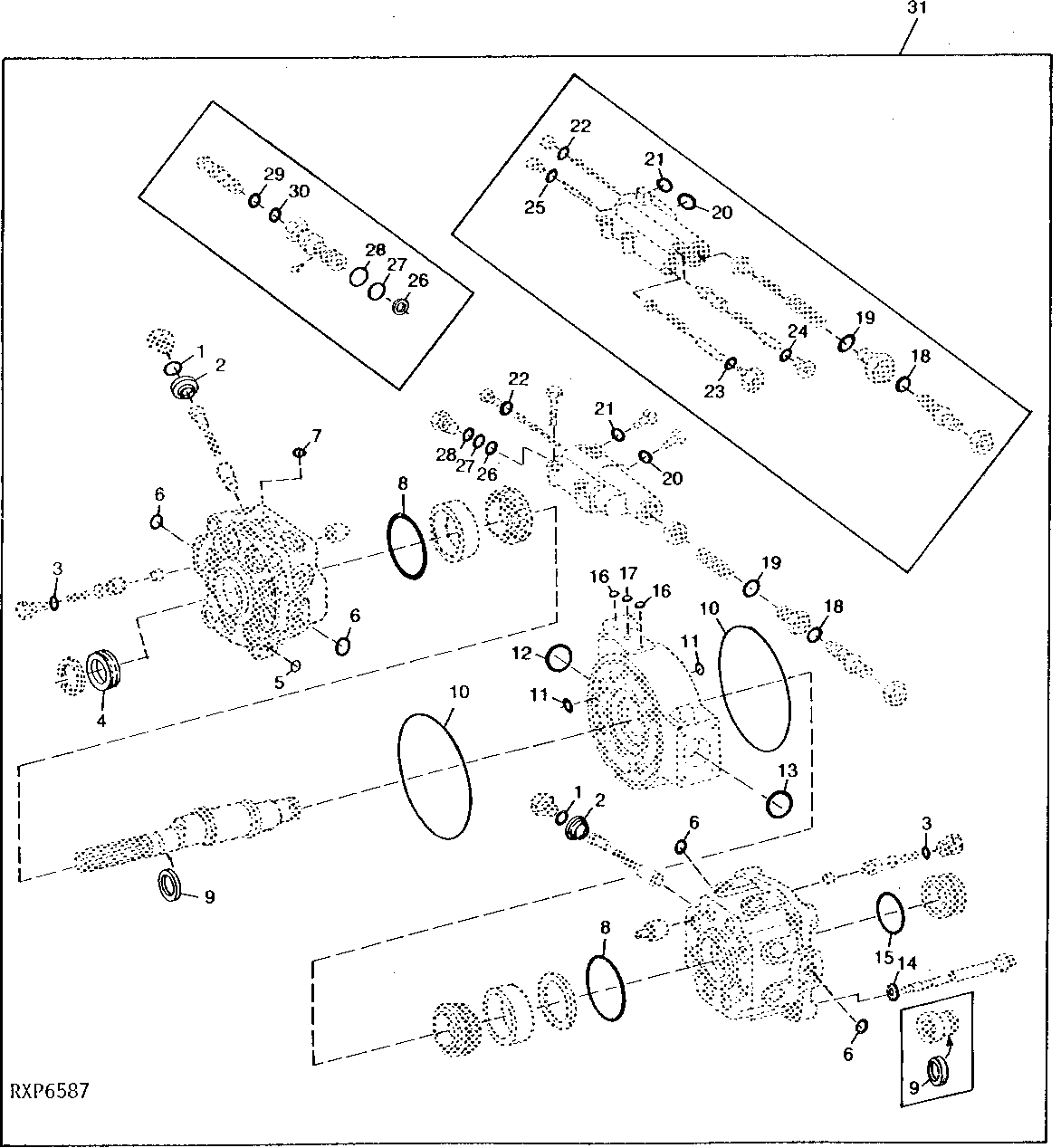

HYDRAULIC PUMP AND STROKE CONTROL VALVE OVERHAUL KIT

Нет текстового описания
