Crankshaft, Idler Gears / Main Bearings ( - 713822)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE44574	1	Seal	-
2	R48685	1	Dowel Pin	(SUB FOR A120R)
3	26H72	1	Shaft Key	1/8" X 5/8"
4	T20094	1	Helical Gear	24 TEETH
5	-	1	Part 5	(RE45541 MARKED) (R108679 NLA) (SUB FOR AT22562) (MARKED T22562) (SUB FOR RE54130)
6	T26324	2	THRUST WASHER	-
7	R109863	1	Shaft	(SUB FOR R89824)
8	34H283	1	Spring Pin	3/16" X 1-1/8"
9	T20034	1	Bushing	-
10	AR91660	1	Gear	55 TEETH, (MARKED R70182)
11	T26326	2	THRUST WASHER	-
12	T26327	1	Screw	-
13	T20046	1	Oil Slinger	-
14	AR67942	1	Seal	-
15	19H3183	1	CAP SCREW	1/2" X 2-1/8", 1/2 in. X 2-1/8 in., (HS, SAE 8)
16	R100105	1	Washer	-
17	T26321	1	Bushing	-
18	AT24252	1	GEAR	45 TEETH, (MARKED T26322)
19	34H286	1	Spring Pin	3/16" X 1-1/2"
20	AT21140	6	Bearing	(STANDARD) (SET OF (2), (T23214)
20	AT21110	6	BEARING	0.25 mm (0.10 in.), (SET OF (2), (US T23554)
20	AT21112	6	BEARING	0.51 mm (.020 in), (SET OF (2)), Undersize, (T23556)
20	AT21114	6	BEARING	0.76 mm (.030 in.), (SET OF (2)), Undersize, (T23558)
21	AT21139	1	BEARING	(STANDARD) (SET OF (2), T23215)
21	AT21132	1	BEARING	0.25 mm (.010 in.), (SET OF (2)), (R130574)
21	AT21134	1	BEARING	0.51 mm (.020 in.), (SET OF (2)), Undersize, (T23578)
21	AT21136	1	BEARING	0.76 mm (.030 in.), (SET OF (2)), Undersize, (T23580)
22	R109863	1	Shaft	(SUB FOR R89824)
23	E69392	1	Nut	-
24	H35244	1	Ring	-
25	R81989	1	Sleeve	-

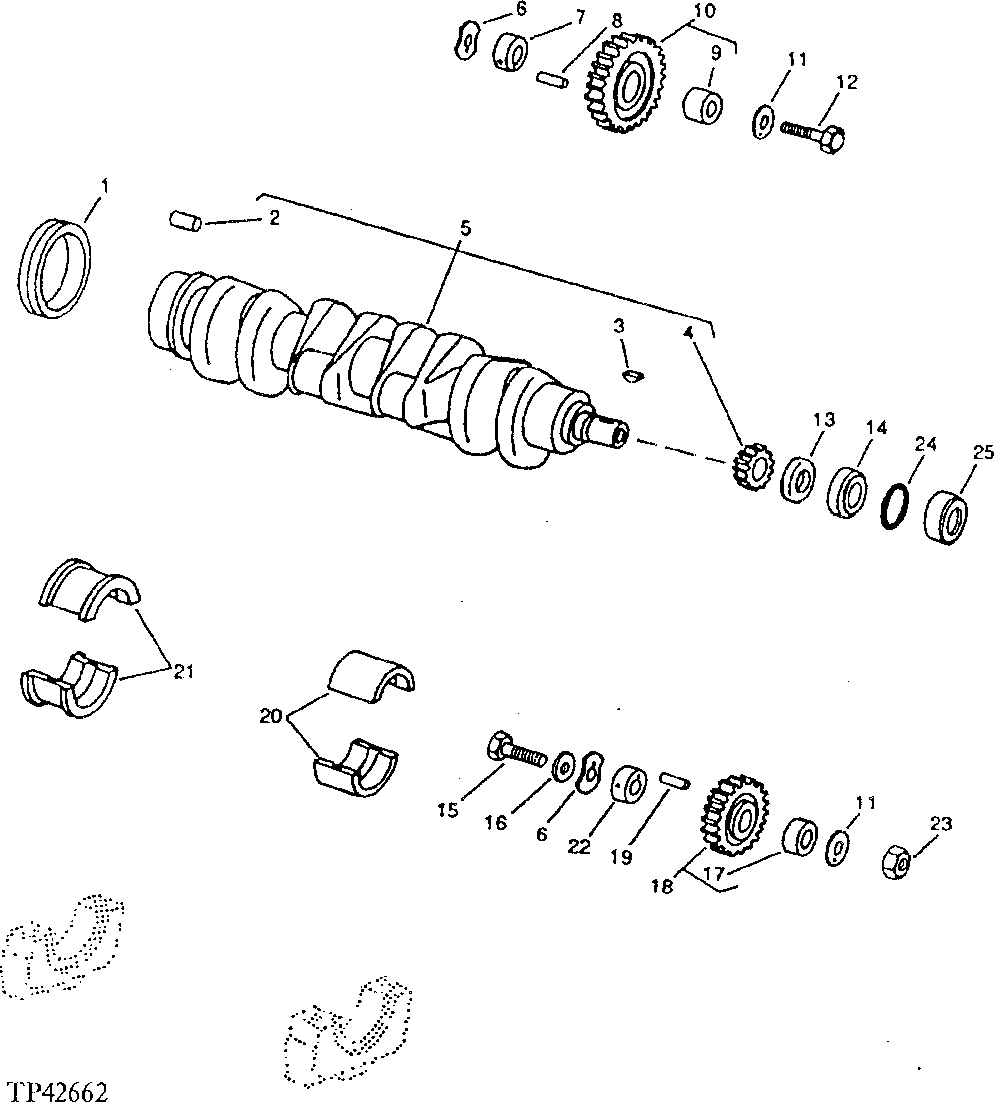

Crankshaft, Idler Gears / Main Bearings ( - 713822)
