Controlled Load Lowering Device Kit (Crown)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT176330	1	Hyd Actuated Control Valve	(CONTROLLED LOWERING DEVISE)
2	AT176331	1	Hyd Actuated Control Valve	(A) Counterbalance
2	AT176332	1	Seal Kit	(INCLUDES ALL (A) PARTS) (COUNTERBALANCE SEAL)
3	AT173884	1	Manual Hydraulic Valve	(B) Needle
3	AT173888	1	Seal Kit	(INCLUDES ALL (B) PARTS) (NEEDLE SEAL)
4	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097"), (PORT 2)
5	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64"), (DRAIN HOSE) (PORT 4 )
6	19M8081	2	Cap Screw	M10 X 80, (CLD VALVE)
7	24M7239	2	Washer	10.700 X 21 X 2.500 mm, (CLD VALVE)
8	14M7274	2	Nut	M10, (CLD VALVE)
9	AT173909	1	Hose	(DRAIN HOSE) (PORT 4)
10	AT176434	3	Clamp	Boom Cylinder
11	T158236	1	Strap	(SUPPORT CLD VALVE)
12	T157549	1	Label	Service Valve
13	R29936	3	O-Ring	29.743 X 2.946 mm (1.171" X 0.116"), (PORT 1 AND PORT 3)
14	38H1071	1	Adapter Fitting	(PORT 1)
15	38H1052	1	Elbow Fitting	(CROWD ROD END HOSE)
16	T77858	6	O-Ring	(PORT 2 - FITTING)
17	M87795	1	Tee Fitting	(DRAIN/BRAKE LINES)
18	R44302	4	Tie Band	(DRAIN HOSE AS RQUIRED)
19	TY22497	1	Hose Clamp	(PILOT HOSE TO BOOM CYLINDER)
20	T102005	2	Guide	(PILOT HOSE/CROWD HOSE)
21	T76938	3	O-Ring	(BOOM CYLINDER TEE)
22	AT176228	1	Tee Fitting	(SPECIAL TEE) (BOOM CYLINDER)
23	TY22462	3	Clamp	(SUB FOR AR48236) (RESERVOIR - TEE)
24	AT143859	1	Hydraulic Hose	(TO "U"SHAPED TUBE)
25	AT79841	1	HYDRAULIC HOSE - FABRICATE	30.1752" X 802 mm (31-1/2") X 30.1752", ("PILOT" PORT 2)
26	38H1014	1	Elbow Fitting	(PORT 2)
27	38H1037	1	Elbow Fitting	(PORT 1 - TO CYLINDER)
28	AT198035	1	Kit	Whole Goods, (CROWD CONTROLLED LOWERING DEVICE KIT) (SUB FOR AT170494)

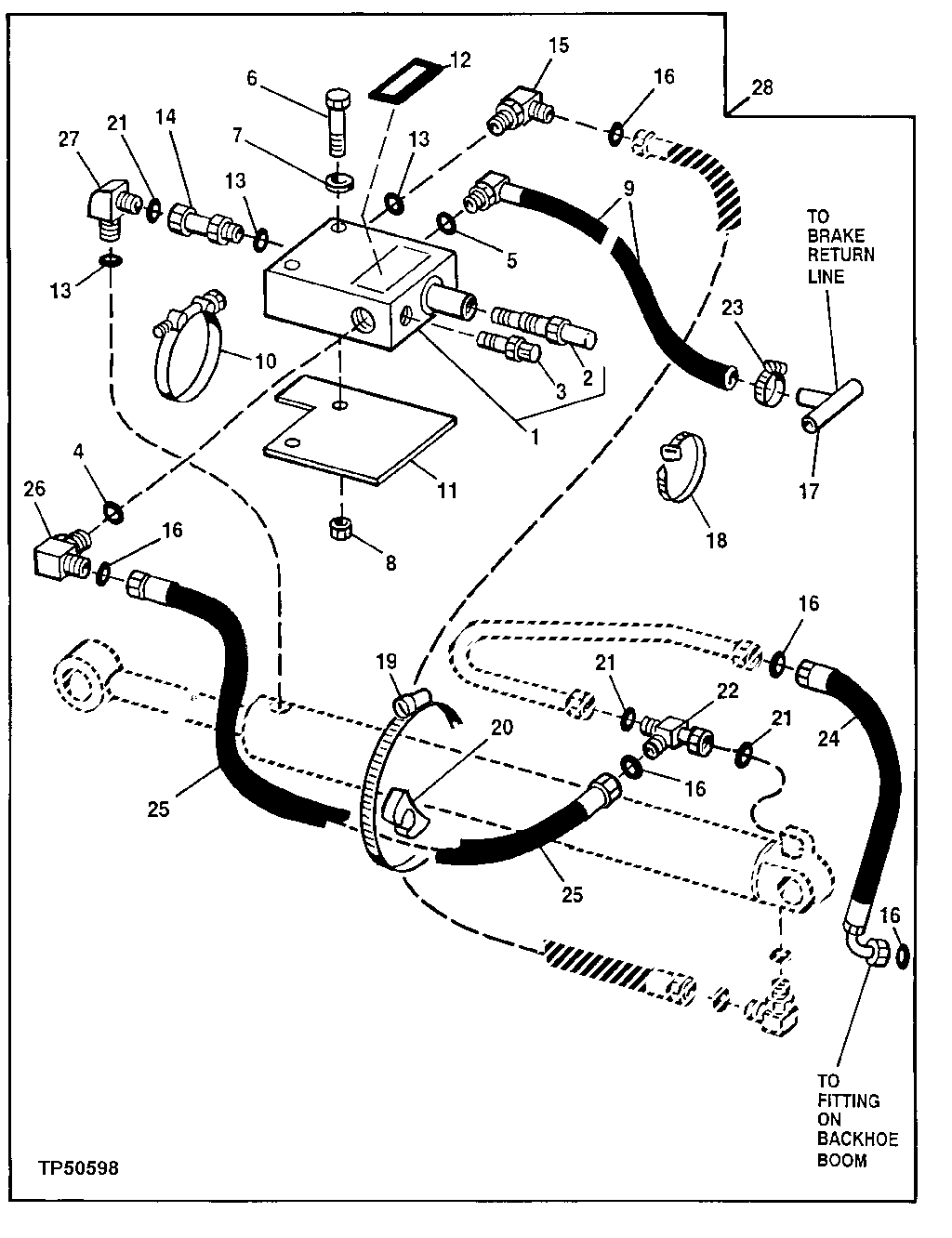

Controlled Load Lowering Device Kit (Crown)
