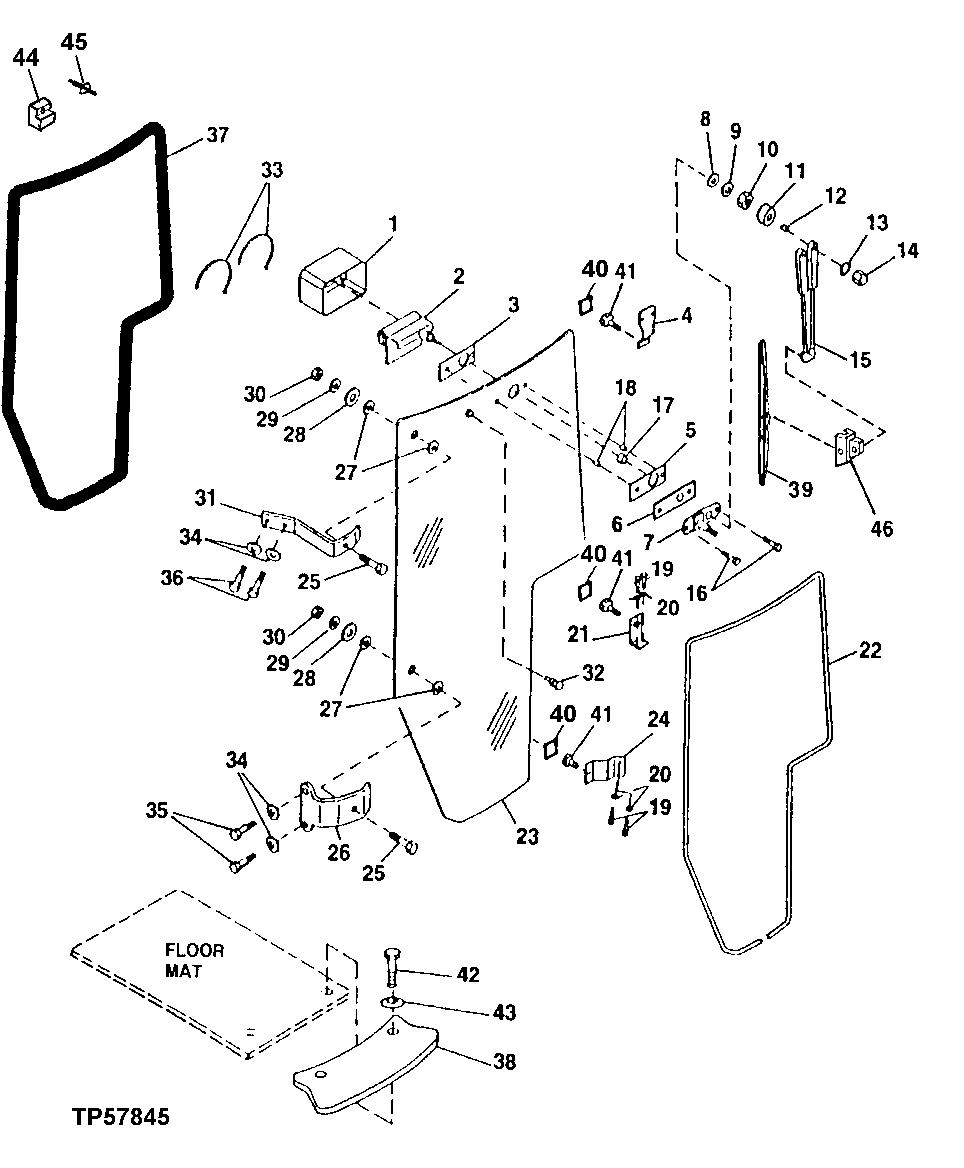

CAB ONE PIECE FRONT WINDSHIELD GLASS AND WIPER MOTOR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T151513	1	Cover	-
2	-	1	Part 2	-
3	T148472	1	Isolator	-
4	T148478	1	Plate	-
5	T148471	1	Isolator	-
6	T148470	1	Plate	-
7	RE36215	1	Plate	-
8	R63666	1	Washer	-
9	R63667	1	Washer	-
10	R63668	1	Nut	-
11	R63669	1	Cap	-
12	R63670	1	Weld Nut	-
13	T142520	1	LOCK WASHER	-
14	T142519	1	NUT	-
15	AT151124	1	Wiper Arm	-
16	T135584	1	Screw	-
17	T148473	1	Bushing	-
18	T148474	1	Bushing	-
19	19M7881	1	Screw	M8 X 20
20	24M7238	4	Washer	8.700 X 17 X 2 mm
21	T148482	1	Plate	-
22	T152648	1	Isolator	-
23	T149843	1	Windowpane	-
24	T148485	1	Plate	-
25	19M7922	2	Cap Screw	M8 X 40
26	T148454	1	Hinge	-
27	T158081	4	Washer	24 X 40 X 7 mm (0.945" X 1.575" X 0.276"), (SUB FOR L77652, THIS APPLICATION)
28	T185678	2	Washer	(SUB FOR L77651, AND T158080THIS APPLICATION)
29	24M7024	1	Washer	9 X 28 X 3 mm
30	14M7273	2	Nut	M8
31	T148453	1	Hinge	-
32	T153138	1	Plug	(USE W/ NO WINDSHIELD WASHER)
32	T153734	1	Grommet	(USE W/ WINDSHIELD WASHER OPTION)
33	M86436	2	Tie Band	-
34	24M7239	1	Washer	10.700 X 21 X 2.500 mm
35	19M7358	2	Cap Screw	M10 X 40
36	19M7662	2	Cap Screw	M10 X 30
37	AT164148	1	Isolator	-
38	T153271	1	Guard	-
39	TY16304	1	Wiper Blade	(ALSO ORDER TY25006) (FOR FIRST TIME INSTALLATION)
40	T157709	3	Pad	-
41	T153733	3	Bumper	-
42	T134895	2	Self-Locking Screw	-
43	24M7100	2	Washer	6.600 X 22 X 2 mm
44	T161902	1	Support	(SUB FOR T153981) (ALSO ORDER T163002)
45	T163002	1	Rivet	-
46	TY25006	1	Bracket	(SUB FOR TY16312) (WIPER BLADE ADAPTER)

CAB ONE PIECE FRONT WINDSHIELD GLASS AND WIPER MOTOR
