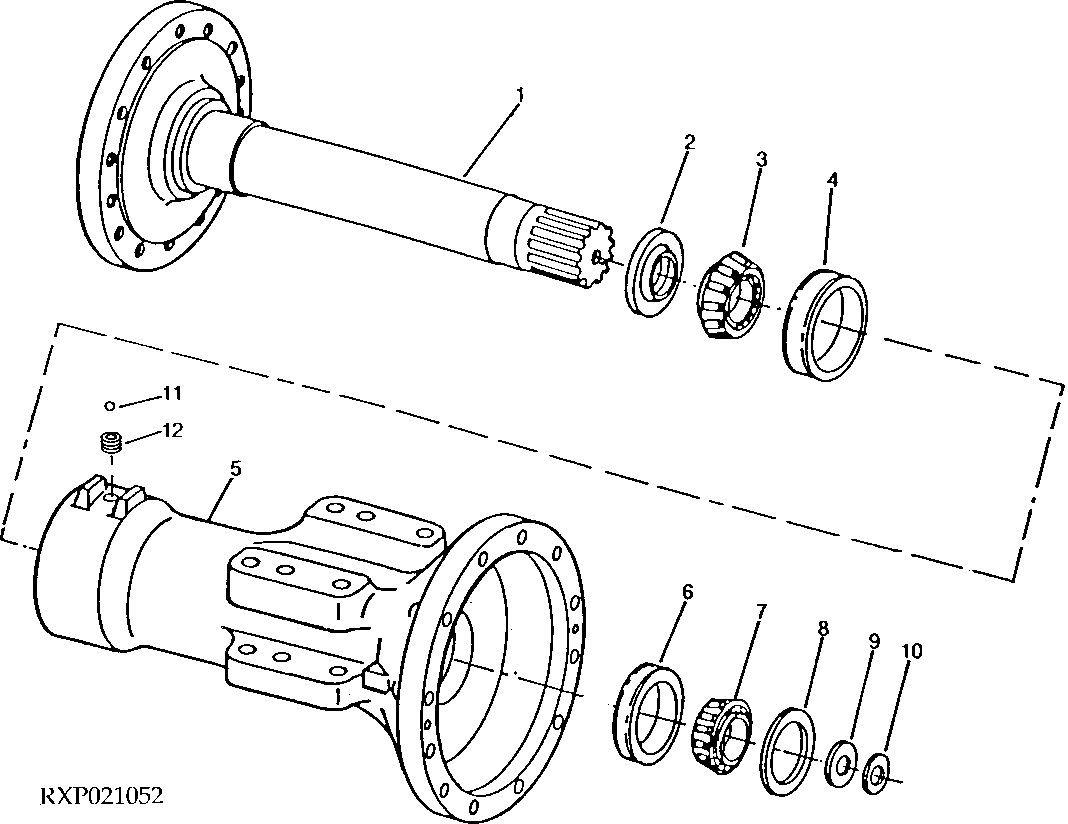

AXLE HOUSING AND SHAFT -1200 SERIES ( - 872328)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R116542	1	Shaft	-
2	R163304	1	Seal	Front Axle Lip Seal, (SUB FOR R127839) (MACHINE SERIAL NO.-587704)
2	R163304	1	Seal	Front Axle Lip Seal, (SUB FOR R127839) (MACHINE SERIAL NO. -587838) (NARROW GAUGE)
2	R163304	1	Seal	Rear Axle Lip Seal, (SUB FOR R127839)(MACHINE SERIAL NO. -587836)
2	YZ121201	1	Seal	Front Axle Face Seal, (SUB FOR YZ120452)(MACHINE SERIAL NO. 587705-)
2	YZ121201	1	Seal	Front Axle Face Seal, (SUB FOR YZ120452) (MACHINE SERIAL NO. 587839-) (NARROW GAUGE)
2	YZ121201	1	Seal	Rear Axle Face Seal, (SUB FOR YZ120452) (MACHINE SERIAL NO. 587837-)
3	JD9018	1	Bearing Cone	(OUTER)
4	JD8248	1	Bearing Cup	(OUTER)
5	R116156	1	Housing	-
6	JD9118	1	Bearing Cup	(INNER)
7	JD9055	1	Bearing Cone	(INNER)
8	R48437	1	Washer	-
9	R59439	6	Shim	0.13 mm (.005 in.)
9	R59440	2	Shim	0.51 mm (.020 in.)
9	R61461	2	Shim	0.08 mm (.003 in.)
9	R79989	2	Shim	0.18 mm (.007.in.)
10	F2380R	1	Washer	-
11	T71988	1	Ball	-
12	15H559	1	Pipe Plug	1/4"

AXLE HOUSING AND SHAFT -1200 SERIES ( - 872328)

Нет текстового описания
