1 1/16" RELIEF VALVES AND KITS (850353 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

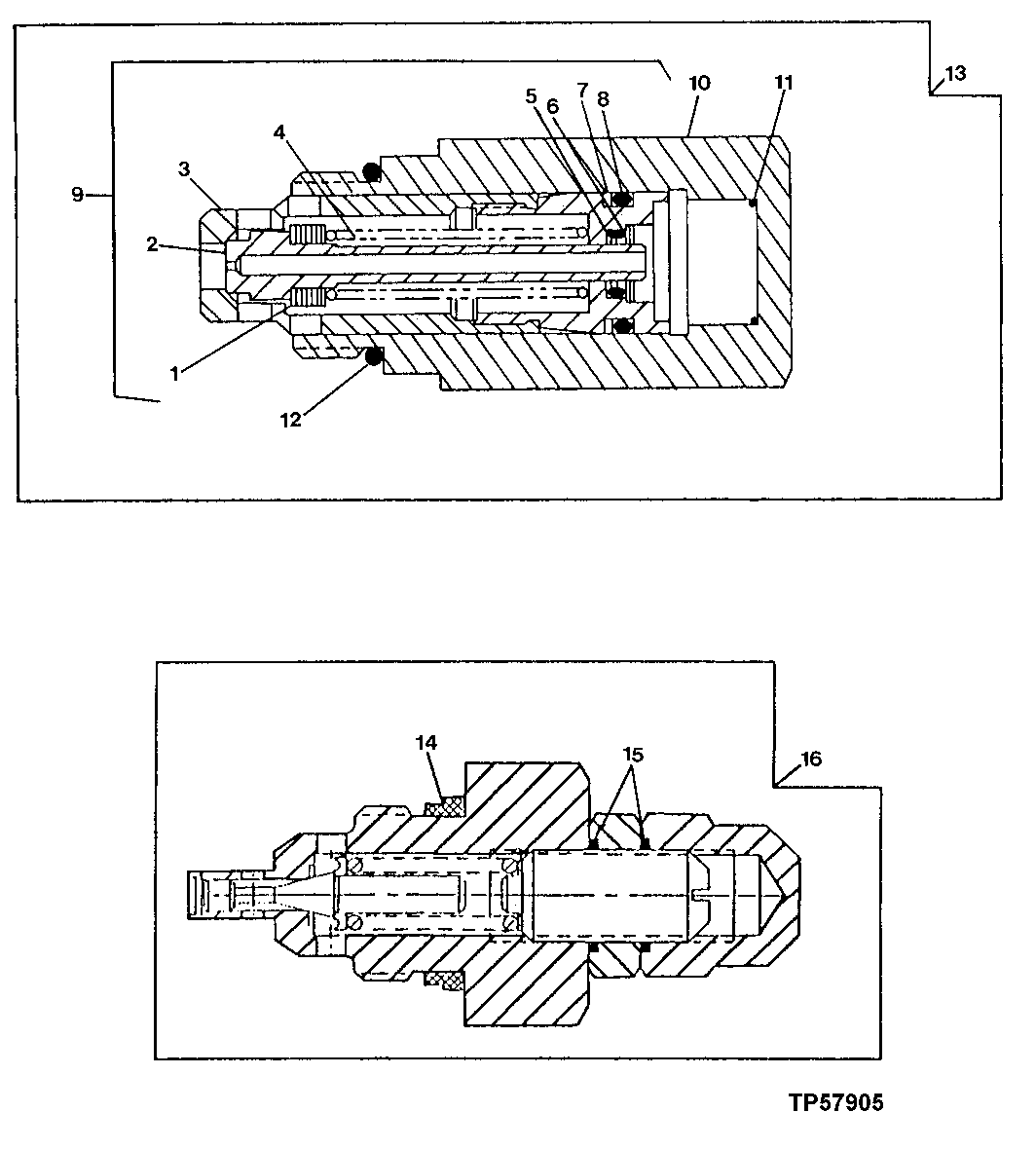

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	-	1	Part 2	-
3	-	1	Part 3	-
4	-	1	Part 4	-
5	-	2	Part 5	-
6	-	1	Part 6	-
7	-	1	Part 7	(A)
8	-	1	Part 8	(A)
9	AT135715	1	Valve Kit	3000 PSI, (RELIEF CARTRIDGE, INLET SECTION)
9	AT114682	1	Valve Kit	2750 PSI, (RELIEF CARTRIDGE, (SWING) (TOP AND BOTTOM) AND (CROWD SECTIONS) (BOTTOM)
9	AT114683	1	KIT	3200 PSI, (RELIEF CARTRIDGE), (BUCKET SECTION) (TOP)
9	AT178363	1	Pressure Relief Valve	2150 PSI, (RELIEF CARTRIDGE), (BOOM SECTION) (TOP)
10	T118866	1	Housing	-
11	T118867	1	Spring	-
12	T118681	1	O-Ring	(A)
13	AT135714	1	Pressure Relief Valve	3000 PSI, (INLET COVER)
13	-	2	Part 17	2750 PSI, (SWING SECTION), (TOP AND BOTTOM PORTS)
13	-	1	Part 18	2750 PSI, (CROWD SECTION), (BOTTOM PORT-HEAD)
13	-	1	Part 19	3200 PSI, (BUCKET SECTION), (TOP PORT-HEAD)
13	AT171403	1	Pressure Relief Valve	2150 PSI, (BOOM SECTION), (TOP PORT-HEAD)
14	T183757	1	Seal	(A) (SUB FOR T141872)
15	-	2	Part 22	(A)
16	AT165735	1	Pressure Relief Valve	4500 PSI, (BOOM SECTION), (BOTTOM PORT-ROD)
16	AT165737	1	Pressure Relief Valve	3500 PSI, (BUCKET SECTION), (BOTTOM PORT-ROD)
16	AT165737	1	Pressure Relief Valve	3500 PSI, CROWD SECTION), (UPPER PORT-ROD)
16	AT314538	1	Seal Kit	7/8 in., (RELIEF VALVE SEAL KIT) (SUB FOR AT189413)
16	AT314539	1	Seal Kit	1 1/16 in., (RELIEF VALVE SEAL KIT) (SUB FOR AT189413)

1 1/16" RELIEF VALVES AND KITS (850353 - )

Нет текстового описания
