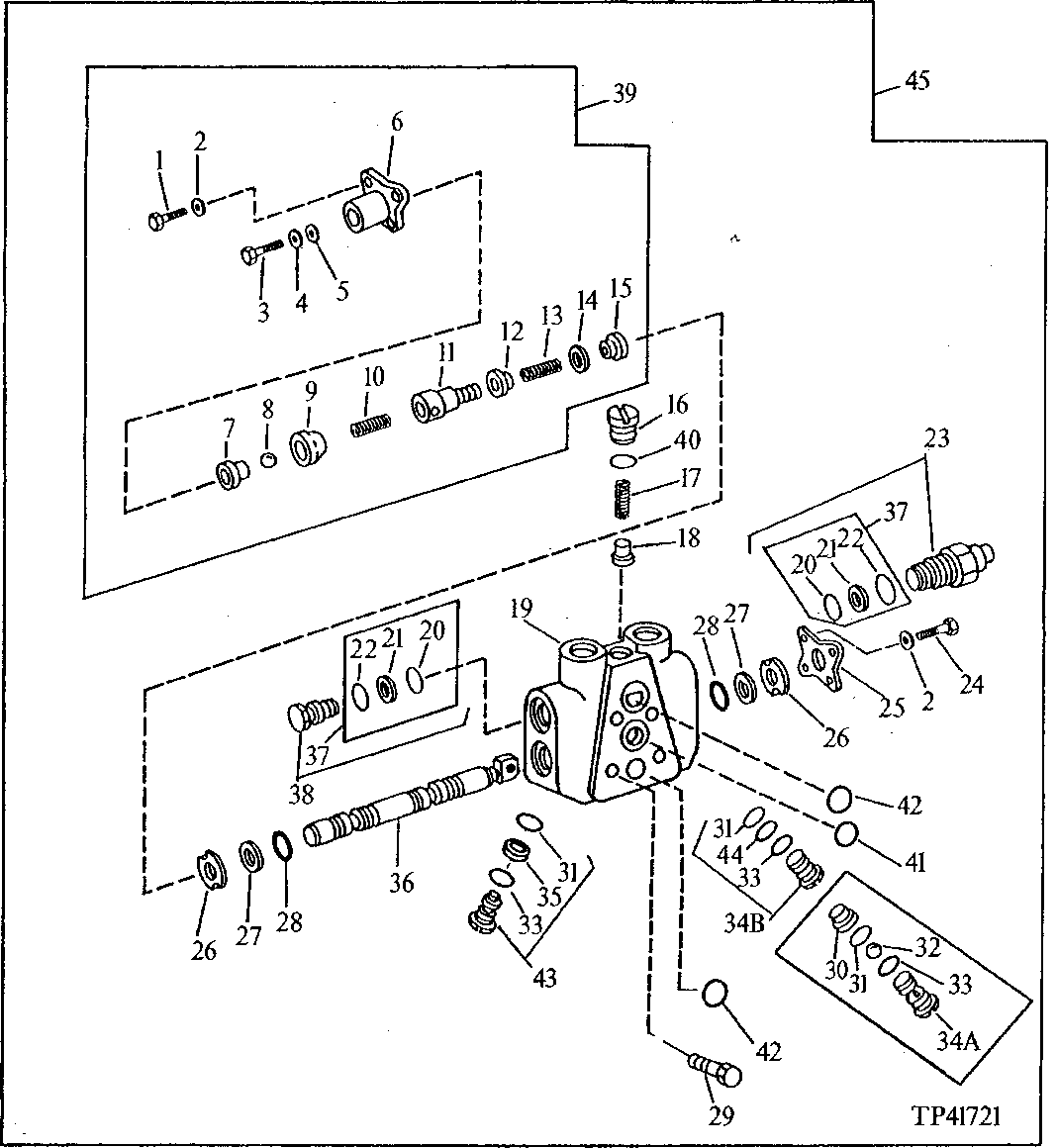

THIRD FUNCTION VALVE (FOR USE WITH GRESEN 25P VALVE ONLY) (710B) (SERIAL NO. -735280) [03I23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1174	4	SCREW	1/4" X 1"
2	12H302	4	Lock Washer	1/4"
2	24H1325	1	Washer	15/32" X 59/64" X 0.065", (SUB FOR T36001)
3	19H3295	1	Screw	3/8" X 3/4"
4	12H304	1	Lock Washer	3/8"
5	24H1325	1	Washer	15/32" X 59/64" X 0.065"
6	-	1	Part 7	(SUB AT75834)
7	T122026	1	SLEEVE	(SUB FOR T44193)
8	T26254	4	Ball	-
9	T36004	1	FOLLOWER	-
10	T36002	1	SPRING	-
11	T44194	1	HOLDER	-
12	T44192	1	ROUND RETAINER	-
13	T75986	1	SPRING	-
14	12H293	1	Lock Washer	7/16"
15	T75987	1	PLUG	-
16	U17393	1	FITTING	-
17	U17406	1	SPRING	-
18	U17396	1	POPPET	-
19	-	1	Part 20	(SUB AT75831)
20	-	2	Part 21	(SUB AT56549)
21	-	2	Part 22	(SUB AT56549)
22	-	2	Part 23	(SUB AT56549)
23	AT75837	1	PRESSURE RELIEF VALVE	-
24	19H2701	4	SCREW	1/4" X 5/8"
25	T106147	1	PLATE	(SUB FOR T75974)
26	T75976	2	WASHER	-
27	T75982	2	BACK-UP RING	-
28	R495R	2	O-Ring	(SUB FOR T57248)
29	T44172	1	ROD	(SET OF FOUR)
30	-	1	Part 31	( U17398 NO LONGER AVAILABLE) (SUB AT156986)
31	T75984	2	O-Ring	(SUB FOR T15710, THIS APPLICATION)
32	-	1	Part 33	( U17411 NO LONGER AVAILABLE) (SUB AT156986)
33	U15192	2	O-Ring	-
35	T78627	1	WASHER	-
36	-	1	Part 38	(SUB AT75831)
37	AT56549	2	SEAL KIT	-
38	AT53846	1	FITTING PLUG	-
39	AT75834	1	DETENT	-
40	U17409	1	O-Ring	-
41	T30424	1	O-RING	-
42	T30423	2	O-RING	-
43	AT75833	1	PLUG	ANTI-CAVATION
44	T78627	1	WASHER	-
45	AT75831	1	SPOOL VALVE	(FOR USE WITH AT74535 AND AT78243 VALVE ONLY)
46	-	1	Part 48	( AT83459 NO LONGER AVAILABLE) (COMPLETE, INCLUDES VALVE THIRD SECTION, SEAL KITS, LEVERS, LINES, HOSE AND HARDWARE) (FOR USE WITH AT74535 AND AT78243 VALVES ONLY)
34A	-	1	Part 35	( U17397 NO LONGER AVAILABLE) (SUB AT156986)
34B	AT156986	1	PRESSURE RELIEF VALVE	-

THIRD FUNCTION VALVE (FOR USE WITH GRESEN 25P VALVE ONLY) (710B) (SERIAL NO. -735280) [03I23]
