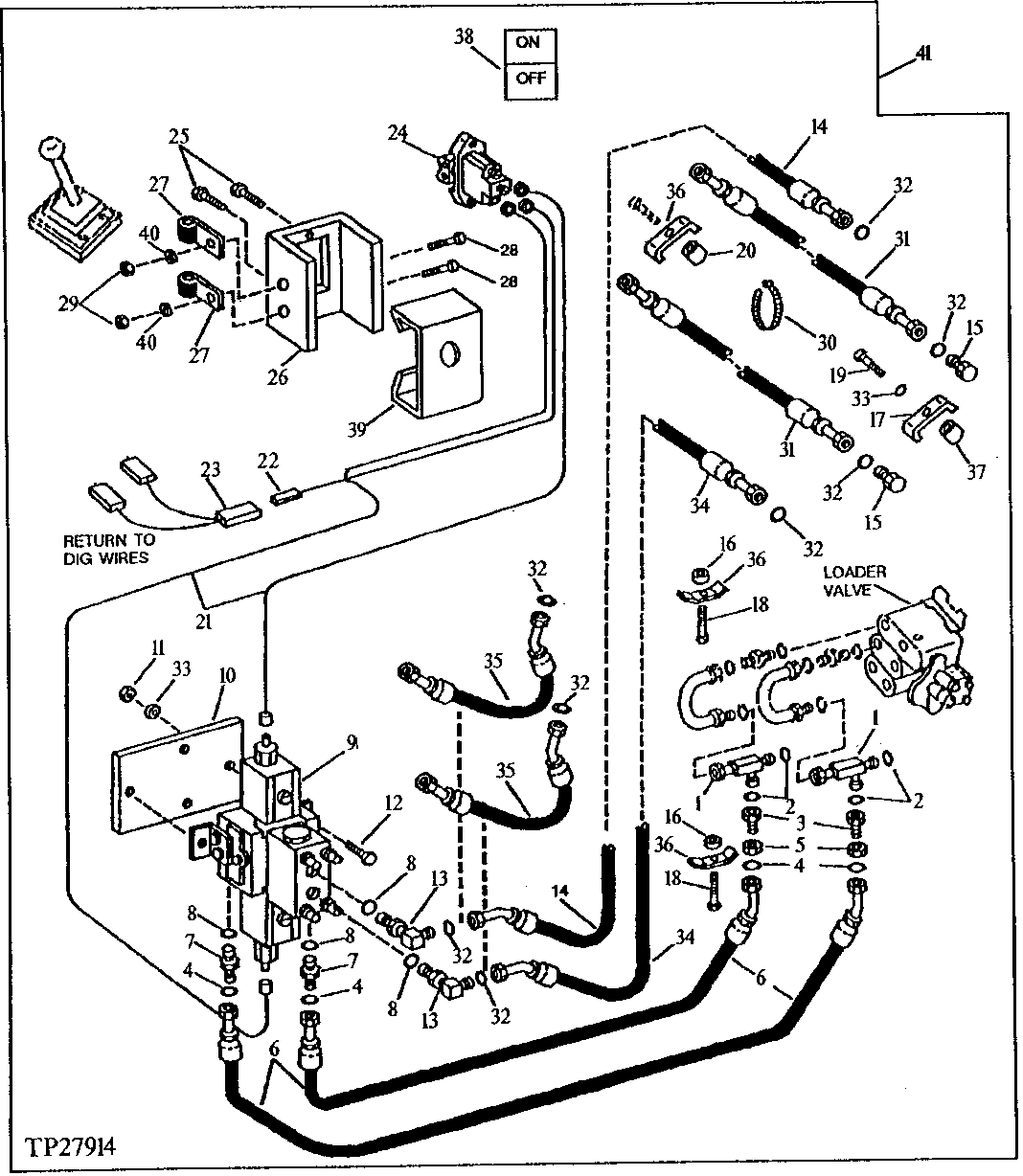

THIRD FUNCTION LOADER HYDRAULICS (WITH SOLENOID CONTROL VALVE) (SERIAL NO. 770928- ) [03J07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1033	2	Tee Fitting	-
2	T77858	4	O-Ring	-
3	38H1356	2	Tube Nut	-
3	38H1473	2	Reducer	-
4	T77613	8	O-Ring	-
5	38H1356	2	Tube Nut	-
6	AT142560	2	HYDRAULIC HOSE - FABRICATE	11/16" X 762 MM (30") X 11/16"
7	38H1160	2	Adapter Fitting	-
8	R26448	4	O-Ring	-
9	AT59593	1	HYD ACTUATED CONTROL VALVE	(SOLENOID)
10	T113110	1	BRACKET	-
11	14H812	4	NUT	3/8"
12	19H1648	4	Cap Screw	3/8" X 3/4"
13	38H1314	2	Elbow Fitting	-
14	AT142400	1	OIL LINE	-
15	38H1147	2	Fitting Plug	-
16	28H1521	2	Spacer	0.493" X 0.675" X 9/16"
17	U40398	1	Clamp	-
18	19H2633	2	Cap Screw	3/8" X 1-1/2"
19	19H2633	1	Cap Screw	3/8" X 1-1/2"
20	-	1	Part 21	(THREADED)
21	AT142372	2	WIRING LEAD	(SWITCH TO SOLENOID)
22	AT107979	1	WIRING LEAD	(JUMPER TO SWITCH)
23	AT107980	1	WIRING LEAD	(RETURN-TO-DIG, HOT)
24	AT42676	1	TOGGLE/ROCKER SWITCH	(MOMENTARY ROCKER)
25	21H1353	2	Screw	0.138" X 3/4", PAN HD.
26	T128180	1	Bracket	-
27	E53830	2	Clamp	-
28	19H2664	2	Cap Screw	5/16" X 3/4"
29	14H785	2	Nut	5/16"
30	R44302	4	Tie Band	-
31	AT142403	2	Hydraulic Hose	13/16" X 1 245 MM (49") X 13/16", (WITH PROTECTIVE WRAP)
32	T77857	9	O-Ring	-
33	24H1304	5	WASHER	13/32" X 23/32" X 0.120"
34	AT142401	1	OIL LINE	-
35	AT142402	2	HYDRAULIC HOSE	13/16" X 1 360 MM (53-1/2") X 13/16"
36	U10516	3	Hose Clamp	-
37	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
38	T128170	1	LABEL	-
39	T128181	1	Cover	-
40	24H1136	2	Washer	11/32" X 11/16" X 0.065"
41	-	1	Part 42	( AT142330 NO LONGER AVAILABLE)

THIRD FUNCTION LOADER HYDRAULICS (WITH SOLENOID CONTROL VALVE) (SERIAL NO. 770928- ) [03J07]
