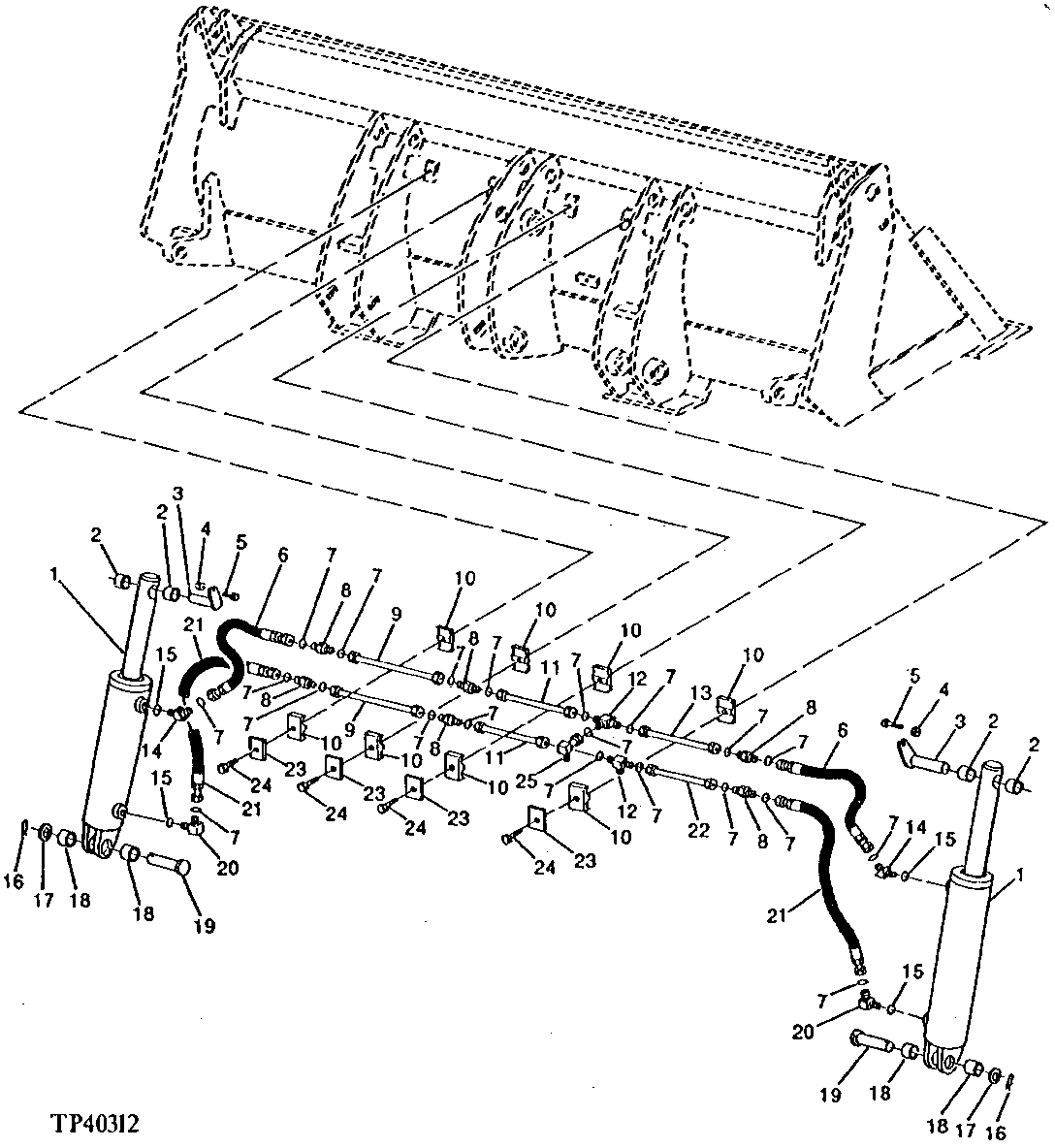

THIRD FUNCTION HYDRAULICS (MULTI-PURPOSE BUCKET) (GANNON) (SERIAL NO. 770928- ) [03J09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	( AT190880 NO LONGER AVAILABLE) (SUB FOR AT142578) (SUB (2) AH210737, (2) T191318 AND (6) 24H1138)
2	T128532	4	Bushing	1.035" X 1.370" X 3/4", (USE WITH AT142578)
2	A24073	4	Bushing	1" X 1-1/4" X 0.780", (USE WITH AT190880)
3	AT190900	2	Pin	(SUB FOR AT142584)
4	T54568	2	Lock Nut	-
5	19H2676	2	Cap Screw	3/8" X 1"
6	AT142605	2	HYDRAULIC HOSE - FABRICATE	13/16" X 660 MM (26") X 13/16"
7	T77857	21	O-Ring	-
8	38H1279	6	Union Fitting	-
9	AT142609	2	OIL LINE	-
10	H135156	8	Clamp	-
11	AT142585	2	OIL LINE	-
12	38H1206	2	Tee Fitting	-
13	AT142587	1	OIL LINE	-
14	38H1521	2	Elbow Fitting	-
15	R26448	4	O-Ring	-
16	11M7030	2	Cotter Pin	5 X 40 MM
17	24H1138	2	Washer	1-1/16" X 2" X 0.134"
18	T128531	4	Bushing	1.035" X 1.370" X 1/2", (USE WITH AT142578)
18	A24073	4	Bushing	(USE WITH AT190880)
19	-	2	Part 21	( T185041 NO LONGER AVAILABLE) (SUB FOR T128536) (SUB (2) T191318 AND (6) 24H1138)
20	38H1314	2	Elbow Fitting	-
21	AT142604	2	HYDRAULIC HOSE - FABRICATE	13/16" X 483 MM (19") X 13/16"
22	AT142588	1	OIL LINE	-
23	H121168	4	Plate	-
24	19H2661	4	Cap Screw	5/16" X 1-3/8"
25	38H1095	1	Elbow Fitting	-

THIRD FUNCTION HYDRAULICS (MULTI-PURPOSE BUCKET) (GANNON) (SERIAL NO. 770928- ) [03J09]
