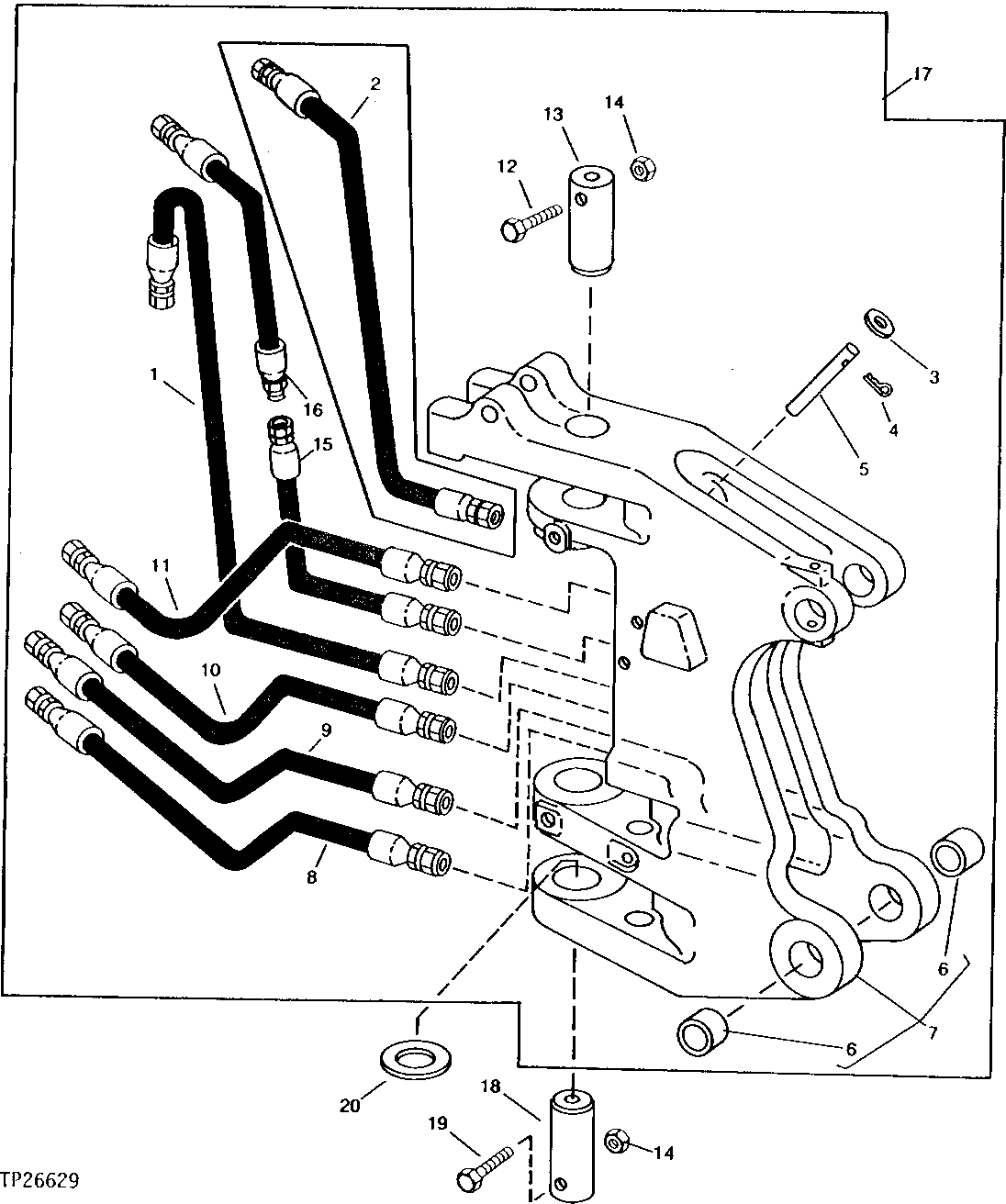

SWING FRAME, PINS AND HYDRAULIC HOSES (SERIAL NO. 706720- ) [04C17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT76172	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 2 970 MM (117") X 1-3/16", BOOM ROD
2	AT76171	1	HYDRAULIC HOSE	1-5/16" X 3 262 MM (128-1/2") X 1-5/16", BOOM HEAD
3	24H1304	2	WASHER	13/32" X 23/32" X 0.120", (ROD FROM SWING FRAME TO RECESSED HOLE)
4	11M7081	1	Cotter Pin	2.500 X 20 MM
5	T77497	1	PIN FASTENER	-
6	T77347	2	Bushing	-
7	-	1	Part 7	( AT114436 NO LONGER AVAILABLE) (MARKED T118604) (SUB FOR AT84898, MARKED T77496 OR T82679) (SUB FOR AT76176)
7	AT167398	1	FRAME	(MARKED T151303) (SUB FOR AT114436)
8	AT76170	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 620 MM (63-3/4") X 1-3/16", BUCKET ROD
9	AT76170	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 620 MM (63-3/4") X 1-3/16", CROWD HEAD
10	AT76169	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 725 MM (68") X 1-3/16", CROWD ROD
11	AT76169	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 725 MM (68") X 1-3/16", BUCKET HEAD
12	19M8044	1	Cap Screw	M16 X 210
13	T149851	1	Pin	(SUB FOR T78298 AND T130456)
14	14M7328	2	Lock Nut	M16
15	AT80798	1	HYDRAULIC HOSE - FABRICATE	1-5/16" X 1 640 MM (64-1/2") X 1-5/16", UPPER VALVE PORT
16	AT80799	1	HYDRAULIC HOSE - FABRICATE	1-5/16" X 1 640 MM (64-1/2") X 1-5/16", BOOM HEAD
17	AT76921	1	KIT	(NOT FOR USE WITH ORS FITTINGS) (USE WITH 37 DEGREE FLARE HOSES)
18	T130455	1	PIN	(SUB FOR T67211)
19	19M8021	1	Cap Screw	M16 X 200
20	T67209	1	THRUST WASHER	-

SWING FRAME, PINS AND HYDRAULIC HOSES (SERIAL NO. 706720- ) [04C17]
