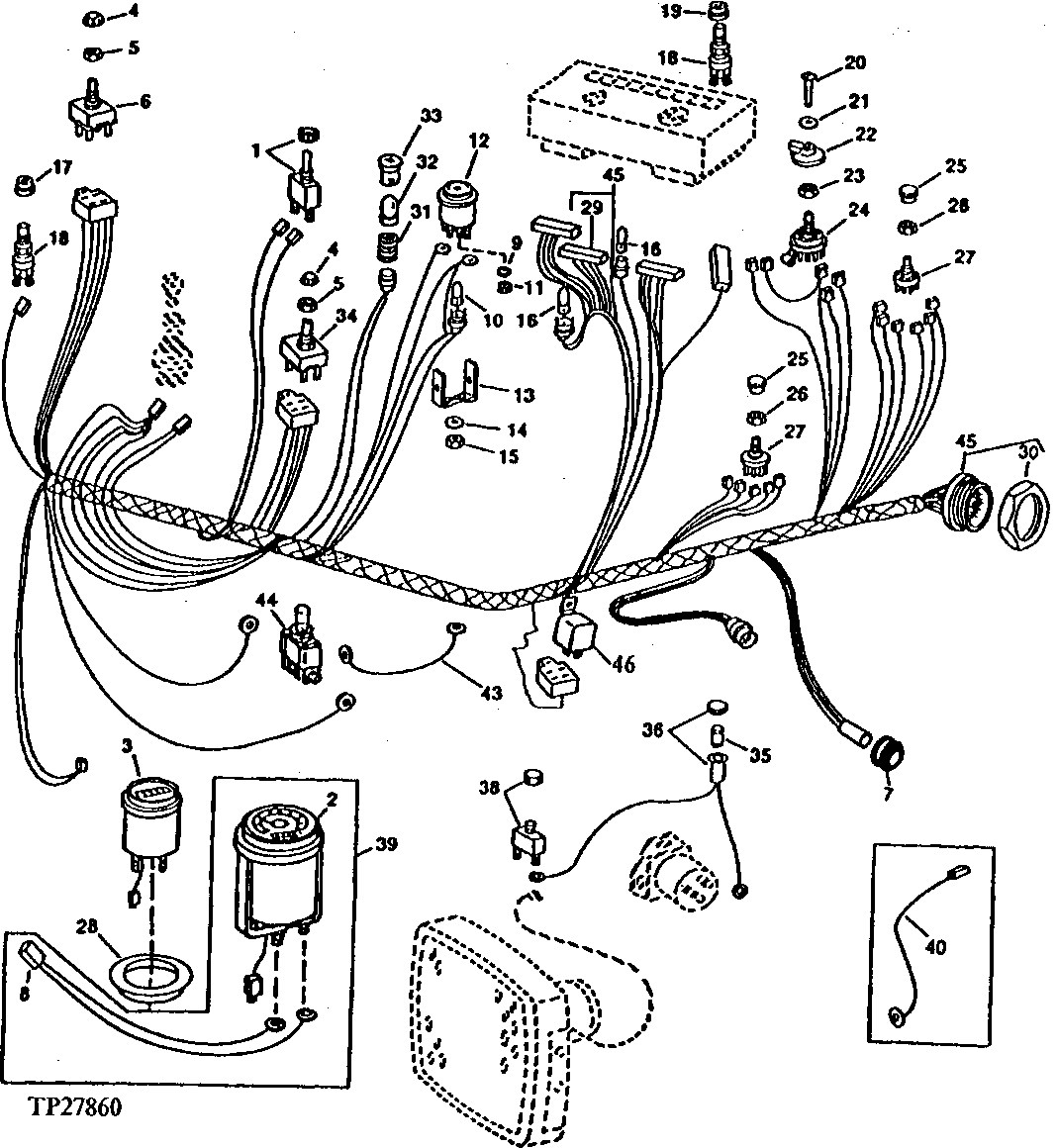

SIDE CONSOLE CONTROLS (WITH CAB AND ROPS) (SERIAL NO. 738609- ) [02K24]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AN151934	1	TOGGLE/ROCKER SWITCH	(WITH MFWD)
1	AN151934	1	TOGGLE/ROCKER SWITCH	INSIDE AIR, OUTSIDE AIR, (SUB FOR AR44659)
2	RE12926	1	Bulb	(WITH HOUR METER)
2	AT302762	1	KIT	(WITH HOUR METER) (SUB FOR AT76756, AT142304 OR AT162517)
3	AT80938	1	HOUR METER	-
4	AL58295	2	Knob	(SUB FOR AR69370)
5	E46066	2	Nut	-
6	AL36529	1	Switch	BLOWER, STANDARD HEATER, WITHOUT PRESSURIZER
7	T70341	1	Grommet	SPLIT
8	AT101087	1	WIRING LEAD	(USE WITH AT76756)
9	24H1283	2	Washer	7/32" X 1/2" X 0.049"
10	T40990	2	BULB	-
11	14H605	1	Nut	0.164", (IGNITION)
11	14H631	1	Nut	0.190", (SENDER)
12	AT61468	1	GAUGE	(SUB FOR AT39733) FUEL
13	T39395	1	BRACKET	-
14	12H295	2	Lock Washer	0.190"
15	14H631	2	Nut	0.190"
16	AR62407	2	Bulb	-
17	T55585	1	Cap	STARTING AID
18	R39554	2	Switch	STARTING AID OR HORN
19	T55501	1	Cap	HORN COVER
20	21H973	1	Screw	0.164" X 3/8"
21	12H315	1	Lock Washer	0.164"
22	AT79053	1	KNOB	-
23	A4655R	1	Nut	-
24	AT79052	1	SWITCH	LIGHT
25	AT60729	2	KNOB	-
26	14H774	2	Nut	3/8"
27	AT65321	2	SWITCH	(WINDSHIELD WIPER)
28	T100659	1	Grommet	-
29	T126704	1	Electrical Connector Assy	-
30	E73240	1	Nut	-
31	R30378	1	Spring	(AIR CONDITIONING)
32	AR50439	1	LAMP	(AIR CONDITIONING)
33	AT69246	1	LENS	(AIR CONDITIONING)
34	AL36529	1	Switch	DELUXE BLOWER, WITH PRESSURIZER
35	AT28061	1	FUSE	WITH PRESSURIZER
36	AT79985	1	FUSE HOLDER	WITH PRESSURIZER
37	AT79986	1	WIRING LEAD	WITH PRESSURIZER
38	AU42189	1	SWITCH	HEATER BLOWER, WITH PRESSURIZER
39	-	1	Part 42	( AT100735 NO LONGER AVAILABLE)
40	R36264	1	WIRING LEAD	-
41	21M7267	2	Screw	M6 X 20, (NOT REQUIRED THIS APPLICATION)
42	14M7272	2	Nut	M6, (NOT REQUIRED THIS APPLICATION)
43	AT51248	1	WIRING LEAD	(TO FUEL GAUGE)
44	AT101095	1	TOGGLE SWITCH	(FUEL TANK)
45	AT114351	1	WIRING HARNESS	ROPS (NOT ILLUSTRATED) (SUB AT118772)
45	AT114298	1	WIRING HARNESS	CAB, (SUB AT118773)
45	AT118772	1	WIRING HARNESS	ROPS (NOT ILLUSTRATED)
45	AT118773	1	WIRING HARNESS	CAB
45	AT118772	1	WIRING HARNESS	ROPS (NOT ILLUSTRATED)
45	AT118773	1	WIRING HARNESS	CAB
45	AT142035	1	WIRING HARNESS	ROPS (NOT ILLUSTRATED)
45	AT142034	1	WIRING HARNESS	CAB
46	AR91168	1	Relay	-

SIDE CONSOLE CONTROLS (WITH CAB AND ROPS) (SERIAL NO. 738609- ) [02K24]
