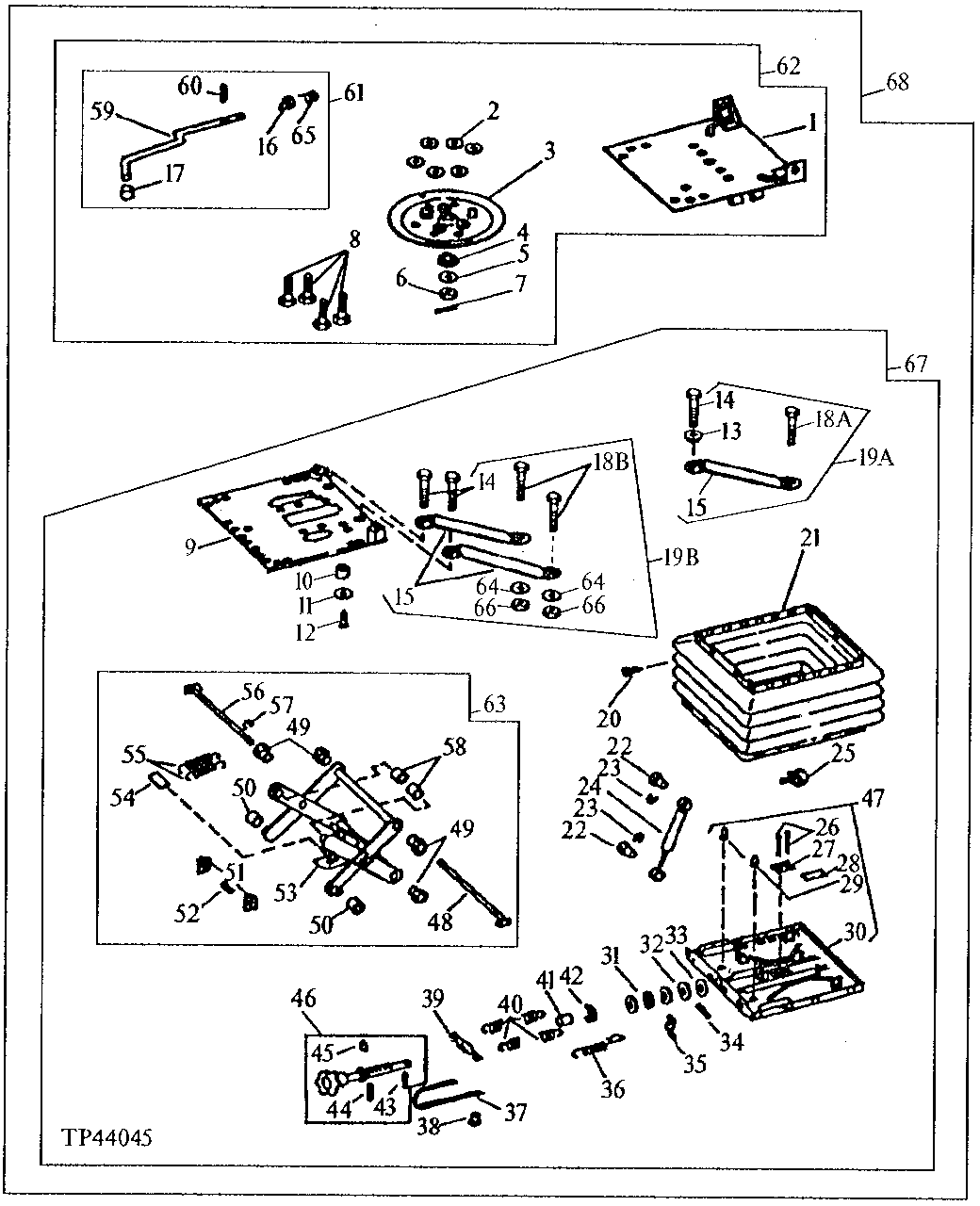

SEAT SUSPENSION BASE WITH TURNTABLE [03E01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
26	AT44188	2	Rivet	-
27	L38891	1	RAIL	(SUB FOR T82222)
28	L38890	1	Plate	(SUB FOR T82223)
29	L25678	2	Bumper	-
30	AT84219	1	PLATE	-
31	JD10212	2	Ball Bearing	(SUB FOR AT84221)
32	24H1657	1	Washer	21/64" X 1-1/4" X 7/64"
33	B28163	1	WASHER	-
34	L38851	1	Roller	(SUB FOR T82228)
35	L38847	1	Guide	(SUB FOR T82229)
36	L38866	1	Spring	(SUB FOR T82230)
37	T82231	1	TIE BAND	-
38	L38857	2	Plug	(SUB FOR T82232)
39	AL36643	1	Retainer	(SUB FOR AT84222)
40	T82227	2	Extension Spring	-
41	L42038	1	Bushing	(SUB FOR T82226)
42	L38861	1	Nut	(SUB FOR T82225)
43	34M7129	1	Spring Pin	3 X 16 MM
44	34M7130	1	Spring Pin	4 X 20 MM
45	40M7051	1	Snap Ring	-
46	AL38524	1	Adjuster	(SUB FOR AT84223)
47	AT84218	1	PLATE	-
48	AT84228	1	Pin Fastener	-
49	L42041	4	Bushing	(A) (SUB FOR T82235)
50	L42042	2	Roller	(A) (SUB FOR T82238)
51	L38852	2	Plate	(A) (SUB FOR T82239)
52	L38862	1	Bar	(A) (SUB AL64581) (SUB FOR AL64580)
53	-	1	Part 28	(A) (SUB FOR AT84227)
54	L38853	1	Plate	(A) (SUB FOR T82237)
55	L38854	2	Spring	(A)
56	AT84226	1	Pin Fastener	-
57	40M7030	1	Snap Ring	-
58	L38855	2	Roller	(A) (SUB FOR T112201)
59	T141397	1	ROD	(SUB FOR T82216)
60	34M7094	1	Spring Pin	4 X 16 MM
61	-	1	Part 36	( AT84214 NO LONGER AVAILABLE)
62	AT107542	1	BASE	(SUB FOR AT84213)
63	AT84225	1	Rocker	-
63	AL64581	1	Arm	(NOT ILLUSTRATED) (INCLUDES PARTS MARKED A)
64	12H293	2	Lock Washer	7/16"
65	T82219	1	EXTENSION SPRING	-
66	14H807	2	Nut	7/16"
67	AT84217	1	BASE	(SUB FOR AT84217)
68	AT169499	1	BASE	-

SEAT SUSPENSION BASE WITH TURNTABLE [03E01]
