REAR WINDOW (710B) (SERIAL NO. -726668) [03C06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

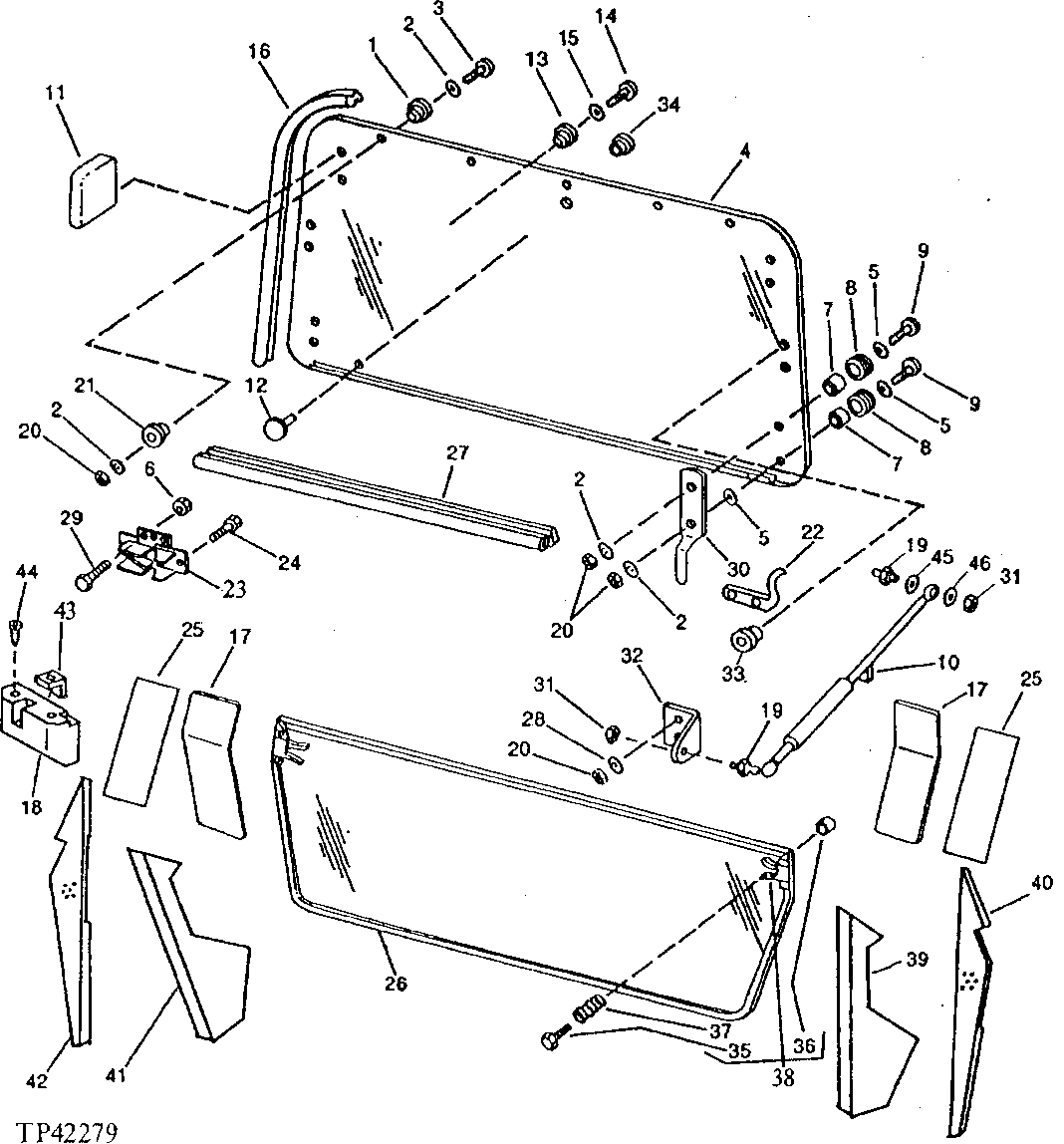

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T78050	16	Washer	(SUB FOR R50642, THIS APPLICATION)
2	24H1288	8	Washer	9/32" X 1" X 1/16"
3	21M7277	9	Screw	M6 X 25
4	AT75351	1	WINDOW	(SUB AT118800)
5	24H1821	12	Washer	9/32" X 47/64" X 1/16"
6	14M7303	8	Flange Nut	M6
7	T75033	4	Spacer	-
8	T55167	6	Grommet	-
9	21M7248	4	Screw	M6 X 30
10	AT75361	2	GAS OPERATED CYLINDER	(USE IF AVAILABLE)
10	AT164828	2	CYLINDER	(SUB FOR AT145132)
11	T76871	2	STOP	-
12	T77112	2	KNOB	-
13	T76878	2	Washer	-
14	24H1136	20	Washer	11/32" X 11/16" X 0.065"
15	-	2	Part 16	( 21M7233 - NO LONGER AVAILABLE)
16	-	1	Part 17	(MAKE FROM AT75842 BULK MATERIAL, CUT TO LENGTH)
17	T113466	2	WINDOWPANE	(SUB FOR T76882)
18	T118880	1	COVER	L.H. (SUB FOR T77331)
18	T118881	1	COVER	R.H. (SUB FOR T77330)
19	T142651	4	Ball Stud	(SUB FOR (4) T73834)
20	14M7165	15	Lock Nut	M6
21	T78050	1	Washer	-
22	T77114	2	ROD	-
23	AT72605	1	LATCH	R.H.
23	AT72604	1	LATCH	L.H.
24	19M7077	4	Cap Screw	M6 X 20, (USE WITH T118880 AND T118881)
24	19M7862	4	Screw	M6 X 20, (USE WITH T77330 AND T77331)
25	-	1	Part 29	(MAKE FROM AT66779 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT78336)
26	AT80541	1	WINDOW	(SUB FOR AT75687) (SUB AT85104)
27	T122081	1	ISOLATOR	(SUB FOR T77116 AND T82491)
28	24H1287	9	Washer	9/32" X 5/8" X 0.065", (SUB FOR T77121)
29	19M7923	4	Cap Screw	M6 X 12
30	T76876	2	PIN FASTENER	-
31	14H785	4	Nut	5/16"
32	T76875	1	ANGLE	R.H. (SUB FOR T75039, THIS APPLICATION)
32	T76874	1	ANGLE	L.H. (SUB FOR T75040, THIS APPLICATION)
33	T78050	2	Washer	-
34	99M7077	1	Plug	-
35	T78130	2	SCREW	-
36	T78131	2	NUT	-
37	T80248	2	COMPRESSION SPRING	-
38	AT80542	1	KIT	(INCLUDES TWO LATCHES AND HARDWARE) (SUB FOR AT77380, AT77381, AT80542 AND AT80543)
39	AT72685	1	PAD	LEFT
39	AT79175	1	PAD	-
40	AT72692	1	PAD	LEFT
40	AT79174	1	PAD	-
41	AT72693	1	PAD	RIGHT
41	AT79173	1	PAD	-
42	AT72694	1	PAD	RIGHT
42	AT79172	1	PAD	-
43	AT114680	1	CLIP	(SUB FOR AT75921)
44	T77832	4	Self-Locking Screw	-
45	24H1136	2	Washer	11/32" X 11/16" X 0.065"
46	24M7238	4	Washer	8.700 X 17 X 2 MM
