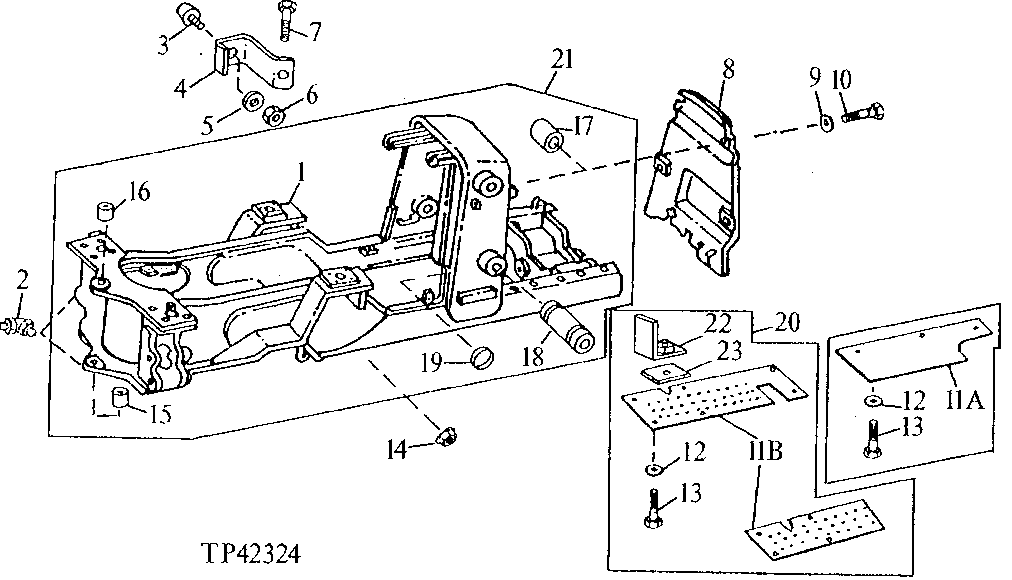

MAIN FRAME, BAFFLE AND SOUND ISOLATOR [02L18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AT113997, AT113996 OR AT117550)
2	JD7799	2	Lubrication Fitting	(SUB FOR JD7781 AND JD7763, THIS APPLICATION)
3	AT36635	1	Bumper	-
4	T76893	1	BRACKET	-
5	24H1822	1	Washer	11/32" X 7/8" X 1/16"
6	14H650	1	Nut	5/16"
7	19M7784	1	Screw	M10 X 20
8	T77125	1	BARRIER	-
9	24M7296	3	Washer	10.500 X 30 X 2.500 MM
10	19M7166	3	Cap Screw	M10 X 20
12	24M7296	3	Washer	10.500 X 30 X 2.500 MM
12	24M7296	5	Washer	10.500 X 30 X 2.500 MM
13	19M7938	5	Cap Screw	M10 X 20
13	19M7938	3	Cap Screw	M10 X 20
14	14M7296	1	Flange Nut	M10
15	T70566	1	BUSHING	-
16	T72790	1	BUSHING	-
17	T76307	2	BUSHING	(SUB FOR R72385, THIS APPLICATION)
17	T76307	2	BUSHING	-
17	T63050	2	BUSHING	-
18	T69578	2	PIN	-
18	T119156	2	Pin	-
19	40M7066	2	Snap Ring	-
19	40M7066	4	Snap Ring	-
19	T161036	2	Washer	(SUB FOR T69222 OR (2) T125955) (SUB FOR T148178)
20	-	1	Part 29	( AT118535 - NO LONGER AVAILABLE) (SUB FOR AT85774)
21	AT117550	1	MAIN FRAME	(SUB AT135523 AND (2) T128343) (DOES NOT INCLUDE PIVOT PINS OR SNAP RINGS)
21	-	1	Part 32	( AT113997 NO LONGER AVAILABLE) (SUB FOR AT66593 AND AT80587)
21	AT80587	1	MAIN FRAME	(SUB AT113997) (ALSO ORDER AT28379, AT78340 AND (2) T27603)
21	AT66593	1	MAIN FRAME	(SUB AT113997)
21	AT135523	1	MAIN FRAME	(CONVENIENCE ASSEMBLY)
22	AT70116	1	ANGLE	-
23	T69113	1	STRAP	-
11A	T73319	2	PLATE	(SUB T83422)
11B	T83422	1	DEFLECTOR	(LEFT SIDE)
11B	T83422	1	DEFLECTOR	(RIGHT SIDE, CUT-OFF END)
