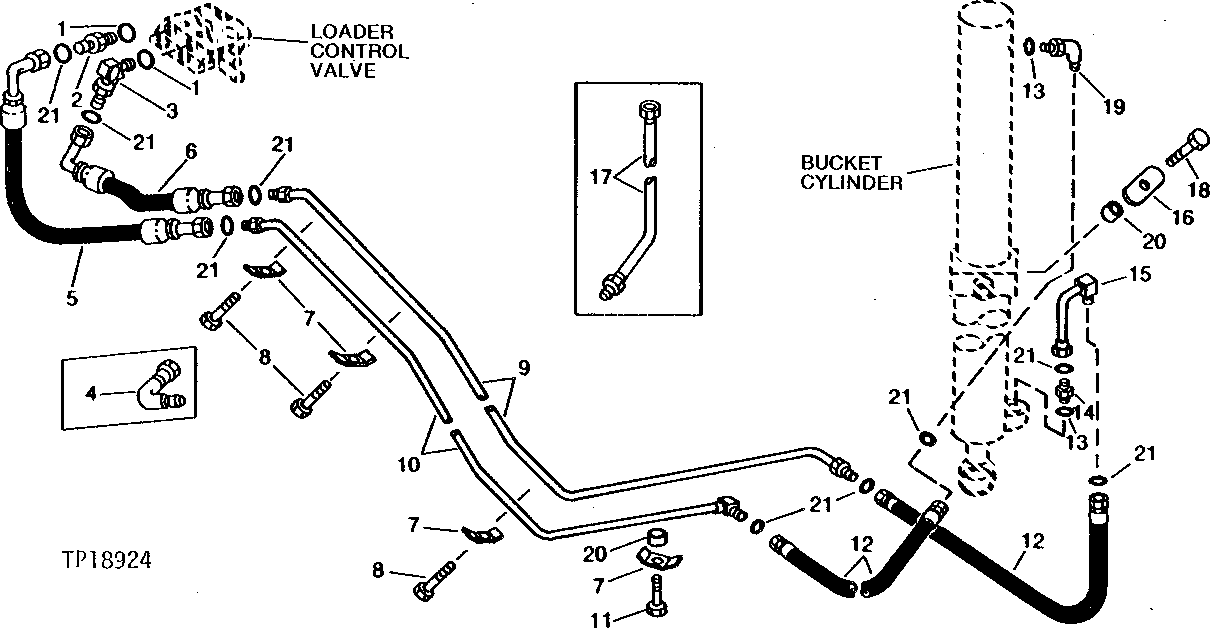

LOADER CONTROL VALVE TO BUCKET CYLINDER HYDRAULICS (710B) [03K16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	2	O-Ring	(SUB FOR U12547, THIS APPLICATION)
2	T68842	1	ADAPTER FITTING	37° FLARE
2	38H1163	1	Adapter Fitting	-
3	AR58274	1	ELBOW FITTING	37° FLARE, 90° ADJUSTABLE
3	38H1048	1	Elbow Fitting	45°
4	AT33922	1	ELBOW FITTING	37° FLARE, 90° SWIVEL
5	AT65774	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 210 MM (47-3/4") X 1-3/16"
5	AT83466	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 220 MM (48") X 1-3/16"
6	AT65773	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 130 MM (44-1/2") X 1-3/16"
6	AT83465	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 115 MM (44") X 1-3/16"
7	T27022	4	Clamp	-
8	19H1648	3	Cap Screw	3/8" X 3/4"
9	AT65765	1	OIL LINE	-
9	AT83462	1	OIL LINE	-
10	AT65764	1	OIL LINE	-
10	AT83461	1	OIL LINE	-
11	19H2633	1	Cap Screw	3/8" X 1-1/2"
12	AT65775	2	HYDRAULIC HOSE - FABRICATE	-
12	AT79822	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT83474 AND AT113907) (ROD END)
12	AT113908	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT83467) (HEAD END)
13	U17409	2	O-Ring	-
14	R58774	1	Fitting	-
14	38H1343	1	Adapter Fitting	-
15	AT65761	1	OIL LINE	-
15	AT83460	1	OIL LINE	-
16	R60171	1	STRAP	-
16	H83791	1	Clamp	-
17	AT65762	1	OIL TUBE	-
18	19M7550	1	Cap Screw	M10 X 35
19	AT65343	1	FITTING	-
19	38H1344	1	Elbow Fitting	-
20	28H1523	2	Bushing	1/2" X 13/16"
21	T77858	8	O-Ring	-
