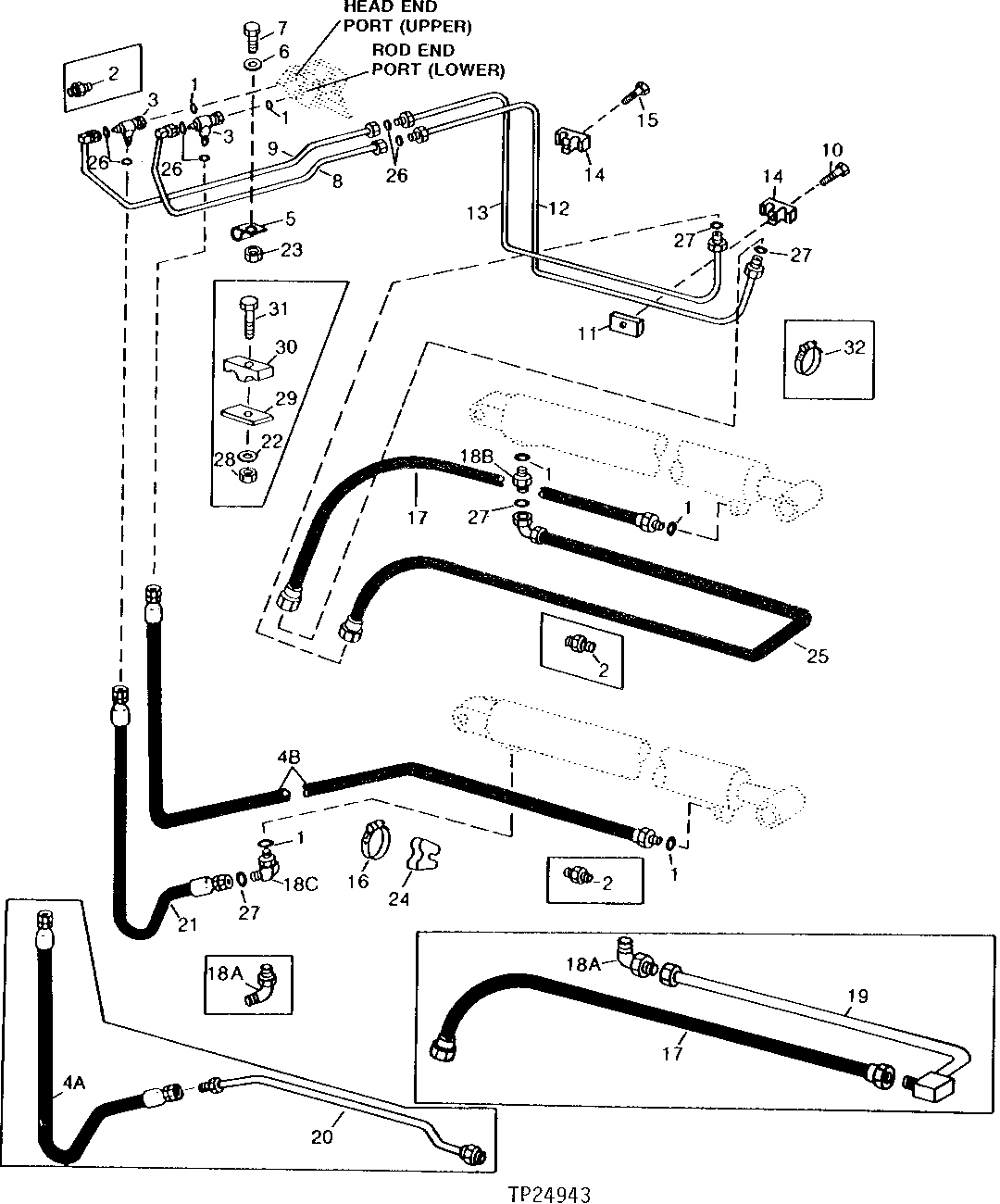

LOADER CONTROL VALVE TO BOOM CYLINDER HYDRAULICS (710B) [03K12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	6	O-Ring	(SUB FOR U12547, THIS APPLICATION)
2	R27267	4	Fitting	-
3	X12R6X-S	2	Tee Fitting	(SUB FOR AT43903)
3	38H1026	2	Tee Fitting	-
5	T67477	1	Clamp	-
6	24M7296	1	Washer	10.500 X 30 X 2.500 MM
7	19M8162	1	Screw	M10 X 40
8	AT83468	1	OIL LINE	-
8	AT106786	1	OIL LINE	-
8	AT71920	1	OIL LINE	-
9	AT74263	1	OIL LINE	-
9	AT83471	1	OIL LINE	-
9	AT106787	1	OIL LINE	-
10	19M7724	1	Cap Screw	M10 X 45
11	M18780	1	STRAP	-
12	AT71922	1	OIL LINE	-
12	AT83470	1	OIL LINE	(ROD END)
13	AT71923	1	OIL LINE	-
13	AT83469	1	OIL LINE	(HEAD END)
14	U40398	2	Clamp	(SUB FOR T74288, THIS APPLICATION)
14	24H1305	2	Washer	13/32" X 13/16" X 0.065", (UNDER SCREW HEAD IN CLAMP ON LEFT LIFT CYLINDER LINES AT LEFT REAR TAPPED BLOCK)
14	28H1522	1	Spacer	(UNDER LEFT LIFT CYLINDER LINE CLAMPS)
15	19M7550	1	Cap Screw	M10 X 35
16	AC15595	2	Clamp	(SUB FOR C16054, THIS APPLICATION) (SUB FOR AR52392 AND AT63291)
16	C16054	2	Clamp	-
17	AT65772	2	HYDRAULIC HOSE - FABRICATE	1-1/16" X 1 060 MM (41-3/4") X 1-1/16"
17	AT151422	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT83473 AND AT135763)
19	AT65768	1	OIL LINE	-
20	AT65769	1	OIL LINE	-
21	AT65772	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 1 060 MM (41-3/4") X 1-1/16"
21	AT83464	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 050 MM (41-1/4") X 1"
21	AT107532	1	HYDRAULIC HOSE - FABRICATE	-
22	24M7047	1	Washer	13 X 24 X 2.500 MM
23	14M7274	1	Nut	M10
24	T105773	2	Guide	-
25	AT135762	1	HYDRAULIC HOSE - FABRICATE	1" X 1 075 MM (42-1/4") X 1", (SUB FOR AT83472)
26	T77858	6	O-Ring	-
27	T77932	4	O-Ring	-
28	14M7274	1	Nut	M10
29	M18780	1	STRAP	-
30	T74288	1	HALF CLAMP	-
31	19M7724	1	Cap Screw	M10 X 45
32	AC15595	1	Clamp	(SUB FOR AT63291)
4A	AT65770	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 915 MM (36") X 1-1/16"
4B	AT83463	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 1 900 MM (74-3/4") X 1-3/16"
4B	AT107531	1	HYDRAULIC HOSE - FABRICATE	-
18A	AT32331	2	Elbow Fitting	-
18B	38H1329	1	Adapter Fitting	LEFT CYLINDER
18C	38H1404	1	Elbow Fitting	RIGHT CYLINDER
