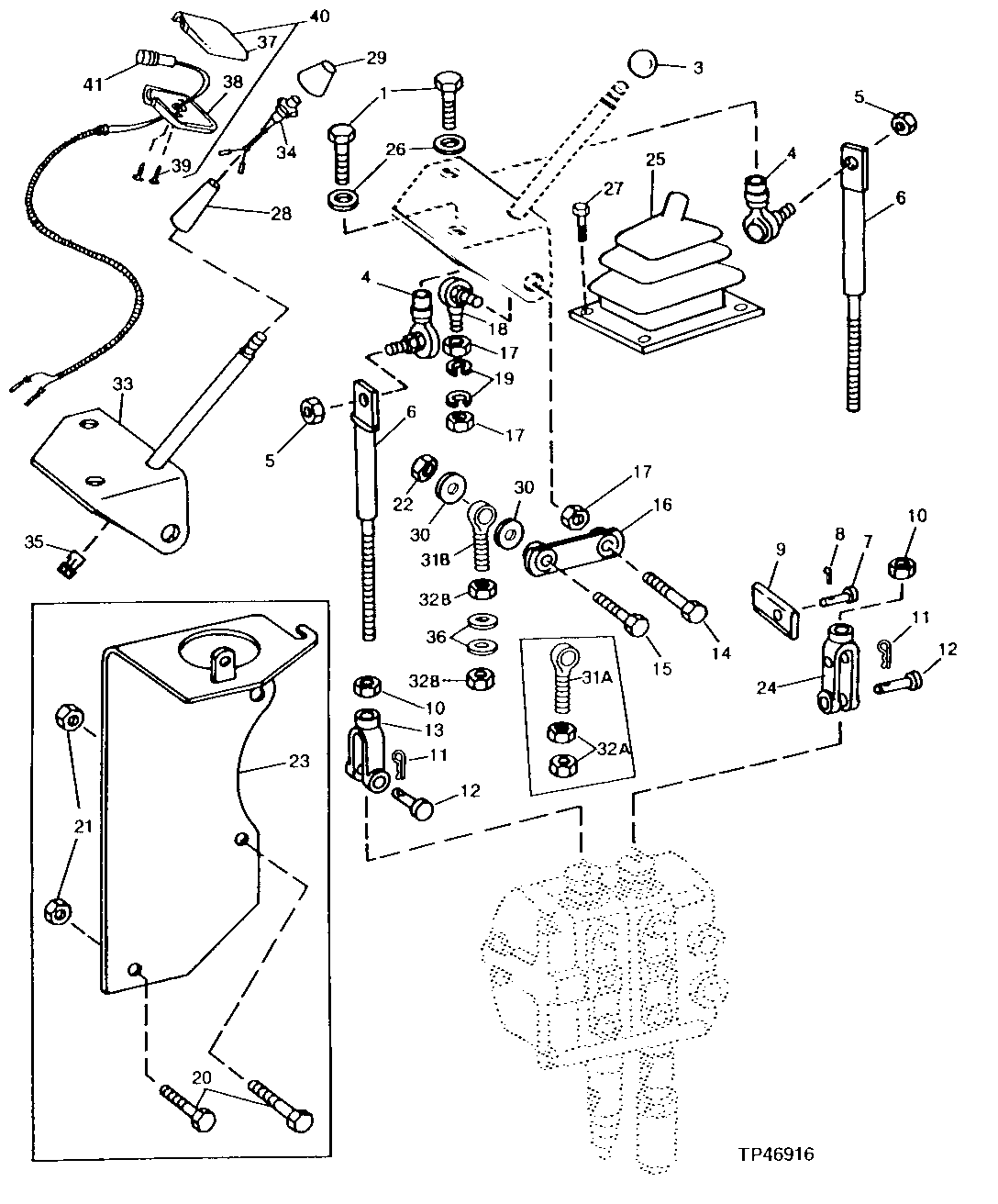

LOADER CONTROL VALVE BUCKET LEVELING AND RETURN-TO-DIG LINKAGE [03H13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2551	2	Cap Screw	5/16" X 3/4"
2	AT71739	1	LEVER	-
3	T68099	1	KNOB	-
4	AT48548	2	Ball Joint	-
5	R11151	2	Lock Nut	-
6	T77076	2	LINK	-
7	45M7036	1	Pin Fastener	6 X 30 MM
8	11M7077	1	Cotter Pin	1.600 X 25 MM
9	T76771	1	STRAP	-
10	14H774	2	Nut	3/8"
11	R46528	2	Spring Locking Pin	(SUB FOR P43660, THIS APPLICATION)
12	-	2	Part 12	( C1067R - USE IF AVAILABLE)
12	R65563	2	Pin Fastener	(SUB FOR C1067R)
13	M81327	1	Yoke	-
14	19H2529	1	Cap Screw	5/16" X 1"
15	19H2529	1	Cap Screw	-
15	19H3006	1	CAP SCREW	5/16" X 1-1/2"
16	AT65257	1	LINK	-
17	14H808	3	NUT	5/8"
18	AT75688	1	BALL JOINT	(SUB FOR AT57034) (ALSO ORDER 24H1367)
19	24H1368	2	Washer	21/32" X 1-5/16" X 0.090"
20	19M7403	2	Cap Screw	M12 X 35
21	14M7275	2	Nut	-
22	R11151	1	Lock Nut	-
23	AT71738	1	SUPPORT	-
24	T76772	1	YOKE	-
25	AT101909	1	BOOT	(SUB FOR AT66174)
26	24M7232	2	Washer	8.700 X 17 X 2 MM
27	21M7285	4	Screw	M6 X 12
28	T106453	1	KNOB	-
29	T101156	1	BOOT	(COLORED SCARLET)
30	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
30	24H1111	2	Washer	-
30	24H1305	2	Washer	-
33	AT141732	1	LEVER	(SUB FOR AT135546)
33	AT132901	1	LEVER	(SUB FOR AT118770)
34	AT101128	1	SWITCH	(REVERSER) (INCLUDES WIRE HARNESS)
35	RE12363	1	Electrical Connector Assy	-
36	24H1292	2	Washer	-
37	-	1	Part 46	-
38	-	1	Part 47	-
39	37H95	2	Screw	-
40	AT171550	1	Knob	(SUB FOR T126974 AND T126975) (INCLUDES (2) 37H95)
41	AT135527	1	SWITCH	(CLUTCH DISCONNECT) (INCLUDES WIRE HARNESS)
31A	T70872	1	EYEBOLT	-
31A	T70872	1	EYEBOLT	-
31B	E13291	1	EYEBOLT	-
32A	14H807	2	Nut	7/16"
32A	14H807	2	Nut	7/16"
32B	14H1076	2	Nut	-
