Открытый узел

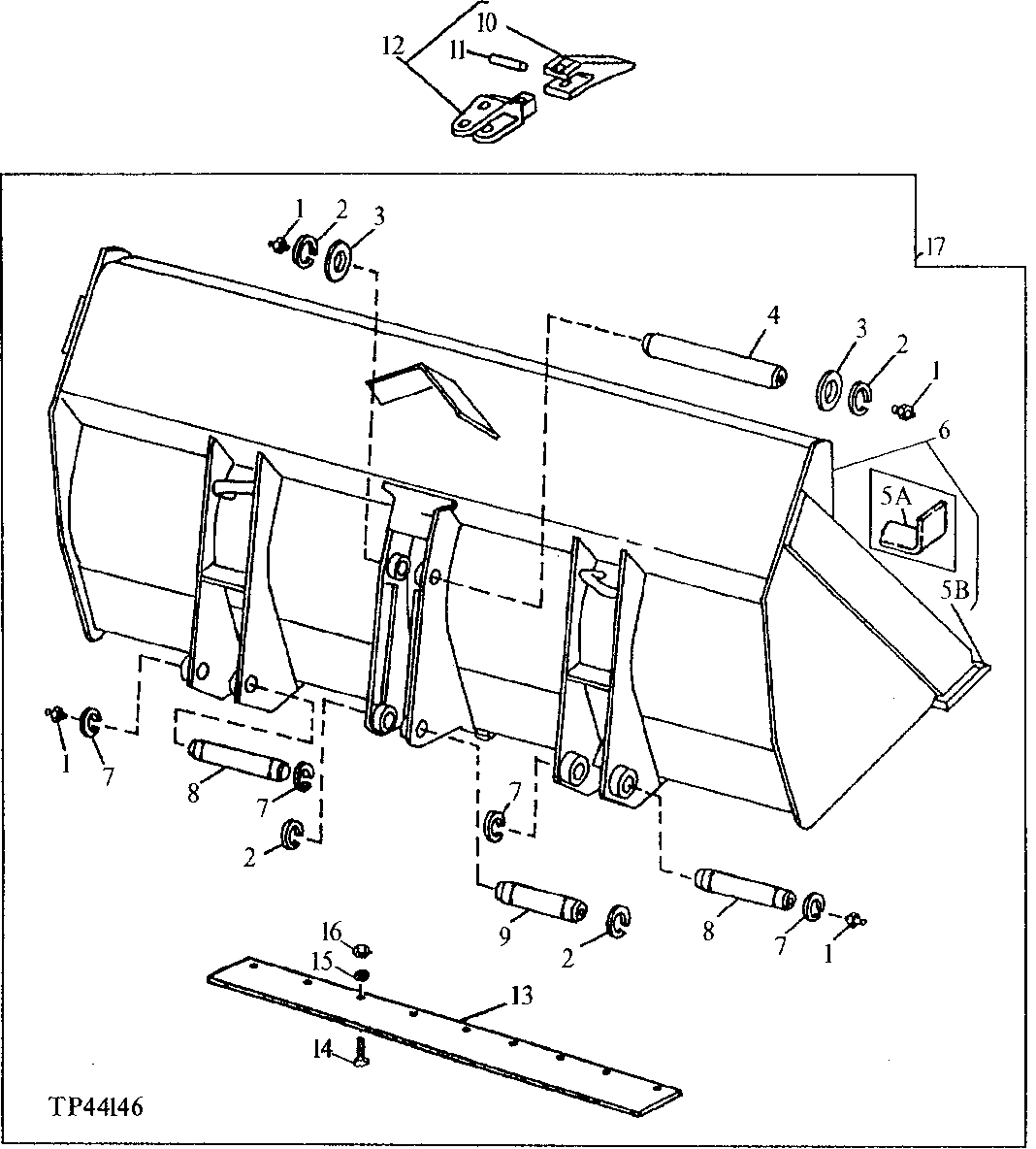

LOADER BUCKET 1.15 CUBIC METER (1-1/2 CUBIC YARD) LOADER BUCKET 1.3 CUBIC METER (1.7 CUBIC YARD) [03H07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7759	2	Lubrication Fitting	-
1	JD7759	4	Lubrication Fitting	1/8"
2	40M7166	4	Snap Ring	50 X 2 MM
3	24H1594	2	Washer	2-1/16" X 2-3/4" X 0.134"
4	T69321	1	PIN FASTENER	(USE WITH 1.15 CUBIC METER (1-1/2 CUBIC YARD) BUCKET)
4	T120356	1	Pin Fastener	-
6	-	1	Part 10	(SUB AT117576 OR AT117678)
7	40M7180	4	Snap Ring	45 X 2.5 MM
8	T127747	2	PIN FASTENER	-
8	T75106	2	PIN FASTENER	-
9	T127437	1	Pin Fastener	(SUB FOR T120355)
9	T77067	1	Pin Fastener	(SUB FOR T69320) (USE WITH 1.15 CUBIC METER (1-1/2 CUBIC YARD) BUCKET)
10	U13449	7	TOOTH	-
11	T45155	7	SPRING PIN	-
12	-	7	Part 18	( AU40885 NO LONGER AVAILABLE) (SEE REPLACEMENT BUCKET TEETH)
13	T84194	1	Cutting Edge	AUXILIARY - FOR USE WITH PBT69309, (USE WITH (8) 09H1757, (8) 24M7241 AND (8) 14H1039)
13	T126774	1	Dura-Max Cutting Edge	AUXILIARY (USE WITH BUCKET MARKED AT118781 AND AT151731) (USE WITH (8) 09H1764, (8) 24M7241 AND (8) 14H1039)
13	U10321	1	CUTTING EDGE	(90" WITH SPECIAL ORDER BUCKET) (USE WITH (9) 09H1759, (9) 24M7241, (9) 14H1039)
14	09H1759	8	Bolt	5/8" X 2-1/4"
14	09H1764	8	Bolt	5/8" X 2-1/2"
14	09H1757	8	Bolt	5/8" X 2-3/4"
15	24M7241	8	Washer	17 X 34 X 4 MM
16	14H1039	8	Nut	5/8"
17	-	1	Part 29	( AT164531 NO LONGER AVAILABLE) 1.3 CUBIC METER (1.7 CUBIC YARD) (MARKED AT118781, AT151731 OR AT164531) (SUB FOR AT117576) (SUB AT197797)
17	-	1	Part 28	( AT164524 NO LONGER AVAILABLE) 1.15 CUBIC METER (1-1/2 CUBIC YARD) (MARKED AT117665, AT151325 OR AT164524) (SUB FOR AT117678) (SUB AT197796)
17	-	1	Part 27	1.15 CUBIC METER (1-1/2 CUBIC YARD) ( AT77550, MARKED AT66317, USE IF AVAILABLE)
5A	PBT69309	1	Dura-Max Cutting Edge	WITH HOLES (USE WITH BUCKETS MARKED AT66317 AND AT117665) (SUB FOR T69309)
5B	T142888	1	Dura-Max Cutting Edge	(USE WITH BUCKET MARKED AT151325)
5B	T124617	1	CUTTING EDGE	WITH HOLES (USE WITH BUCKET MARKED AT118781 AND AT151731)

LOADER BUCKET 1.15 CUBIC METER (1-1/2 CUBIC YARD) LOADER BUCKET 1.3 CUBIC METER (1.7 CUBIC YARD) [03H07]
