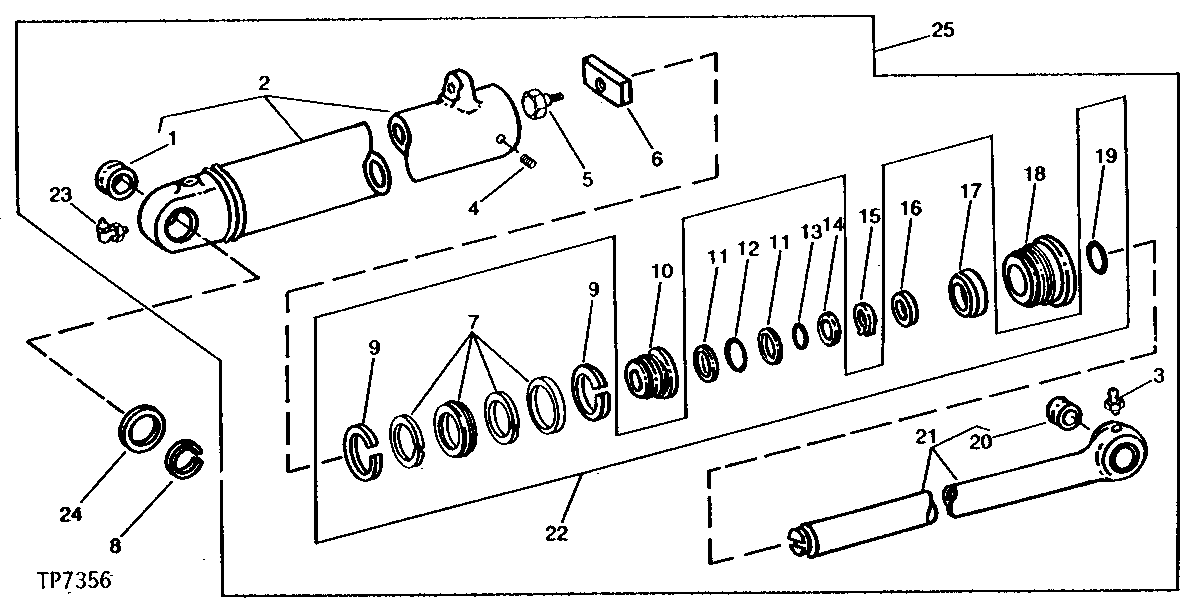

LOADER BOOM LIFT CYLINDER (710B) [03K03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R79009	1	BUSHING	(SUB FOR R72540)
2	RE13241	1	HYDRAULIC CYLINDER BARREL	R.H.
2	RE13242	1	HYDRAULIC CYLINDER BARREL	R.H.
2	RE13242	1	HYDRAULIC CYLINDER BARREL	L.H.
2	RE13242	2	HYDRAULIC CYLINDER BARREL	R.H. AND L.H.
3	JD7759	1	Lubrication Fitting	1/8"
4	22H842	1	SET SCREW	-
5	R70772	1	CAP SCREW	-
6	R72256	1	ADJUSTING STRAP	-
7	RE11919	1	SEAL	-
8	40M7066	1	Snap Ring	55 X 2M
9	U46592	2	WEAR RING	-
10	R78108	1	PISTON	-
11	R79120	2	BACK-UP RING	(SUB FOR R75554, THIS APPLICATION)
12	L2027CU	1	O-Ring	-
13	R41721	1	O-RING	-
14	R79191	1	BACK-UP RING	(SUB FOR R75330, THIS APPLICATION)
15	N10193	1	SNAP RING	-
16	R76801	1	PACKING	-
17	U41578	1	WEAR RING	-
18	R78107	1	HYDR. CYLINDER ROD GUIDE	-
19	U42734	1	SEAL	-
20	R79010	1	BUSHING	(SUB FOR R72541)
21	RE13243	1	HYDRAULIC CYLINDER ROD	-
22	AR105397	1	KIT	(SUB RE14771 AND RE30817)
23	JD7781	1	Lubrication Fitting	1/8"
24	T161036	1	Washer	(SUB FOR T69222 OR T125955) (SUB FOR T148178)
25	-	1	Part 28	R.H. (WHEN RE13239 IS NO LONGER AVAILABLE, ORDER INDIVIDUAL COMPONENT PARTS)
25	-	1	Part 29	R.H. (WHEN RE13240 IS NO LONGER AVAILABLE, ORDER INDIVIDUAL COMPONENT PARTS)
25	-	1	Part 30	L.H. (WHEN RE13240 IS NO LONGER AVAILABLE, ORDER INDIVIDUAL COMPONENT PARTS)
25	-	2	Part 31	R.H. AND L.H. (WHEN RE13240 IS NO LONGER AVAILABLE, ORDER INDIVIDUAL COMPONENT PARTS)
